VA9830S 300A Coulometer Battery Capacity Manager DC Voltage Current Meter 2.4-Inch Color LCD Monitor

VA9830S 300A Coulometer Battery Capacity Manager DC Voltage Current Meter 2.4-Inch Color LCD Monitor

Description:

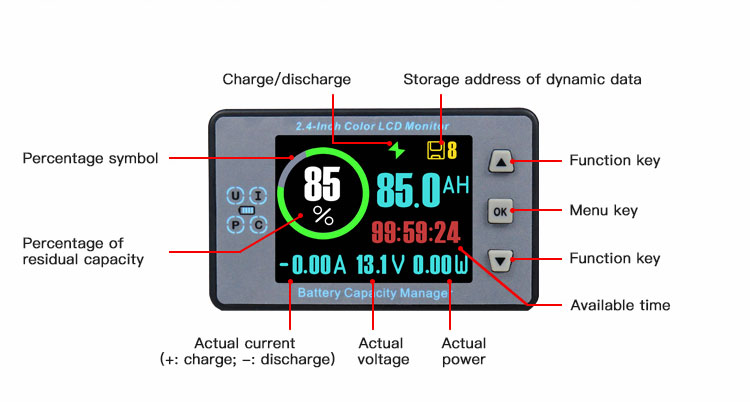

It is a multi-function meter. It can display real-time parameters such as voltage, current, power, residual capacity, usage time, etc. The meter adopts a 2.4-inch color LCD as a display. It displays data comprehensively and clearly, making it easy for users to observe.

Features:
- Suitable for all kinds of batteries
- 32-bit main control chip

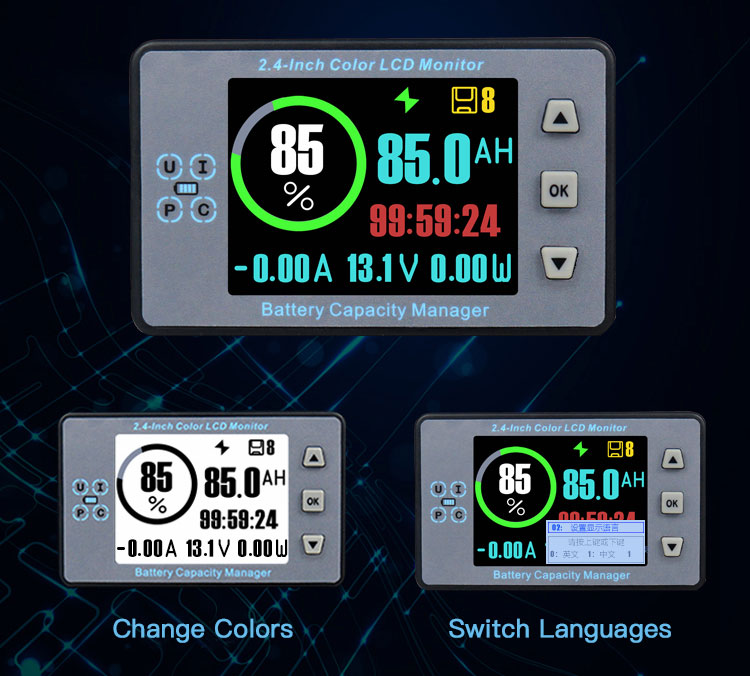

- 2.4" color LCD display
- All copper accessories: ultra-low power consumption
- Bidirectional current sensing
- Real-time capacity detection
- Silicone keys: comfortable to use
- The data is accurate, without temperature drift
- Voltage and current can be fine-tuned online
- 24h shows battery life

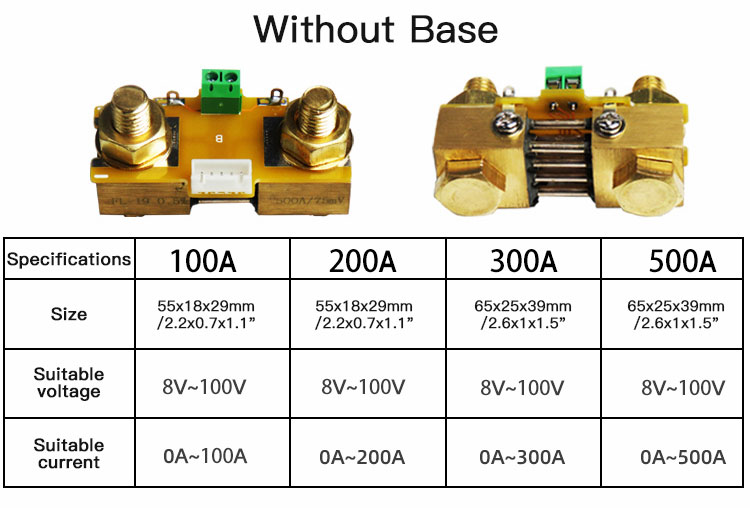

- Shunt and screws: The shunt and screw are made of pure copper, so they have good conductivity and less heat. The shunt has low power consumption, so it does not drain the battery too much in standby. In addition, pure copper parts, including gaskets and springs, ensure more accurate sampling
- Brass fittings: Ensure safe, convenient and accurate current acquisition
- PVC flame retardant shell: using quality and industrial grade ABS, it features impact resistance, low temperature resistance and so on. The shell made of PVC flame retardant material is safe and reliable
- Widely used: can be used to detect electric bicycles, batteries, power supply devices, photovoltaic systems, power consumption, etc.

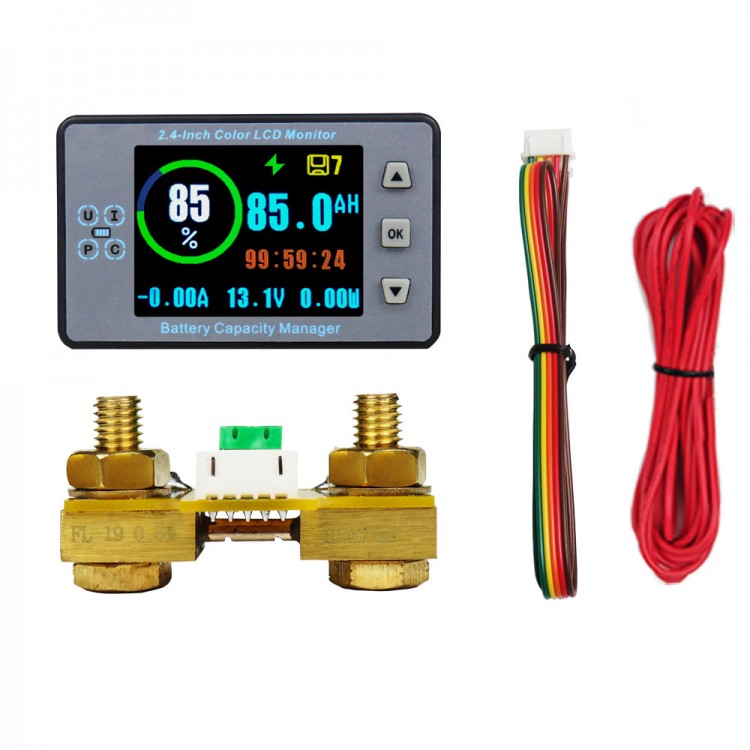

Package Included:
- 1 x Coulometer
- 1 x Current acquisition module

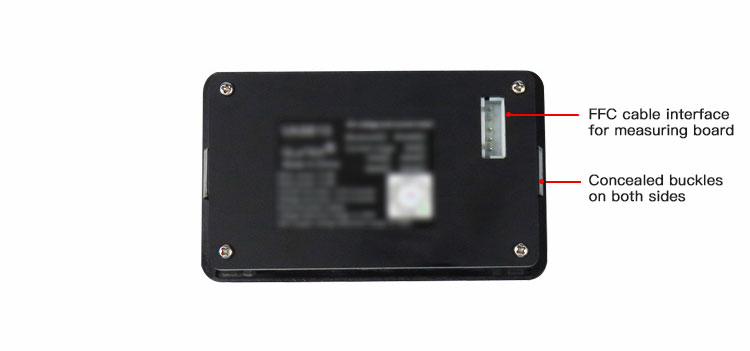

- 1 x 50cm/19.7" 5P FFC cable
- 1 x Voltage acquisition cable

Note:
- Bluetooth communication is optional. Users can view data and curves through WeChat's mini program. Through the WeChat mini program, users can also set parameters and operations.
- Batteries are not included.
