Vacuum Pump Kit with Electronic Valve Robot Arm Parts for Arduino Mechanical Arm DIY

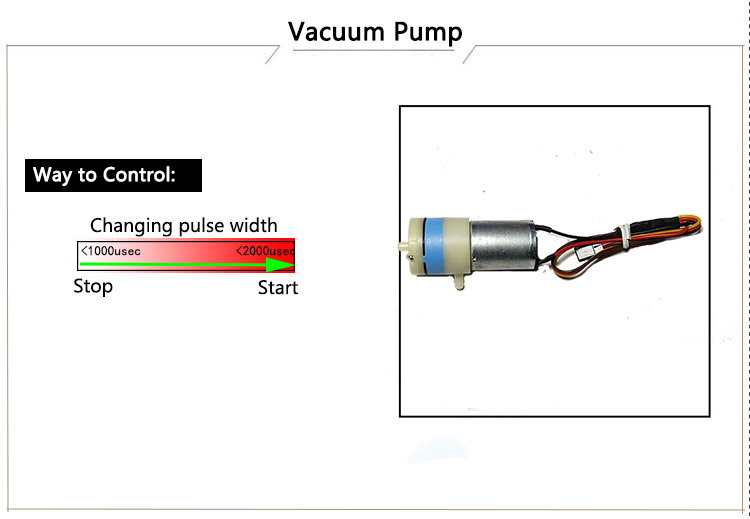

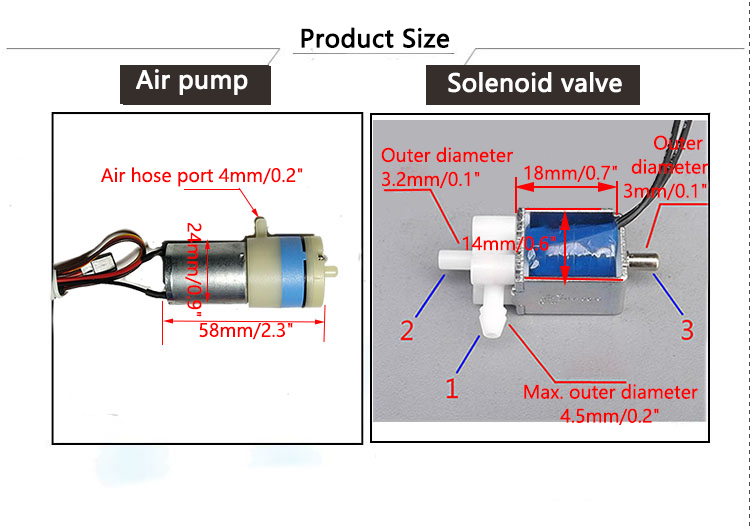

Vacuum Pump:

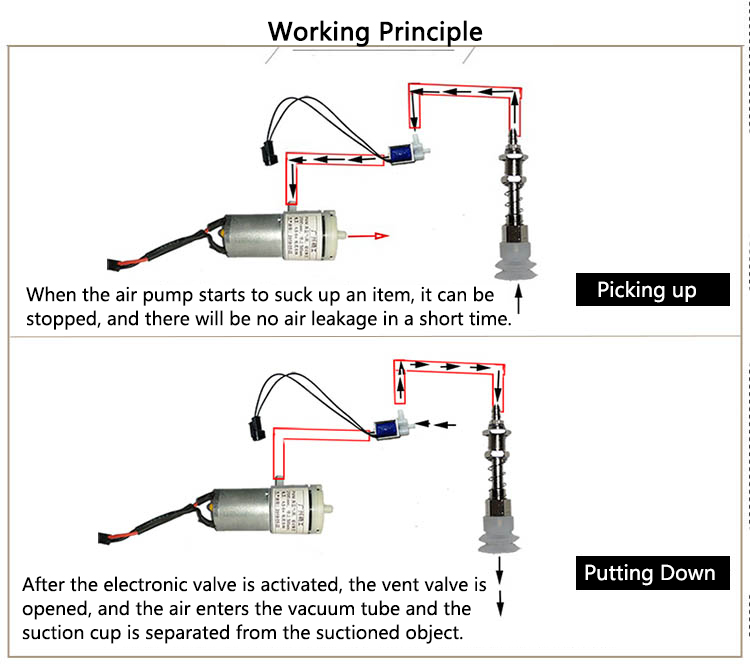

* Miniature vacuum pump (370 motor servo) with PWM electronic switch. It is controlled by pulse program in a direct way. Simple and convenient to program
* Rated voltage: DC4.5-6.6V
* No-load current: 0.15A
* Pressure range: 400-650mmhg
* Maximum vacuum: >-350mmhg
* Weight: 65G/0.1LB

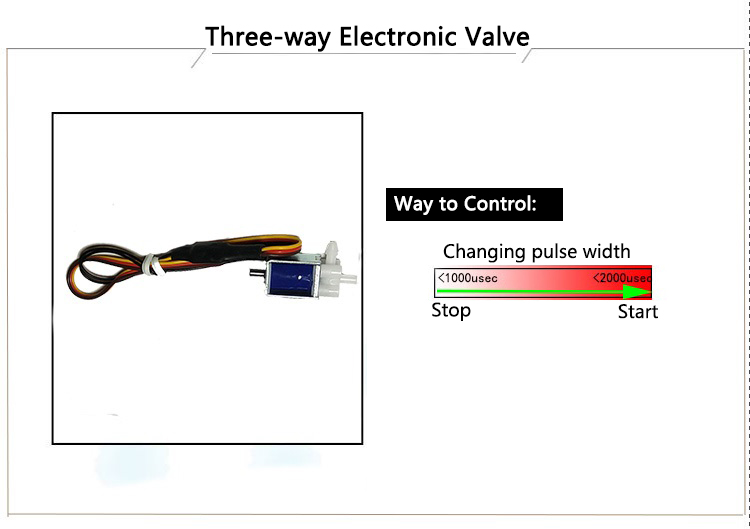

Three-way Electronic Valve:
* Rated voltage: DC6V
* Current: 220mA
* Suitable voltage: DC4.8-6.6v
* Power: < 2W
* Pressure range: 0-350mmhg
* Fluid used: gas
* Cord length: 15cm/5.9"
* Weight: 16G/0.04LB

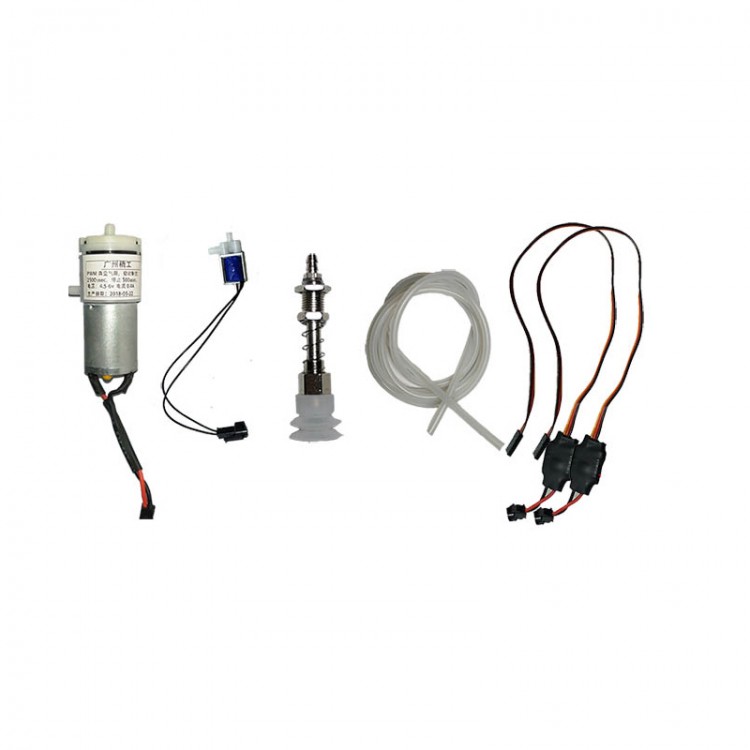

Package Included:
* 1 x Vacuum Pump (2-in-1)
* 1 x Three-way Electronic Valve

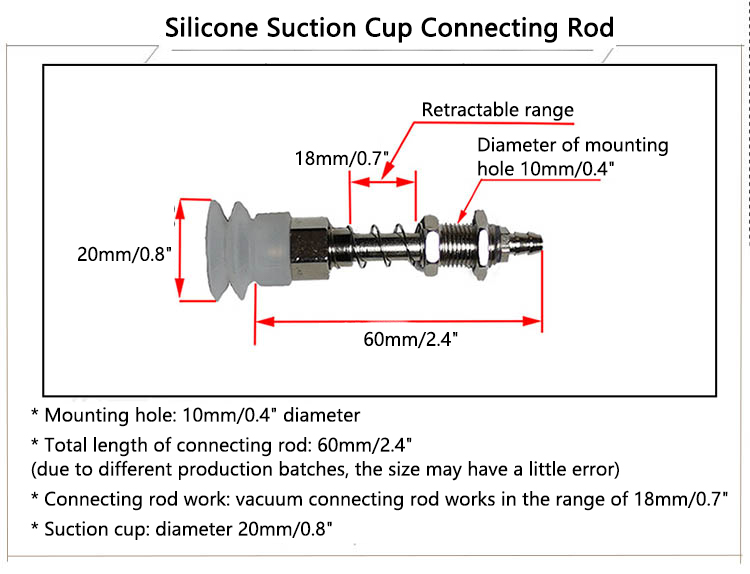

* 1 x Retractable Vacuum Connecting Rod with Suction Cup
* 1 x 800mm/31.5" Silicone Air Hose
* 2 x PWM Digital Electronic Switches
Attention:
* It is mainly used for learning, intelligent development, software testing, entertainment research, etc., instead of being used for industrial purposes.
* Users are required to acquire certain electronic knowledge and hands-on ability.
