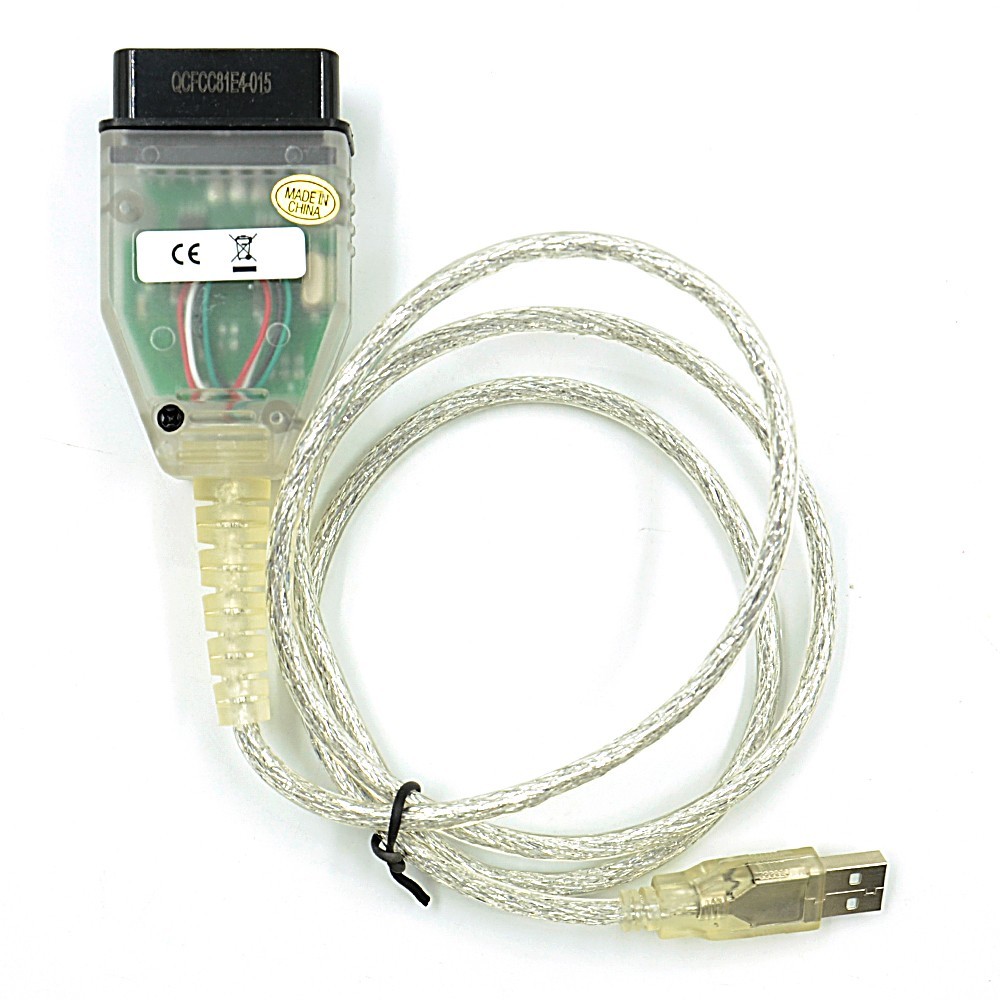

VAG CAN PRO VCP VCP Scanner Auto OBD BUS 5.5.1 UDS Software Flasher Programmer Test Equipment K-line S.W Version 5.5.1

VAG CAN PRO VCP VCP Scanner Auto OBD BUS 5.5.1 UDS Software Flasher Programmer Test Equipment K-line S.W Version 5.5.1

Main Features of VAG PRO:
- Unique features OCLF service procedures (One-Click-Function);
- inexpensive flasher for VAG;
- inexpensive flasher with support UDS controllers;
- ESP MK60EC1 decision coding blocks;
- a tool for a complete diagnosis MQB platform (Golf VII, Octavia III) Support to 01.2013;
- ZDC-loading containers in the electronic components;
- Unlock video in motion (VIM) on the MQB platform (Discover Pro and MMI-MQB);
- Coding controllers for PR-codes;
- "Login finder" - allows you to scan and logins in the CAN controllers UDS;
- Support for the new Polo in 2014 Facelift;
- Support for the new Passat B8;
- Full support of Audi TT-3 on the platform of the IBC;
- Full support for Skoda Fabia III
- Language: English, Czech, Danish, German, Hrvatski, Italian, Dutch, Polish, Russian, Spanish

New in Version 5.5.1:
- Support for new addresses entered in the MLB-Evo platform
- Update database-ODX (support for all models 2015)

Major Changes in the PR encoder:
- Now it is possible to keep PR-codes of a file
- PR-self-sustaining encoder may select codes known PR-analysis of current data stored in the ECU
- You can compare the data stored in the ECU against the calculated data, choose what you want to download.
- OCF "Activating automatic folding mirrors", the problem is illuminated space around the machine solved - Thanks Ciamardo / vcp-forum.de
- The new team in the Scripter: GetCardSerial, returns the current smart card number. You can use it to prepare a script that will run only on these smartcards.
- Enhanced TXT-coding, coding calculation is now faster APDUs.
- Updated data base DTC- Fixed problems with parameterization 7N0 cameras
- Fixed problems with parameterization 5M0 ...... F AFS modules
- OCF new section called "Apps", which is: Download the parameter data, coding for PR-
code, programmer Wabco, BCM, and so forth programmer..
- The new procedure OCF "FlashFile Dumper" - can extract content from Flash files (*.SGO, * .FRF, * .ODX) in a binary dump. Note: The source data format is not changed, so that if a Flash file kriptovat and compressed, the binary file will be the same.
- Fixed an issue in the Gateway Sheet MLB-EVO (B7 II, A4 B9) - not all ECU were available through the Gateway.
- Updated database of error codes (added more than 200 new codes, including the MQB / MLB-EVO platform)
- New Firmware v.1.1 for interfaces (04.0D / 02.04) v.2.0 (0A.04 / 0B.04) to support new protocols (TCP-IP) used on the MLB-EVO platform
- Fixed a connection problem with the address 46 (room unit) on the MLB-EVO (B9 A4 / Q7 4M) platform
- OCF Disable Start-Stop system is now supported PQ26 platform (Polo 6C, Fabia III, etc.)
- Reduced time delays during the loading of large data blocks in the non-flash modes.
- This contributes to a more stable connection when connected directly to the ECU (Direct Connect), popular among fans VAG.

Supported Cars:
- Audi
A2 2009-
A3 8P 2003-
A3 - platform MQB-
A4 model 8E wariant B7 (Engine, transmission, airbags, ABS, park) 2005-
A4 model 8K wariant B8 (UDS + TP2.0) 2008-
A5 model 8K (UDS) 2007-
A6 model 4F 2004-
A8 model 4E 2003-
Q3 (UDS) 2010-
Q5 (UDS) 2008-
Q7 (TP2.0 + UDS) 2006-
S5 model 8K
(R)S6 model 4F
R8 (UDS)
TT model 8J 2007-
- Mercedes: Sprinter (VW Crafter) - - Only the engine and immobilizer
- Seat
Altea
Leon MQB 2013-
Leon model 1P 2005-
Toledo model 5P 2004-
Exeo 2008- (Engine, transmission, airbags, ABS, park)
- Skoda
octavia model 1Z 2004 -
octavia platform MQB -
superb II B6 2008-
fabia model 5J 2007-
yeti 2009-
- Volkswagen
Crafter (immobilizer, engine)
Caddy model 2K 2005-
Eos
Golf V model 1K
Golf VI model 5K
Golf VII platform MQB
Golf Plus
Jetta II model 1K
Transporter / Multivan (Only after the CAN-BUS drive for storing data)
Multivan/Transporter GP model 7E (UDS) 2009-
Passat B6 model 3C 2005-
Passat CC-
Phaeton GP 2007-
Polo model 6R 2009-
Polo FL MQB 2014-
Scirocco III-
Touran-
Tiguan-
Touareg GP 2007-
Touareg NF 2010
- K-line ( KWP1281, TP/KWP2000)
VW Golf III, IV
VW Passat 3B
VW Bora
VW Transporter T5
VW New Beetle
VW Polo II,III,IV
Skoda Octavia I
Skoda Fabia i i II
Seat Leon I
Seat Toledo II
Seat Alhambra
Seat Ibiza II, III, IV
Audi A2,A3,A4,A6 K-Line

Notes for Audi A4:
- Option A4 8E B6 model
This model has a can-bus (TP1.6), but it is not connected to the diagnostic socket. The car is fully diagnosed on the K-line (VCP required interface + K). Used protocols KWP2000 and KWP1281 it.
- Model A4 8E, B7 option
This model has a CAN BUS TP2.0, but the diagnostic socket is only connected to the so- called CAN-Antrieb, i.e. Engine, transmission, airbags, ABS, Quattro drive.
In addition, a standard K-line. In other words, VCP fully supports the diagnosis B7 models, but only in the CAN-Antrieb. Other controllers are available through the K-Line and KWP2000 KWP1281 protocols.

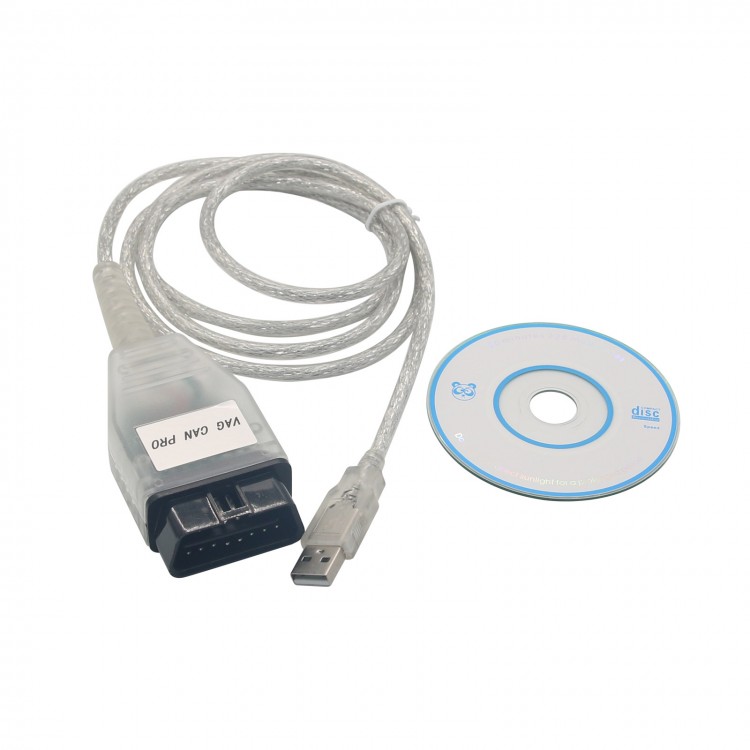

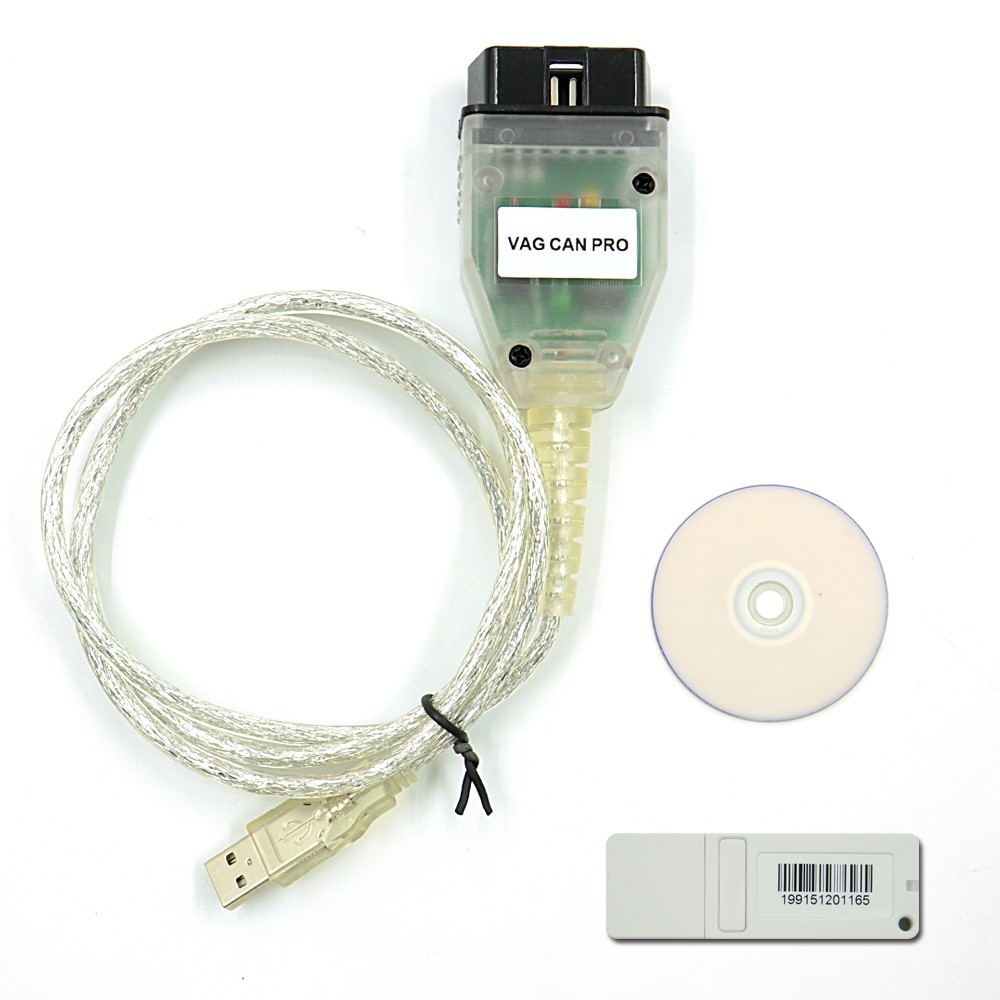

Package List:
- 1  x  VAG PRO
- 1  x  USB Encryption Dog
- 1  x  CD
