VAH75005S Multimeter Ammeter Voltmeter 0-120V 0-5A w/ Hall Sensor 1.8" Colorful Screen

VAH75005S Multimeter Ammeter Voltmeter 0-120V 0-5A w/ Hall Sensor 1.8" Colorful Screen

Description:
It is a multi-purpose meter that can display various physical parameters such as voltage, current, power, capacity, energy, temperature and running time.

The current is collected by the non-contact Hall sensor, which is safe, stable and convenient to connect. Over-voltage, under-voltage, over-current and over-temperature protection can be realized through the reserved relay interface. Its 1.8-inch colorful LCD is for easy and clear reading.

This Multimeter Ammeter Voltmeter is ideal for applications that require monitoring of output voltage and current, as well as charging and discharging batteries (batteries are not included in this package).

Features:
- Dual-directional Current Detection: For users who detect charging and discharging, it is convenient to detect bidirectional current without changing its wiring direction.
- High-performance Hall Sensor: Excellent hall sensor ensures convenient wiring and safe current collecting.
- Power-off Memory Function: When it is powered off, the values of AH and WH before power-off can be memorized, which is convenient for observation and measurement.
- Value Clear Function: Its time and AH value clear function does not affect the next measurement.
- AH value can be filled up, which does not affect the direct discharging metering.
- All-around Interface: It can display voltage, current, charging capacity, AH value, WH value, time and power.
- Output ON/OFF Function: With output shutdown function button, it is flexible to start or stop output.
- Multiple Protection: It is designed with protection including over-voltage, over-current and over-temperature protection.
- Online Calibration: It facilitates users to correct errors in time.
- Low Power Consumption: You can turn the LCD display off when it is needed to cut down its power consumption.

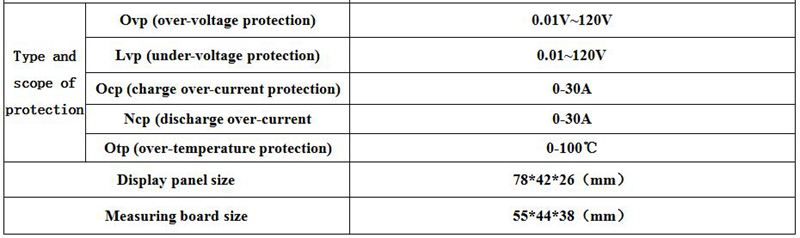

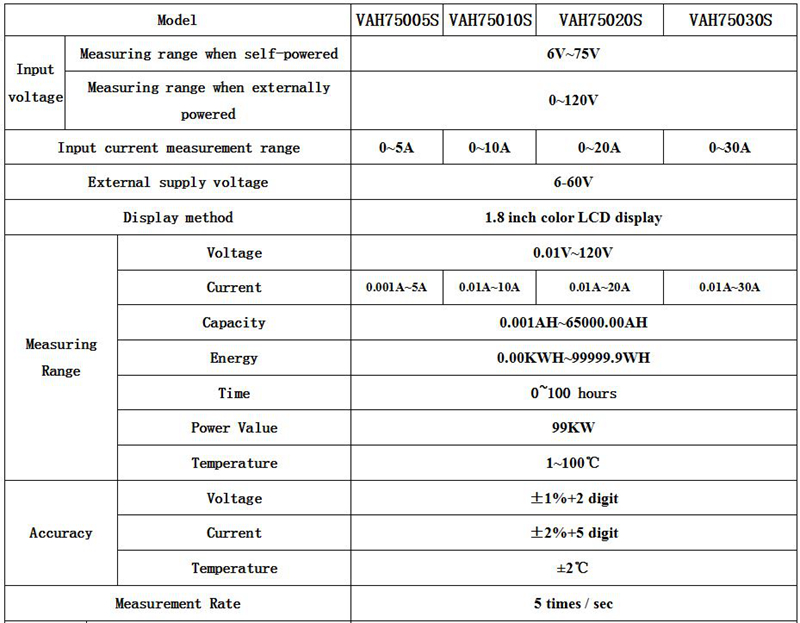

Technical Parameters:



Package Included:
- 1 x Display Panel
- 1 x Measuring Board

Note:
- The meter is designed without temperature measuring and communications functions. If they are in need, please contact us for extra prices.
- The meter current sampling uses a hall sensor to collect current, which is safer to use than those meters using resistive sampling. There is no heating problems. It offers accurate voltage measurement.
- Please contact us for user manual after purchasing. Thank you!
- Batteries are not included in this package.
