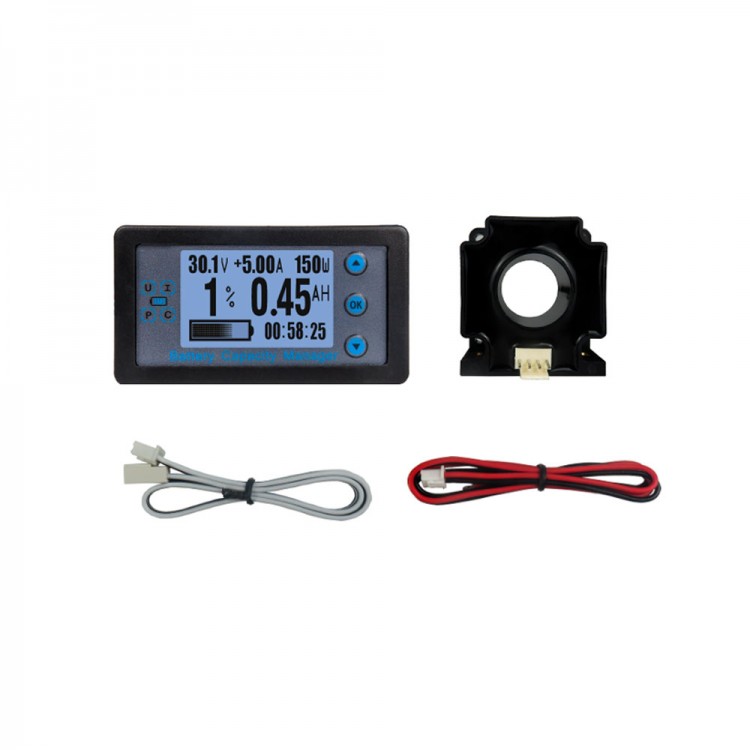

VAH9510 High Precision Coulometer with 200A Hall Sensor 12864 LCD Voltmeter Ammeter Battery Capacity Monitor
Description:
- This is a multifunctional instrument that can display various physical parameters such as voltage, real-time current, real-time power, remaining capacity, and usage time in real time. The instrument adopts a LCD display, which displays data comprehensively and clearly. This instrument is used for monitoring output voltage and current, as well as for charging and discharging batteries.
Features:
- Multifunctional Coulomb meter: It can display various physical parameters such as voltage, real-time current, real-time power, residual capacity, and usage time in real-time.
- Low current automatic screen stop, low voltage and low battery alarm function, 24-hour display of battery life.
- High quality ABS material is used, which has characteristics such as impact resistance and high temperature resistance. The PVC flame-retardant material shell is safe and reliable.
- Hall sensor, no need to break wires, simple wiring, bidirectional current detection for charging and discharging, and real-time capacity detection.
- Wide application range: suitable for electricity monitoring, photovoltaic system detection, power equipment detection, etc.
Specification:
- Voltage measurement range: DC 8-120V
- Voltage accuracy: ± 1%+2 words
- Current measurement range: 0.01~50A, 0.02~100A, 0.04~200A, 0.06~300A, 0.1~500A (optional)
- Current accuracy: ± 0.5%+2 words
- Capacity measurement range: 0.1~999AH
- Power value: 60KW
- Temperature range: -20~150 ℃ (with temperature function)
- Display mode: 12864 LCD display
- Power consumption: bright screen state 0.2W, resting screen state 0.05W
- Communication baud rate: 9600bps
- Measurement rate: 20 times/second
- Meter size: 79 x 43 x 26mm
- Hall sensor size: 40 x 40 x 20mm
Package Included:
- 1 x Coulometer
- 1 x Hall Sensor (Closed)
- 1 x Data Transmission Cable (50cm)
- 1 x H2.54 Red Black Cable (50cm)
Note:
- If you need the open-type sensor/Bluetooth mini program function/temperature acquisition probe, please contact us for additional purchase before payment.
