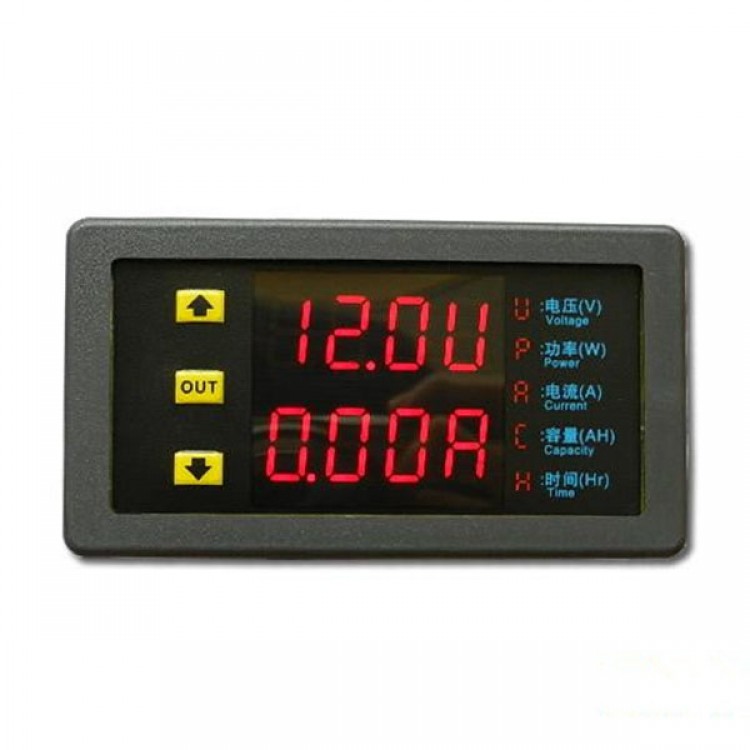

VAM90100P Voltage Ammeter Multifunction meter 0-90V 0-100A Dual LED Display

VAM90100P Voltage Ammeter Multifunction meter 0-90V 0-100A Dual LED Display

Product Description :
- Voltage current double shows, at the same time also can switch display power, charging capacity and time
- Voltage current double shows, at the same time also can switch display power, charging capacity and time
- With P series end with output shut off function keys, flexible open or shut off output
- Very flexible online calibration function, the user may itself calibration voltage current value
- Four LED digital tube, three measured values a unit instructions
- With pressure, owe pressure, flow, a power, charging and exceeds the protection function

 Technical index:
1.   2 wire input voltage range: :10V~90V
3 wire input voltage rang: 0~90V
2. Output current range:  0~100A
3.  Voltage current show: 4 LEDs,3 Measured value + 1 display unit
4 . Display resolution:  0.01V, 0.01A, 0.01W, 0.01AH, 0.01H
5.  Voltage accuracy: ±1%+2 bytes
6.  Current accuracy: ±2%+5 bytes
7.  Measuring rate: 5 times/s
8.  Protection type:  OCP(Over-current protection),OAH(Charging protection),
OVP(Over-voltage protection),OPP(Over power protection),
OFT(Overtime protection),LOP(Voltage protection)
9.  Protection set range: OCP Over-current protection:0.01~100A
OAH Charging capacity protection: 0.01AH~999AH
OVP Over-voltage protection: 0.01V~90V
OPPApower protection:0.01W~9.99kW(P mean W ,P. Mean kW)
OFT Overtime protection: 0.01 hours~99.9hours
10.  Shape dimension(mm): 79*43*52
11.  Installing hole (mm):76.5*39.2

Package list:
-  1 x VAM90100P Voltage Ammeter Multifunction meter 0-90V 0-100A Dual LED Display
