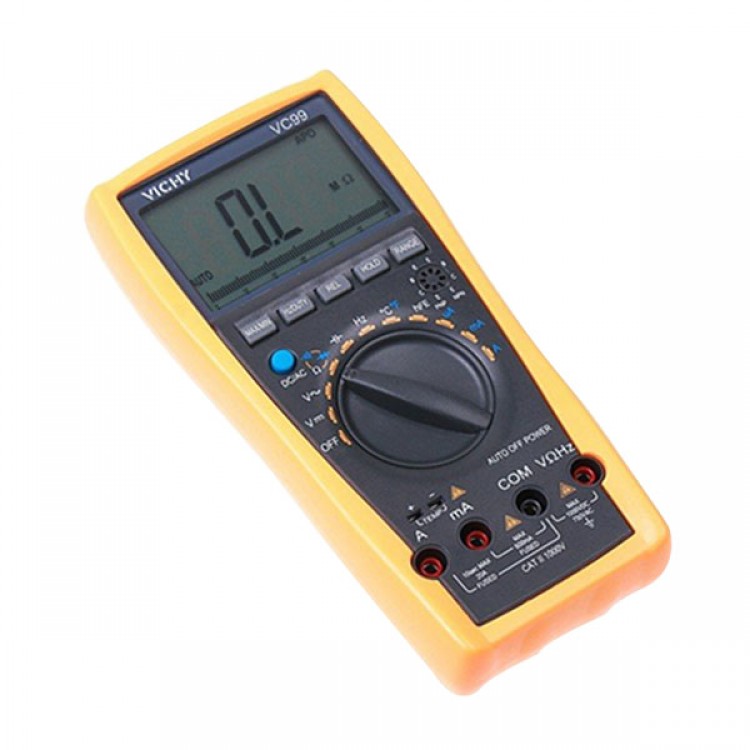

VC99 3 6/7 Multimeter Data Hold R C F Compare FLUKE 17B
Description:
- New type holster,streamline design;
- Large LCD makes the reading clearly;
- Strong antimagnetic and anti-jamming performance;
- Full function protection,;
- Unit symbol display,very easy to reading;
- Relative value,frequency/duty cycle measuring,data hold.Â
| Special function | VC99 |
| Diode test | â |
| hFE test | â |
| Continuity test | Approx. less than 30Ω±10Ω |
| Low battery indication | Approx less than 2.4V |
| Duty cycle measuring | â |
| Data hold | â |
| Auto power off | Approx.15minutes |
| Analog bar | â |
| Function protect | â |
| Input impendence | 10Mohm |
| Sampling rate | 3times/s |
| AC frequency response | 40-400Hz |
| Operation way | Manual or auto range |
| Max. display | 6000 |
| LCD size | 65x41mm |
| Battery | 3V AAAx2 |
| Power dissipation | Quiescent current approx. 2mA |
|
Basic function |
Range |
Basic accuracy |
|
DCV |
600mV/6V/60V/600V/1000V |
±(0.5%+4) |
|
ACV |
6V/60/600/1000V |
±(0.8%+6) |
|
DCA |
600uA/6000uA/60mA/600mA/6A/20A |
±(0.8%+3) |
|
ACA |
600uA/6000uA/60mA/600mA/6A/20A |
±(1.5%+10) |
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
±(0.8%+5) |
|
Capacitance |
40nF/ 400nF/4uF/40uF/400uF/2000uF |
±(3.5%+8) |
|
Frequency |
100Hz/1kHz/10kHz/100kHz/1MHz/60MHz |
±(0.5%+4) |
|
Centigrade temperature |
-40C~1000C |
±(0.75%+3) |
|
0F~1832F |
±(1.2%+3) |
