VDSL Tester Support 35b 30a 17a Profile For ADSL2+ ADSL VDSL2 DMM Test TM600P Basic Version

VDSL Tester Support 35b 30a 17a Profile For ADSL2+ ADSL VDSL2 DMM Test TM600P Basic Version

Description:
TM600P VDSL tester is specially designed for slid line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL, VDSL2, etc.) and maintenance. It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on.

TM600P VDSL Tester also introduces the Optical Power Meter and Visual Fault Locator function into the unit, as well as the TDR function (optional functions needs extra costs).

It is a mufti-function tester with smart size, true color LCD and powerful management software.

Functions:
- DSL Physical layer test
- Modem Emulation (Replace the user Modem completely)
- PPPoE Dialing (RFC1683,RFC2684,RFC2516)
- PPPoA Dialing (RFC2364)
- Telephone Function
- DMM Test
- Ping Function (WAN & LAN)
- Data upload to computer and software management
- Setup system parameter: backlight time, shut off automatically time without operation, press tone,
- Revise PPPoE / PPPoA dial attribute, user name and password; restore factory value and so on.
- Check dangerous voltage
- Optical Power Meter (Optional)
- Visual Fault Locator (Optional)
- Tone Tracker (Optional)
- TDR Cable Fault Locator (Optional)
- Support 35b 30a 17a Protocol

Key Features:
- Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2
- Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance)
- Supports Modem emulation and simulating login to Internet
- Supports ISP login (user name / password) and IP Ping test (WAN PING Test, LAN PING Test)
- Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)
- Connects to CO via alligator clip or RJ11
- Beep and LEDs alarm indications (Lower Power, PPP, LAN, xDSL)
- Data memory function
- LCD display, Menu operation
- Automatically shut off if no any operation on keyboard
- Compliant with all known DSLAMs
- Software management
- Simple, portable and money-saved

Optional Functions:
- Optical Power Meter (Optional)
- Visual Fault Locator (Optional)
- Tone Tracker (Optional)
- TDR Cable Fault Locator (Optional)

Note: If these functions are needed, please contact us to pay for extra money and get more information. Thank you!

Package Included:
- 1 x VDSL Tester
- 1 x Carry Case with Strap
- 1 x Charger
- 1 x Test Cord
- 1 x Direct Network Cable
- 1 x USB Cable
- 1 x CD (Management Software)
- 1 x Factory Test Report

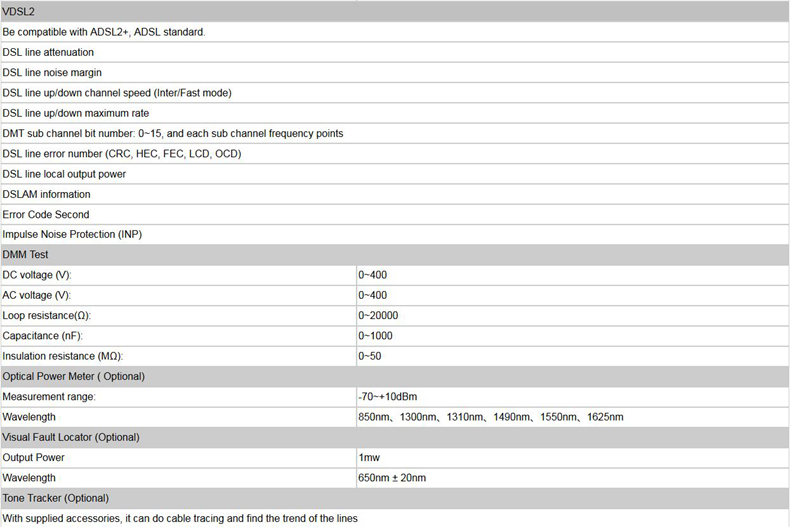

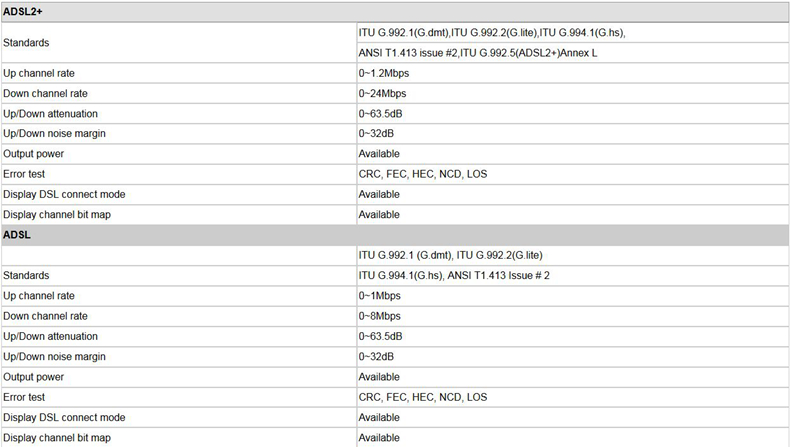

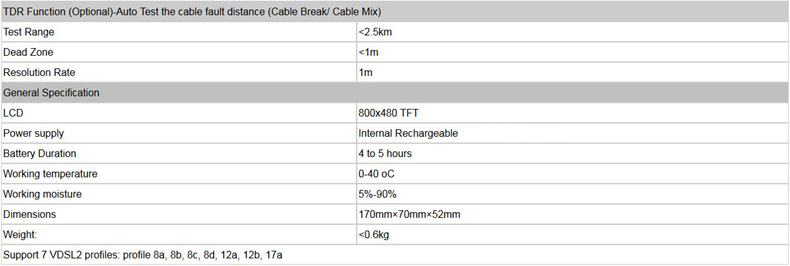

Specifications:
