Vehicles Trucks Beidou GPS Blocker GPS Tracker Blocker Anti-Tracking GPS-L1 BD-B1 WYDZ-1.5GHz-1W
Attention:
(1) Please connect the included antenna first, and then power on. Otherwise, the chip will be burnt out due to excessive reflected signals!
(2) It is recommended to use a 5V/2A adapter, the normal current is greater than 1A when working.
(3) The body adopts an all-aluminum box shell, which has good heat dissipation and is suitable for long-time work.
(4)Regarding the interference distance, the interference radius of an open room is 50m, and the wall penetration capacity is 2-3 walls.
Demonstration Video:
https://pan.baidu.com/s/1wlfVAoXEaSyGbOXBOjfZgg
Password: WYDZ
Module Parameters:
1. Power supply: TYPE-C cable (USB to TYPE-C)
2. Module frequency range: 1.5-1.6GHz

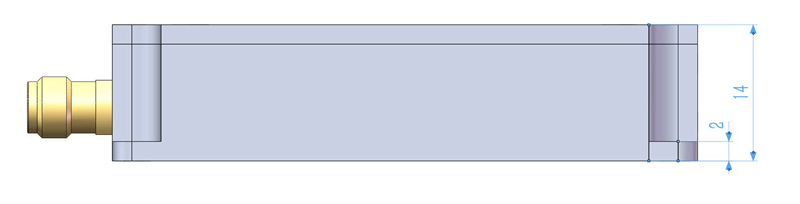

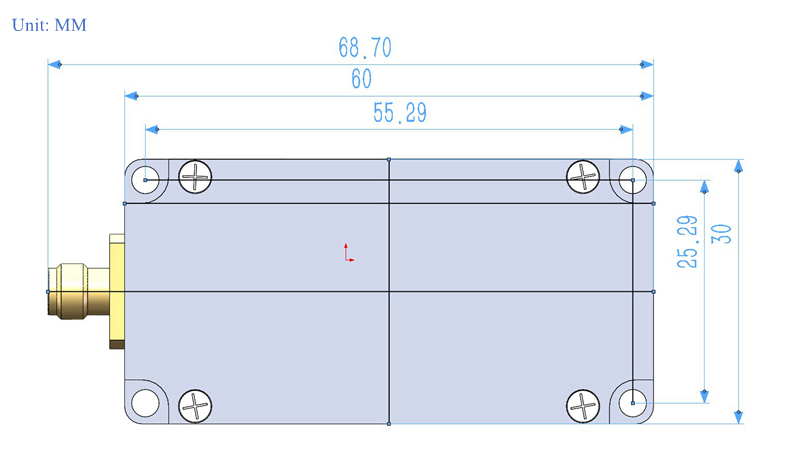

3. Volume: 6*3*1.4cm (excluding the size of SMA connectors, refer to the given mechanical drawing for details); Net weight: 80g (including host + TYPE-C cable + antenna)
4. Current: 2A (5V/2A power adapter is recommended)
5. P1dB=30dBm at 2.4GHz (1W)
6.Output interface: SMA female, output impedance: 50 ohms

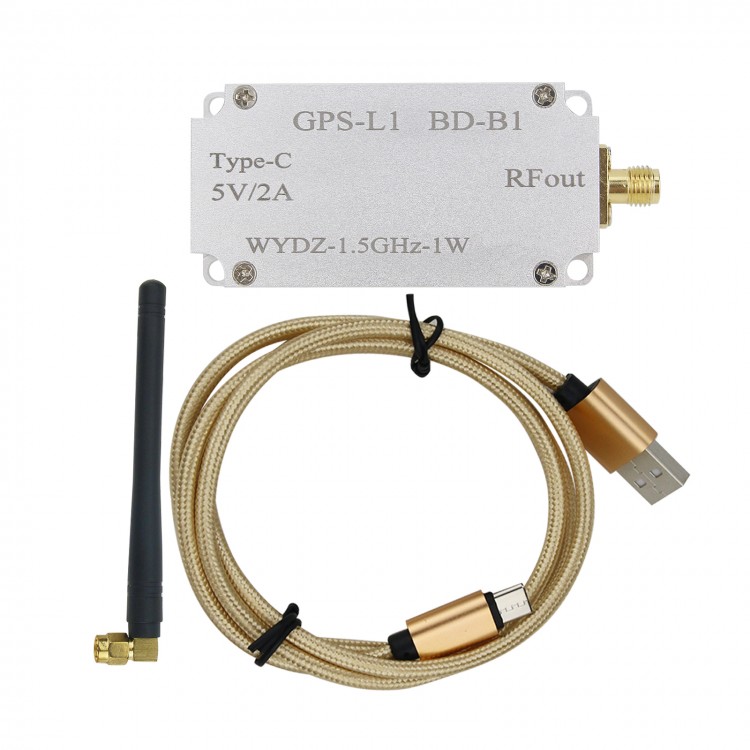

Package Included:
- 1 x Host with Aluminum Alloy Shell
- 1 x Type-C Cable
- 1 x Antenna

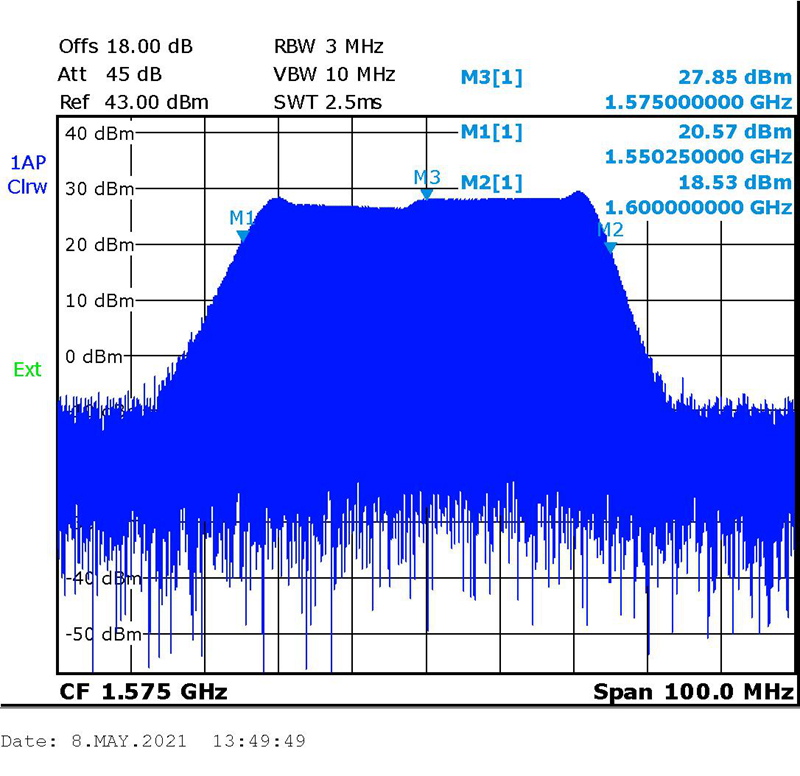

Measured Sweep Bandwidth Parameters:
