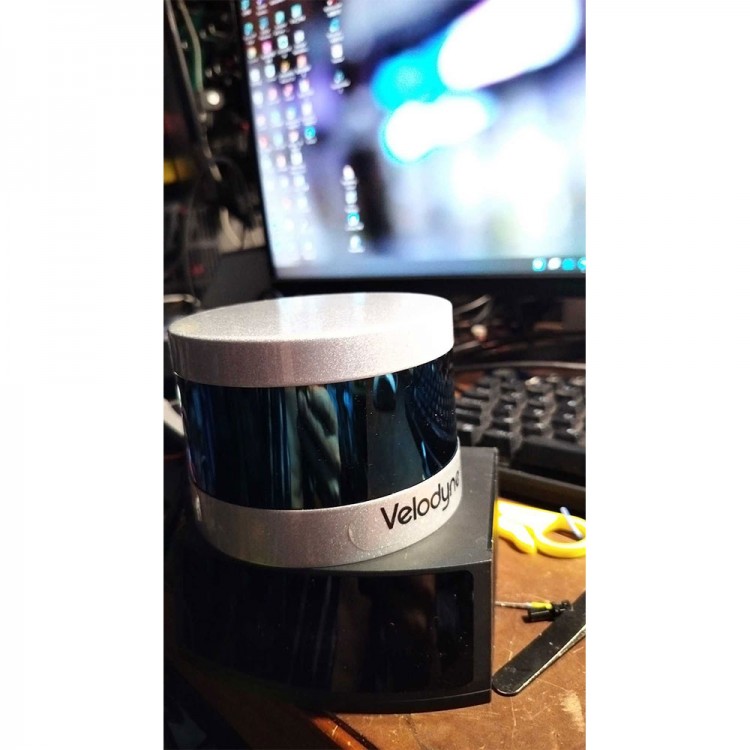

Velodyne VLP-16 Puck 16-line LiDAR Sensor Module (Second-hand & Blue Film Mirror) with 100m Range

Velodyne Lidar's Puck is a small and compact lidar that is performance and power optimized for usage across a variety of applications ranging from automotive, mapping, robotics, security, smart cities and more. The Puck is attractively priced and built on the foundations of Velodyne's leadership in lidar, enabling real-time, surround view, 3D distance and calibrated reflectivity measurements.

The Puck has a range of 100 m and generates up to ~600,000 points/second, across a 360° horizontal field of view and a 30° vertical field of view. It uses proven, Class 1 eye-safe 905 nm technology with substantial autonomous fleet validation, making the Puck a sensor of choice for lower speed autonomous vehicle (AV) applications. The Puck has best-in-class power, which enables operation over a wide temperature range. It's use of off-the-shelf components enables

enhanced scalability and attractive volume pricing. Like other Velodyne sensors, the Puck has world-class technical support available across North America, Europe & Asia from the world’s leading lidar company.

• 100 m range with compact form factor

• Proven 905 nm tech, with largest install base

• Top-of-the-line field-of-view

• Best-in-class accuracy and calibrated intensity

• Best-in-class power & temperature range

• Sensor-to-sensor interference mitigation feature

• Optional, enhanced short range detection

• Versatile, with attractive volume pricing

• 1 x Set of LiDAR Sensor

• Weight: 1.2kg
