Vertical Wind Turbine Model Vertical Wind Generator Three-Phase Permanent Magnet Generator for DIY

Vertical Wind Turbine Model Vertical Wind Generator Three-Phase Permanent Magnet Generator for DIY

Description:

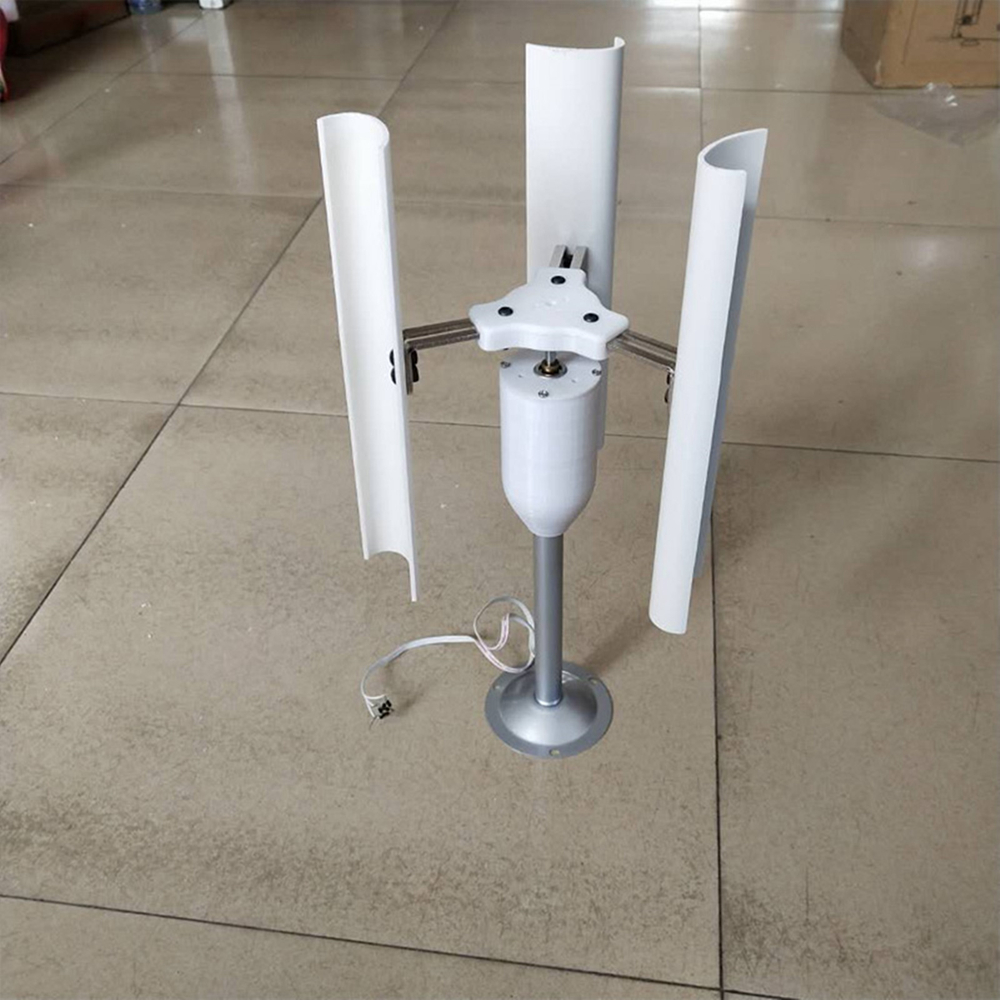

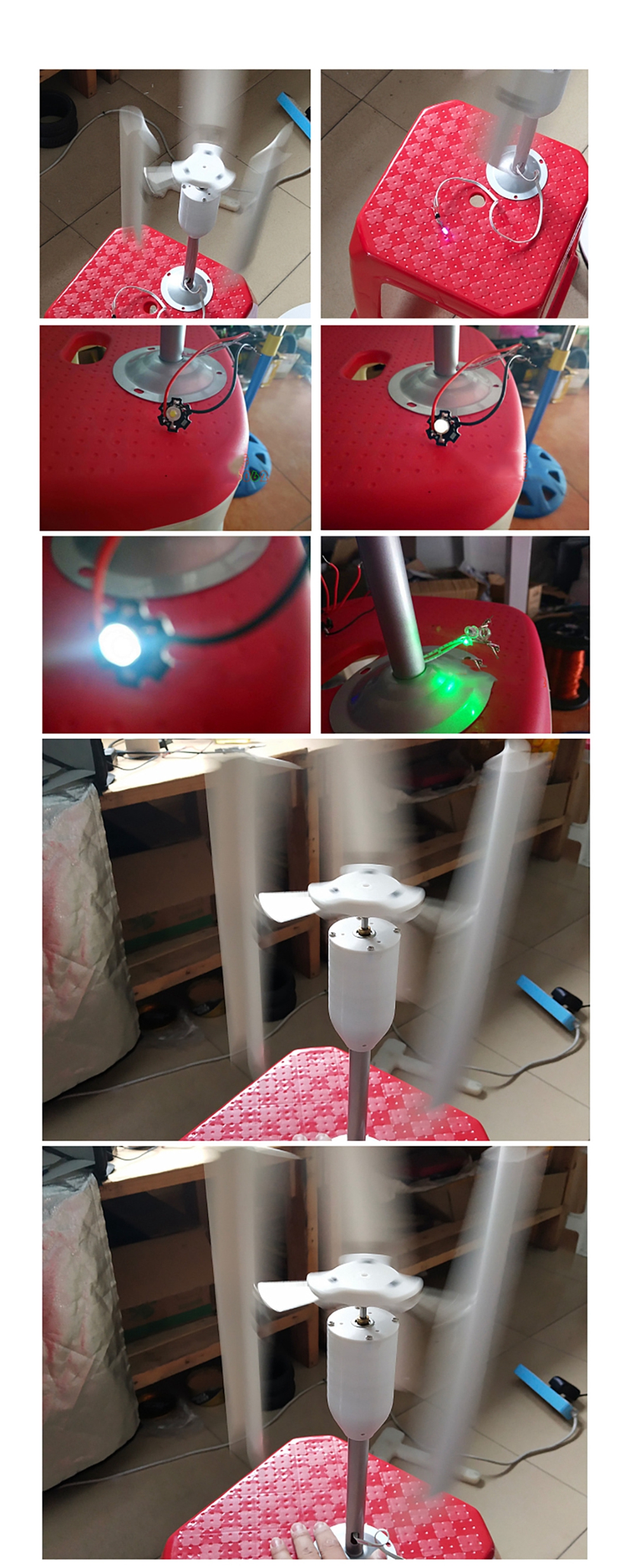

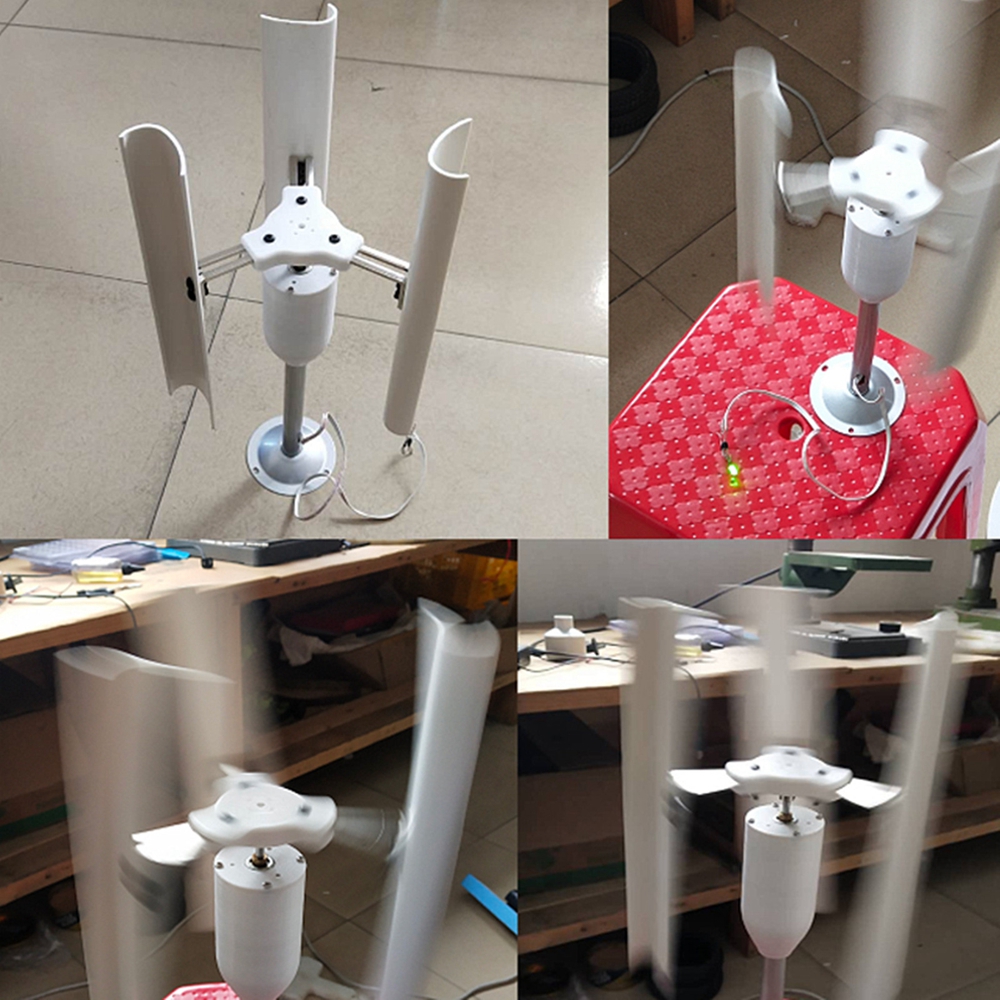

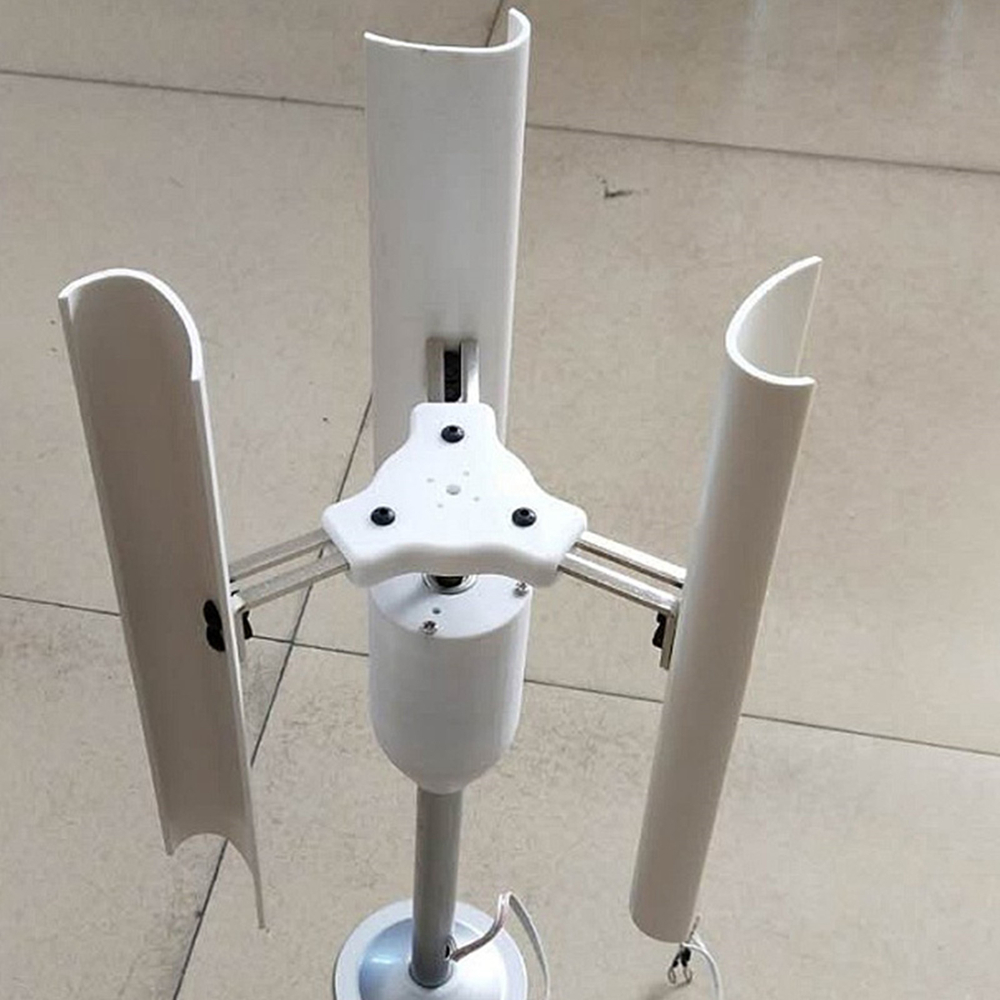

The vertical wind generator adopts a three-phase permanent magnet synchronous generator, without carbon brush, and sends out three-phase alternating current. The bottom outgoing line is three-wire, and the LED can be lit by gently pushing its wind blades. If it needs to be converted into direct current, you can use 6 rectifier diodes and a filter capacitor. The bottom aluminum alloy bracket with screw holes makes it convenient to install and fix. The blade beam adopts hardware stamping to ensure its strength. The blade adopts PVC popular design, with high conversion efficiency, corrosion resistance and UV resistance. Generator shaft is fixed with flange, to ensure accuracy and level. The rest of the parts is manufactured by 3D printing technology.

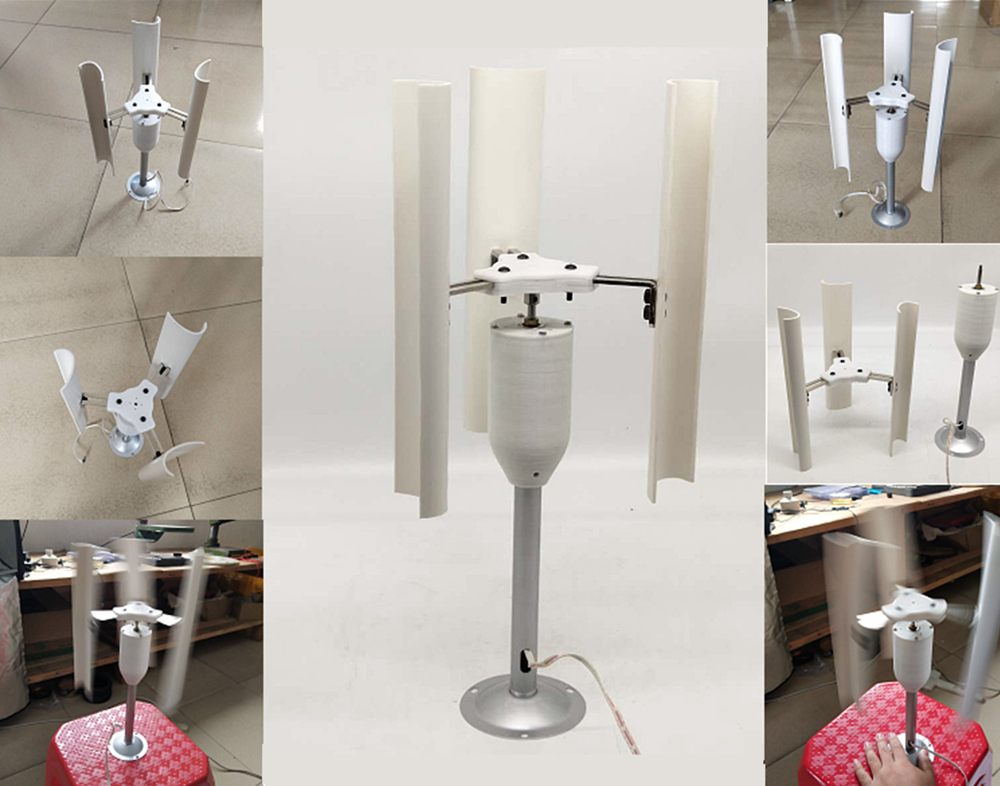

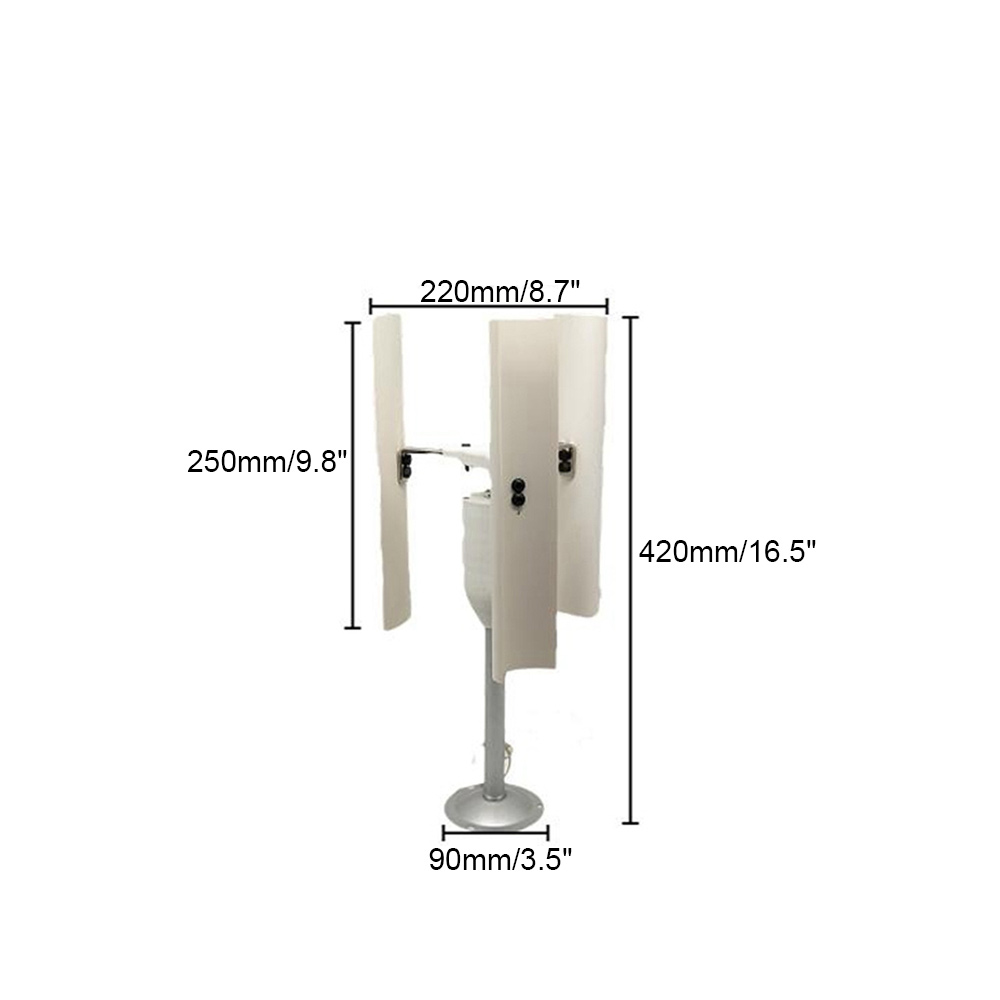

The wind turbine can be used for interior decoration, scientific experiment and model making. The height of the whole generator is 420mm/16.5", the distance from the edge of the fan blade to the axis is 105mm/4.1", the rotating diameter is 220mm/8.7", and the length of the blade is 250mm/9.8".

Features:
- Simple and portable design
- Convenient to install
- Can be used to generate electricity

Product Parameters:
- Product name: Vertical wind turbine model
- Product height: 420mm/16.5"
- Blade length: 250mm/9.8"
- Base diameter: 90mm/3.5"
- Rotation diameter: 220mm/8.7"
- Rated power: 20W
- Voltage: 1-20V
- Product weight: about 690g/1.5lb

Package Included:

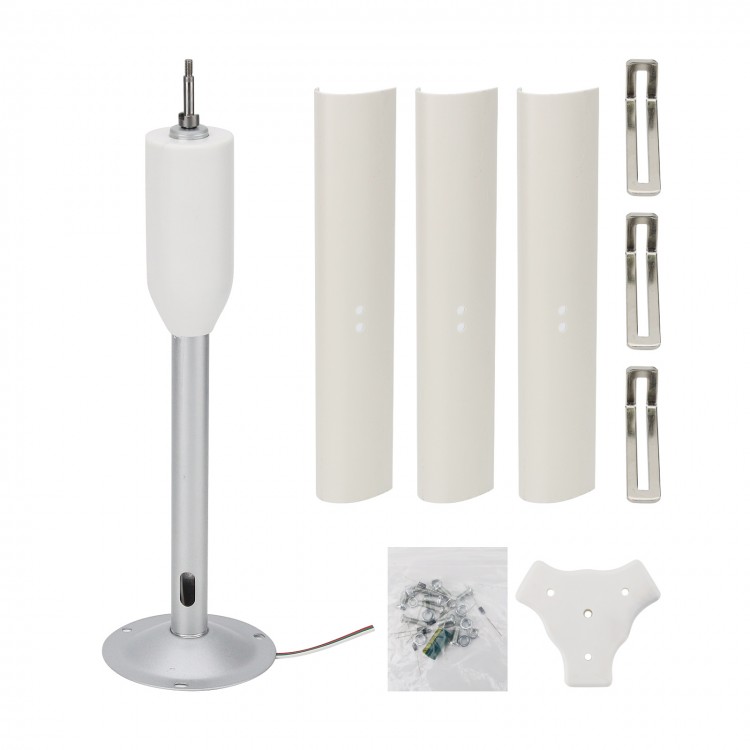

- 1 x Set of Wind Generator

Note:
- All the blades of the generator have been disassembled for transportation. Please assemble the blades by screws after receiving the item.
- Due to manual production, the above parameters are for reference only. Please allow slight errors which will not affect the use of the product.

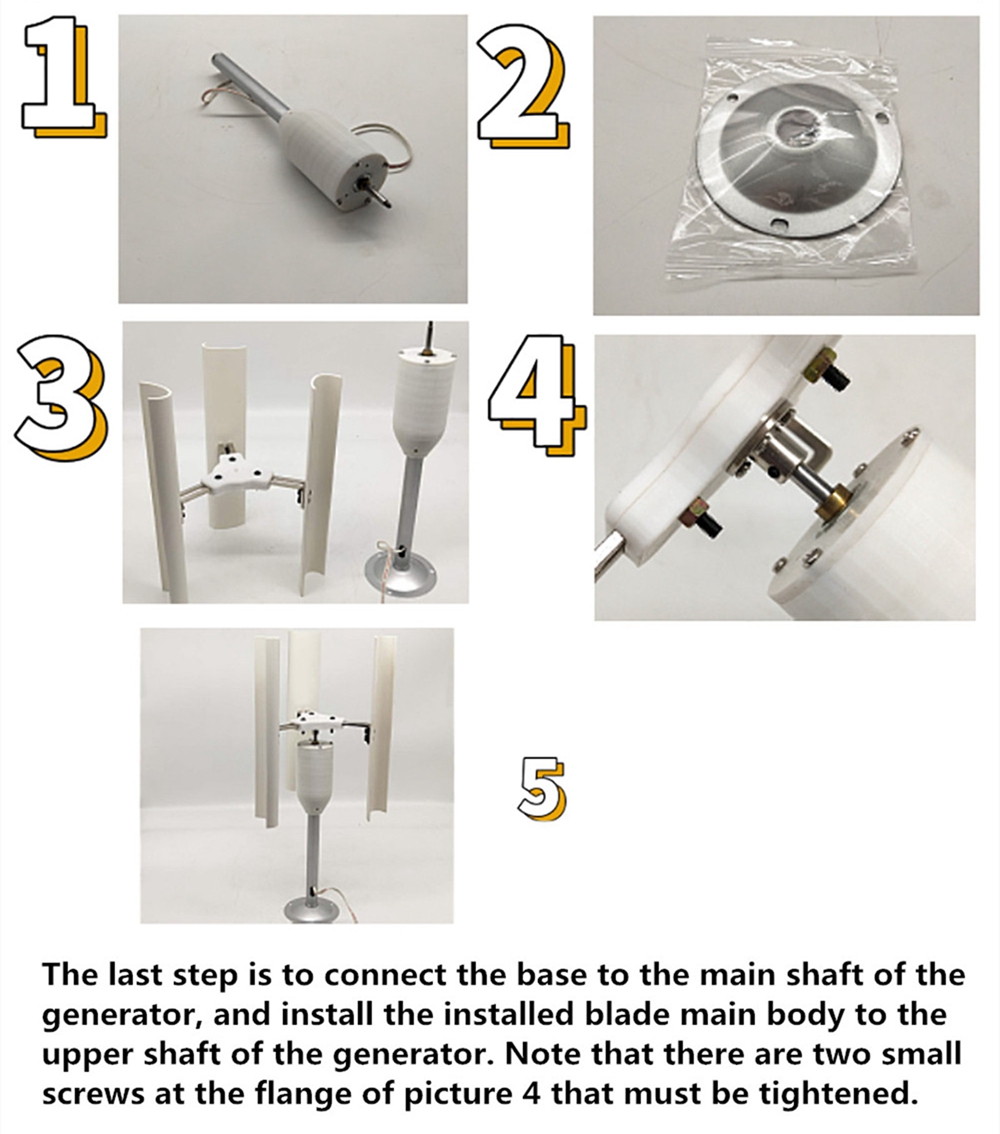

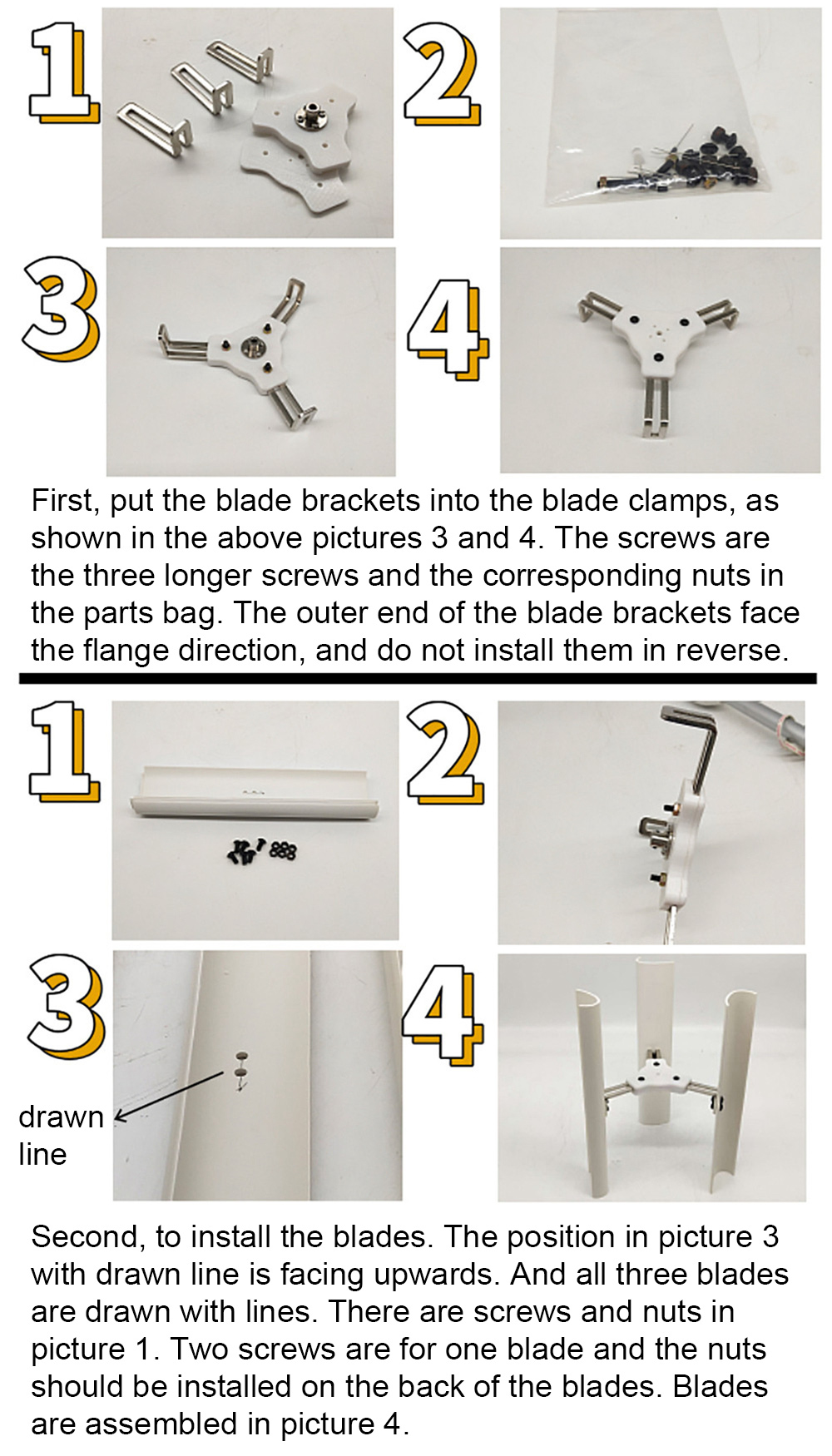

Installation Steps:
