VFD253 VFD Display Desktop Clock + Music Spectrum + Bluetooth 5.0 Receiver + 2-Way Audio Switcher

VFD253 VFD Display Desktop Clock + Music Spectrum + Bluetooth 5.0 Receiver + 2-Way Audio Switcher

Description:
VFD253 integrates multiple functions into a whole:
- As an audio spectrum analyzer: adopts dedicated green VFD display screen with 25 x 15 high resolution, guarantee the accuracy of each frequency band.

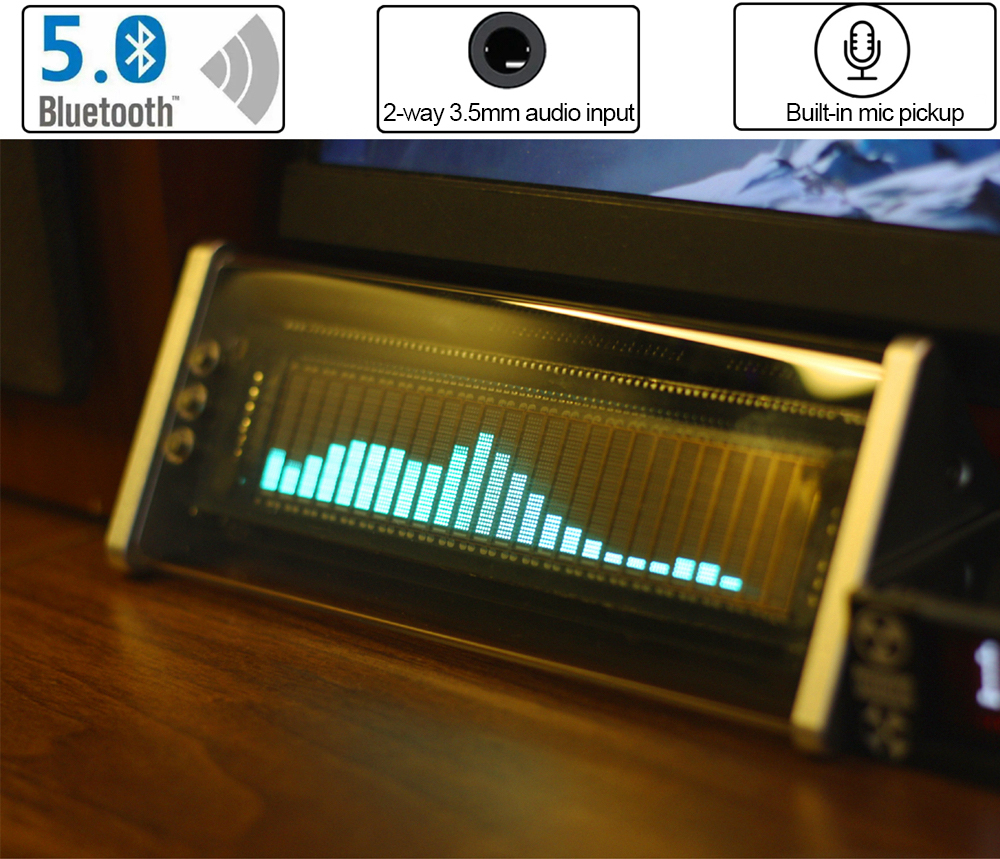

- As a Bluetooth receiver and audio switcher: besides microphone pickup, also with Bluetooth 5.0 and 2 groups of 3.5mm AUX input, works perfectly with your phone/PC/game player/amplifier/speaker etc.
- As a high-precision clock: using RX8025T built-in crystal oscillator whose clock accuracy is ±3ppm, year error within 1 minutes, very cool and interesting.

Wide frequency range & special AGC display: 80Hz-16KHz frequency sweep, high-precision display even can do frequency point test. Special AGC algorithm and customized output curve, ensure ideal visual effects even the input signal is in a small to large range, avoid that no display when input low and display in full screen when input high.

Many adjustable items & display effects: gain, brightness, falling speed of main light column, holding time and falling speed of the peak can be adjusted separately. 5 music spectrum display mode and 2 clock display mode,  all settings with power-off memory function, no need to set again after restarting.

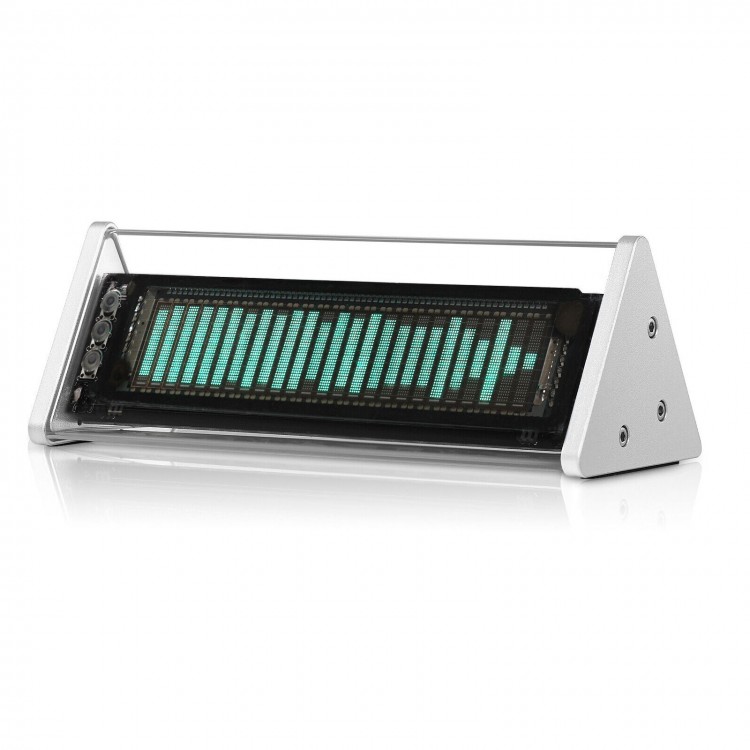

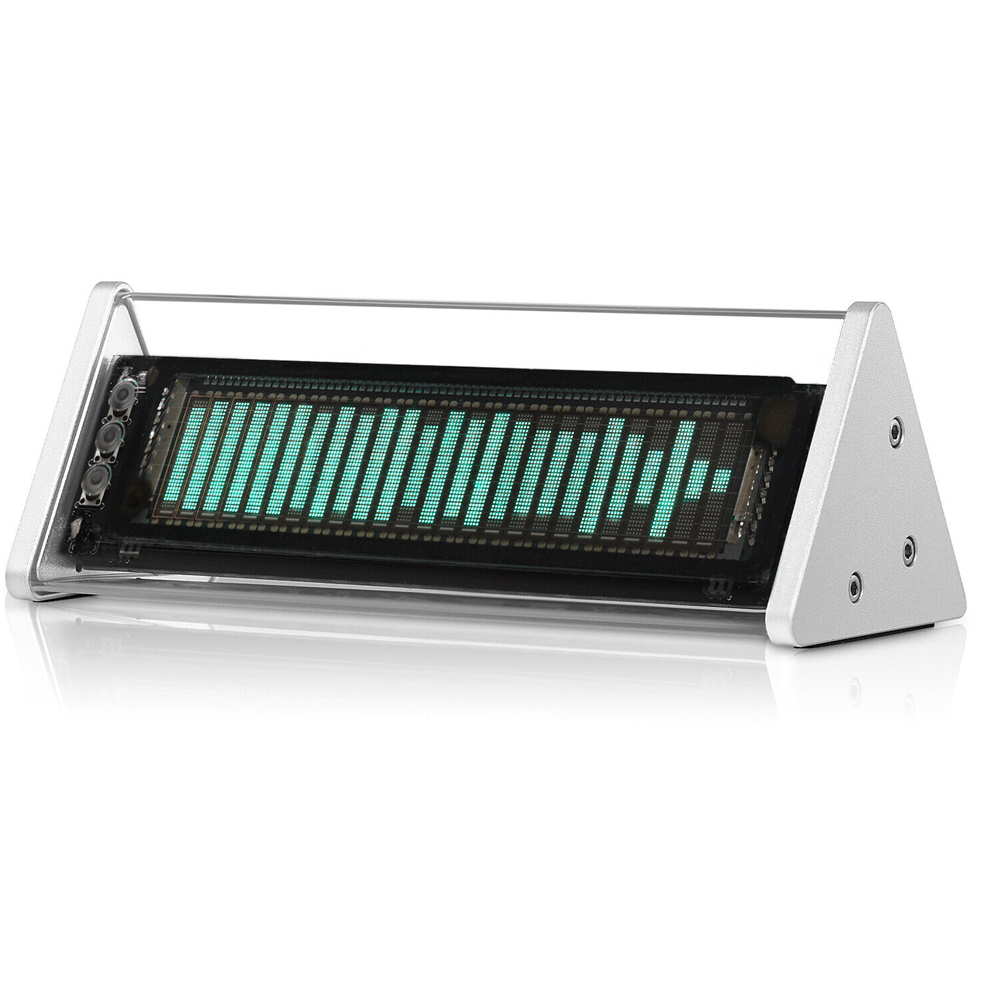

Attractive looking and convenient use: with remote control, easy to adjust all settings and see the music level status in real time and every slight change of sound.CNC machined aluminum and transparent acrylic case, both solid and beautiful, compact design not occupy your desktop space.

Specifications:
- Display screen: VFD (Vacuum Fluorescent Display)
- Resolution: 25 x 15
- Frequency range supported: 80Hz-16KHz
- Display item: music spectrum / clock

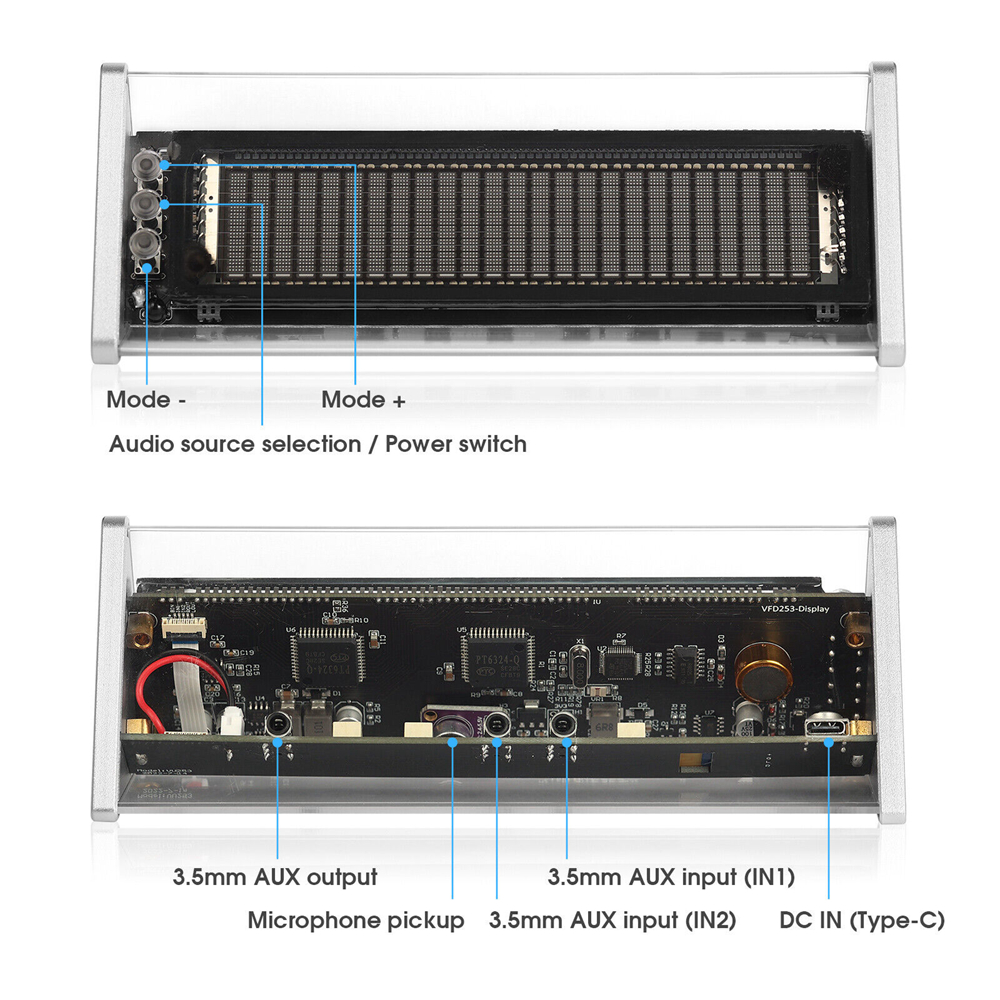

- Audio signal input: MIC / Bluetooth 5.0 / 2 groups of 3.5mm AUX
- Audio signal output: 1 group of 3.5mm AUX
- Brightness adjustment: 5 levels+automatic adjustment
- Gain adjustment: 5 levels
- Power-off memory function: support
- Remote control: support
- Working voltage: DC 5V
- Dimensions (WxDxH): 184 x 75 x 66mm/7.24 x 2.95 x 2.60in
- Net weight: 322g / 0.71lb

Working Modes:
1. Automatic mode (display music spectrum when music input, display clock mode when no music input)
2. Clock display mode (always)
- Clock display: 2 kinds

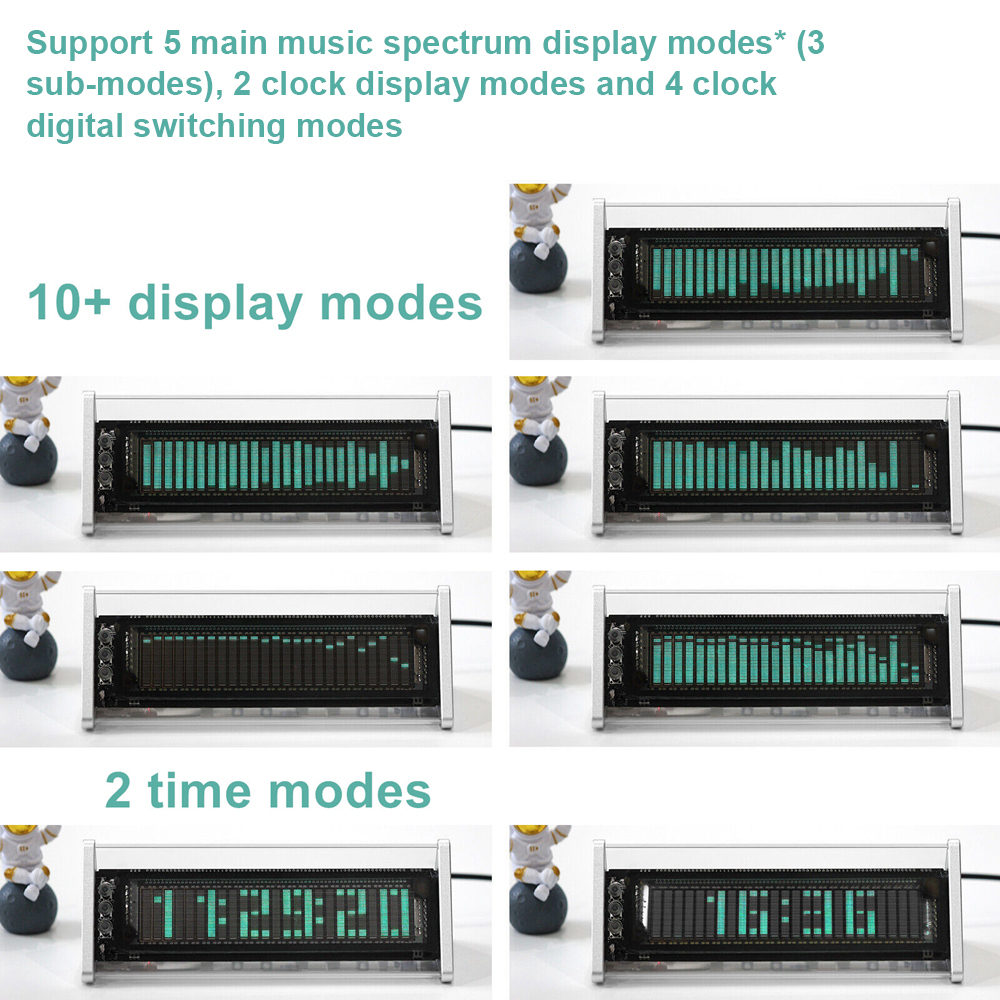

- Music spectrum display : 5 kinds
- Music display mode: AGC+customized output curve (Real output / Smooth output)
- Adjustable items: main light column falling speed / peak holding time / peak falling speed

Package Included:
- 1 x Finished VFD Audio Spectrum
- 1 x USB Power Cable
- 2 x Feet Pads (stick to the bottom)
- 1 x Remote Control
- 1 x User Manual

Note:
- Batteries (2*AAA) for the remote control are not included, please prepare by yourself.
- 3.5mm AUX1 and 3.5mm AUX2 cannot input at the same time, only one audio source channel (MIC / Bluetooth / IN1 / IN2) can input at a time.
