| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $23.01 | $22.54 | $21.84 | $20.90 | Contact US |
AD1955 DAC V3.0 New Audio Decoder Board Support 24Bit 192K DSD128 with JRC5534x4 + LM4562NAx1 Op Amps
$31.03
AD1955 DAC V3.0 New Audio Decoder Board Support 24Bit 192K DSD128 with JRC5532x3 Op Amps
$29.09
GP1247 253x63 VFD Display Module Dot Matrix Display VFD Matrix Display Module Removed from Car Radio
$19.76

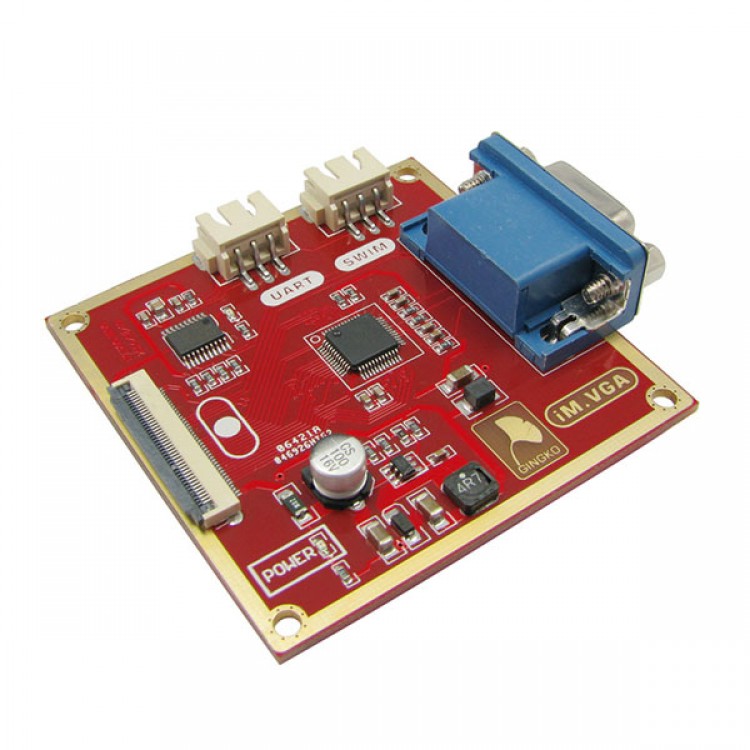

VGA Display Module iCore2 VGA Module STM32 Microcontroller Driven Graphics
Parameters:
- Module: IM_VGA Display module
- Interface chip: ADV7213 (or compatible with GM713)
- DAC features: three channels, 10 bits, max sampling rate 330MSPS
- Definition: 640*480------1920*1080
- Input bits: 16 bits RGB interface(RGB565 mode)
- Interface mode: 40 pins FPC connector (0.5mm distance), clamshell type
- Other features: on board STM8S003 processor, for module management
- Power supply features: DC 5-24V, lower than 50mA
- Module size: 60*60mm, four fixed holes
Package list:
- iM_VGA module x 1
- 10cm 40p flat cable x 1
- 15cm 40P flat cable x 1
