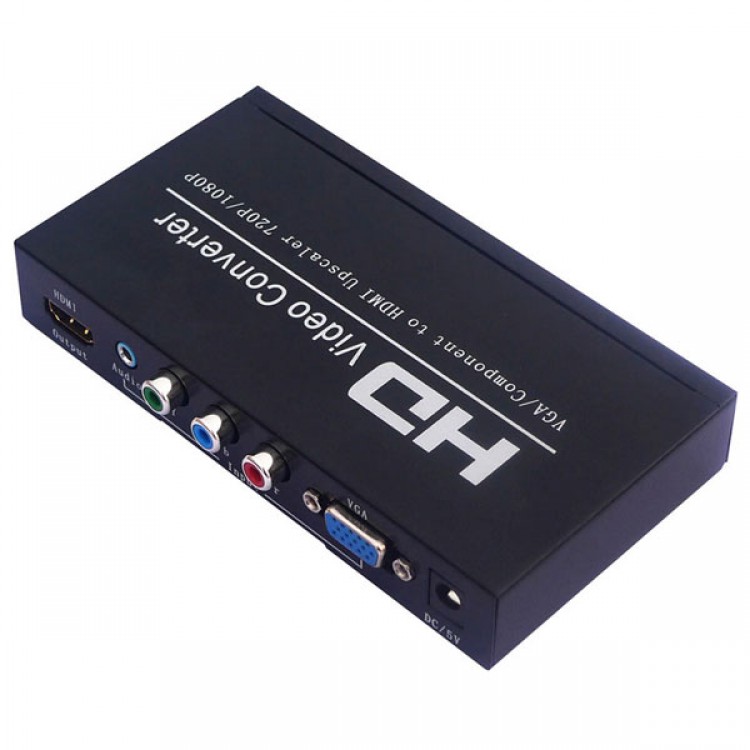

VGA + YPbPr Component to HDMI Converter 1080P Scaler Box HDV-336

VGA + YPbPr Component to HDMI Converter 1080P Scaler Box HDV-336


This is designed to upscale analog video signal from PC and DVD/Game console input source to digital HDMI output, up to 720p or 1080p. Besides video upscaler, the scaler box also converts input audio signal from L/R to digital formats, then output to HDMI combining with the video.

Features:
- Scales general PC resolutions to HDMI 1080p output.
- Scales general HD (480i ~ 1080p) resolutions to HDMI 1080p output.
- Original Scaler button control the output screen to any size.
- Auto detect the component and PC input resolutions format.
- Provides advanced signal processing with great precision. Colors, resolutions, and details.
- High quality, state of the art motion adaptive de-interlacing for 480i and 1080i input.
- High quality scaling technology for progressive input resolutions.

Specifications:
- Input: 1xPC,1×3.5mm PhoneJack,1x component
- Output: 1xHDMI
- Power Supply: DC 5V/1A
- Dimensions(mm): 140(D)x75(W)x25(H)mm
- Chassis Material: Mental
- Operating Temperature: 0°C~ 40°C
- PC input resolutions: 640×480@60/75/85Hz,800×600@60/75/85Hz,
1024×768@60/75/85Hz, 1280×720@60Hz,
1280×800@60Hz,1280×960@60Hz
1280×1024@60Hz,1360×768@60Hz,
1600×1200@60Hz,1920×1080@60Hz
- Component input resolutions: 480i, 576i, 480p, 576p, 720p50/60Hz,
1080i@50/60Hz,1080P@50/60Hz
HDMI output resolutions: 720p60Hz, 1080p60Hz
