Description:

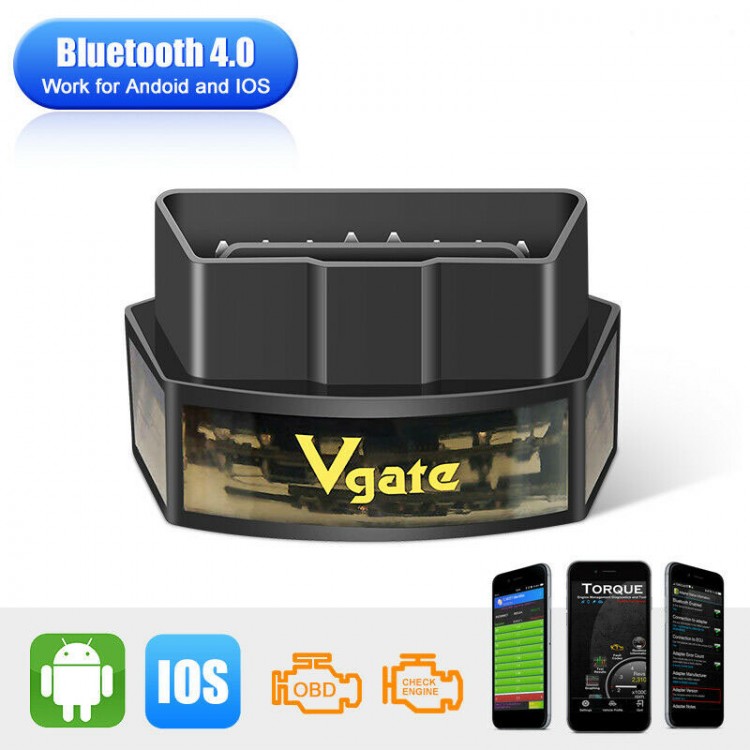

Vgate iCar OBD II adapter is a powerful car diagnostic tool it is compliant with full OBD II/EOBD specifications. Various wireless connection modes* to connect your smartphone or pad. It reads the real-time car engine data, such as engine speed, ignition time, fuel trim, water temperature, fuel consumption.It support a variety  of OBD II apps.

Electrical specification
- Supply Voltage: 11.5V—15V
- Supply Current: <200Ma
- Standby Current: <30Ma  ( TONWON Pro   =<3Ma )
- Operating Temperature:  -40 --85degree C
- Operating Humidity:  5%--95%RH Non-Dewfall

Vgate iCar OBD II adpater is a high-quality automotive scanning tool, supports all OBD-II protocols :
- SAE J1850 PWM(41.6 Kbaud)
- SAE J1850 VPW(10.4 Kbaud)
- ISO9141-2(5 baud init,10.4 Kbaud)
- ISO14230-4 KWP(5 baud init,10.4 Kbaud)
- ISO14230-4 KWP(fast init,10.4 Kbaud)
- ISO15765-4 CAN(11bit ID,500 Kbaud)
- ISO15765-4 CAN(29bit ID,500 Kbaud)
- ISO15765-4 CAN(11bit ID,250 Kbaud)
- ISO15765-4 CAN(29bit ID,250 Kbaud)
- SAE J1939 CAN(29bit ID,250* Kbaud)
- USER1 CAN(11*bit ID,125* Kbaud)
- USER2 CAN(11*bit ID,50* kbaud)
- Default settings (user adjustable)

Features:
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their     meaning. (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light)
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
- Many others.

Vehicle Coverage:
- Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles (Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)

For your information:
- For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information
- Label must state that the vehicle is OBD II compliant. To be sure your vehicle complies with OBD-II, look for a sticker on the vehicle under the hood in the engine compartment that clearly states "OBD II compliant or certified". An example of the sticker is shown below

Package list:
- 1* Vgate iCar OBDII adapter
- 1* User manual
