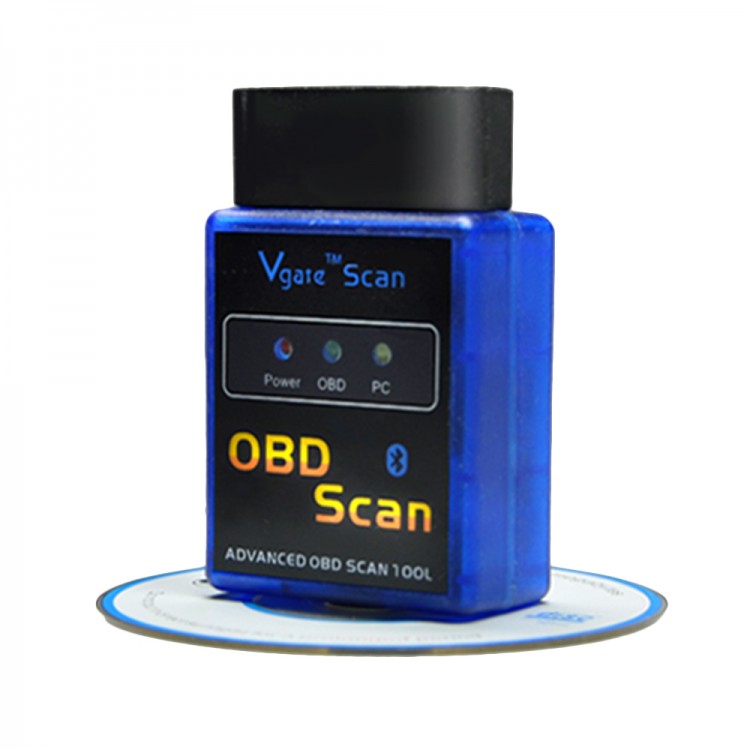

Vgate OBD Scanner MINI Bluetooth ELM327 OBD2 V2.1 Car Diagnostic Tool ELM327 USB Interface
Highlights:
- The newly developed wireless scan tool.
- It supports all OBD-II protocols.
- It is the latest version 1.5
- Bluetooth connection, no Batteries, Cables, or Switches.
- Wireless (Bluetooth) 5~10 meter
- Retrieve Fault Codes (DTCs) and clear Check Engine lights.
- Can also be used with a PC with a Bluetooth Card.
Note:
- This one CAN'T support for Diesel or Trucks.
- Latest software version supports most of OBD-II protocols.
Features:
- Read diagnostic trouble codes, both generic and manufacturer-specific , and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light)
- Set the maximum number of responses to obtain
- Remove spaces from ECU responses (to speed data transmission)
- Store a unique identifier in EEPROM
- Set the CAN mask and filter with one command
- Easily switch between variable and fixed CAN message lengths
- Send CAN remote frames (RTRs)
Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
Multi-Protocol Support:
- SAE J1850 PWM(41.6Kbaud)
- SAE J1850 VPW(10.4Kbaud)
- ISO9141-2(5 baud init,10.4Kbaud)
- ISO14230-4 KWP(5 baud init,10.4 Kbaud)
- ISO14230-4 KWP(fast init,10.4 Kbaud)
- ISO15765-4 CAN(11bit ID,500 Kbaud)
- ISO15765-4 CAN(29bit ID,500 Kbaud)
- ISO15765-4 CAN(11bit ID,250 Kbaud)
- ISO15765-4 CAN(29bit ID,250 Kbaud)
SAE J1939 CAN(29bit ID,250*Kbaud)
USER1 CAN(11*bit ID,125*Kbaud)
USER2 CAN(11*bit ID,50*kbaud)
default settings(user adjustable)
Vehicle Coverage:
Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles ( Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)
For your information:
For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.
Alfa Romeo/ Au-di/ Bentley/ B*M*W/ Cadillac/ Chevrolet/ Chrysler/ Citroen/ Daewoo/ Fiat/ Ford/ GM/ Hond*a/ Hyundai/ Isuzu/ Jaguar/ Jeep/ Kia/ Land Rover/ Lexus/ Mazda/ Mercury/ Mini/ Nissan/ Mitsubishi/ Opel/ Peugeot/ Porsche/ Renault/ Rover/ Saab/ Seat/ Skoda/ Toyota/ Vauxhall/ Volvo/ VW
Software Included:
- Scantool_net113win (Full Version)
- EasyOBDII V2.2 (Free Version)
- OBD2Spy (Demo Version)
- ScanMaster-ELM (Demo Version)
- wOBDCRAZY (Demo Version)
- This hardware can match many other software still!But most of them are not free!
- Works for Windows98/ME/2000/XP/Vista & 7 !
- This tool does not match abs and airbag system!
- Bluetooth paircode: 1234
- Main Control Chip:PIC18F2480
Packing List:
- 1*Vgate scan ELM327 USB interface
- 1*CD-ROM
