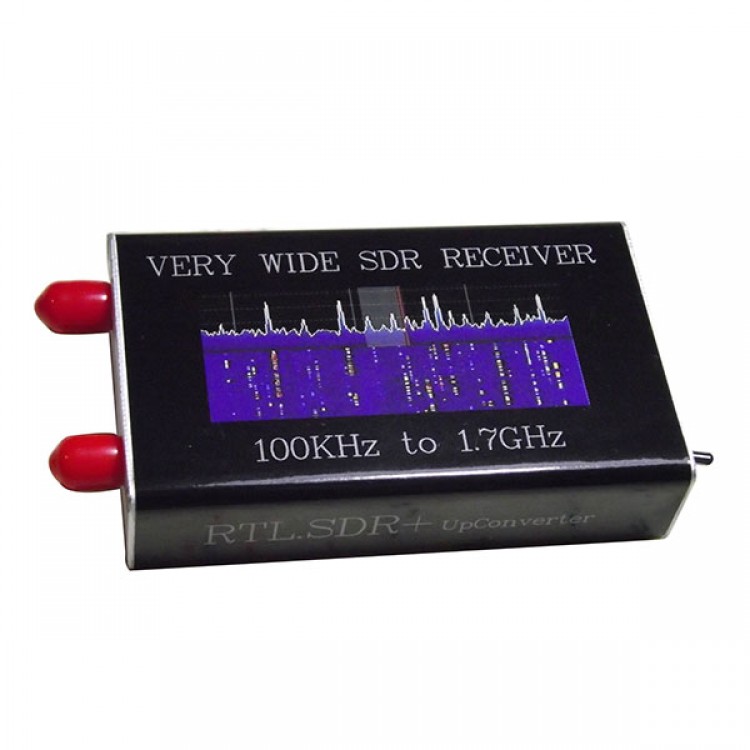

VHF UHF Band RTL.SDR+UpConverter SDR Receiver NFM FM DSB LSB CW 1.7GHz-100KHz

VHF UHF Band RTL.SDR+UpConverter SDR Receiver NFM FM DSB LSB CW 1.7GHz-100KHz

Description:
The testing antenna:
- can be used to test signals receiving from VHF/UHF bands
- The receiving signal strength which received from VHF/UHF is not the best. It can be used to receive the nearby signals (eg. FM broadcasting radio or other Hand-held radios). To achieve the best effect, you need to connect associated antennas
- Cannot be used to receive HF signal band.
- To achieve the best effect, you need to connect associated HF antennas such as Long Wire , Random Wire, Dipole etc.

RTL-SDR TECHNICAL SPECIFICATIONS
- Fully assembled and ready to use
- Uses RTL2832U+R820T chip set
- 100KHz to 1766MHz, operating frequency
- Covers all HF amateur bands
- Covers VHF & UHF bands from 24-1766MHz
- Up to 3.2 M Sample rate. (~2.8 MHz stable)
- Receiver modes NFM,FM,DSB,USB,LSB & CW
- Note: depends upon the SDR software used with the receiver
- 8-bit ADC giving ~50 dB dynamic range
- 50 Ohm input impedance
- Double SMA golden antenna connectors
- Diode protection on RF input
- Aluminum panels
- LED power and band indication
- 40MHz local oscillator for HF conversion
- DBM balance ring mixer
- Small size board
- Free software
- Independent antenna inputs for Shortwave and VHF
- USB computer connection ( mini usb) Powered by common USB
- Very High dynamic range receiver
- Accurate and efficient band filters
- Very clean audio reception
- All specifications subject to change without notice

Package included:
- 1 x Testing Telescopic antenna
- 1 x Main unit
- 1 x USB cable
