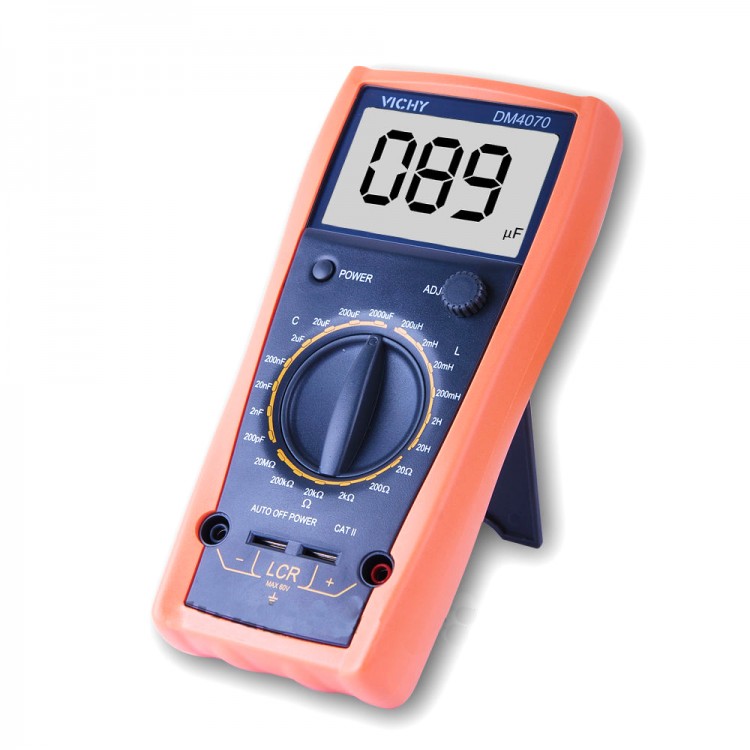

VICHY DM4070 Digital LCR Meter Multimeter Inductance Capacitance Ohm 9V

Tags: DM4070 Meter, LCR Multimeter

Availability: In stock, usually dispatched in 1 business day

  • Price:$39.56
  • Price in reward points: 396 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $38.77 $37.98 $36.79 $35.21 Contact US
Quantity:

VICHY DM4070 Digital LCR Meter Multimeter Inductance Capacitance Ohm 9V





Product Description:
- VICHY DM4070  3 1/2 Digital LCR Meter
- Measures Inductance, Capacitance, and Resistance
- Battery is included.

Technical Data:
1.Measures Capacitance 0.1 pF ~ 2000 uF; Inductance 0.1uH ~ 20H; Resistance 0.01ohm ~ 20Mohm;
2.Resolution: Capacitance 0.1 pF; Inductance 0.1uH; Resistance 0.01ohm;
3.Simultaneous 1999 count display of the primary parameter (L, C or R)
4.Test frequencies of 1kHz
5.Selectable Parallel or Series equivalent circuit
6.Ideal for testing SMD type components.
7.Sampling rate: 0~ 5s
8.Open and Short Zero removes unwanted stray impedances from the measurement
9.Auto power off when stop working for 20 minutes.
10.Self-discharge for capacitance test
11.Powered by 9V battery; Low battery Indication.
12.Comes with test leads, 9V battery and protective holster.

Specification:
- Special function:DM4070
- Low battery indication:Approx. less than 7.5V
- Capacitor discharge protect:v
- Auto power off:It will power down about 20 minutes if no any measure.
- Function protect:v
- Anti-shock protect:v
- Sampling rate:0~ 5s
- Operation way:Manual range
- Max. display:1999
- LCD size:65x41mm
- Battery:9V (6F22)
- Power dissipation:Quiescent current approx. 6mA


Standard Accessories:
- 1 x Test leads
- 1 x English manual.
- 1 x DM4070 Digital Meter
- 1 x FREE black carrying bag
