Vici VICHY VC8145 DMM Digital Bench Multimeter Temperature Meter Tester PC Analog 80000 Counts Analog Bar Graph

Vici VICHY VC8145 DMM Digital Bench Multimeter Temperature Meter Tester PC Analog 80000 Counts Analog Bar Graph

English user manual: Click here

Description:
- This meter is an intelligent and multi-functional device for various measurement. It features high quality, high accuracy, high reliability, special high frequency measurement and low cost. The meter is in compliance with IEC 6010 CAT II 1000V and CAT III 600V high voltage standards. Other features of this instrument are listed below:
- Multi-display: primary 80000 counts, secondary 80000 counts, bar graph 23 segments
- 50 measuring functions, with basic DCV, ACV, DCA, ACA, Ω, CAP, Hz, TEMP, diode and Continuity measuring function, etc.
- 18 types of frequency, frequency up to 80MHz, 1800 waveform outputs, 0.1%~99% duty cycle.
- Simultaneous measure (AC+DC), (AC+Hz), (DC+dBm), (dBm+Hz), (Hz+Duty), (degree C +degree F).
- Auto data update and refresh, auto data hold, auto peak hold.
- 36-hour dynamic record: MAG, MIN, AVG, MAX-MIN (REL△), (REL%), setting upper & lower limit, timing measurement
- AC measuring adopts highly accurate true RMS measurement, with testing frequency bandwidth and AC+DC measuring, capable of accurate true RMS measuring of any waveforms in AC range
- RS-232 interface

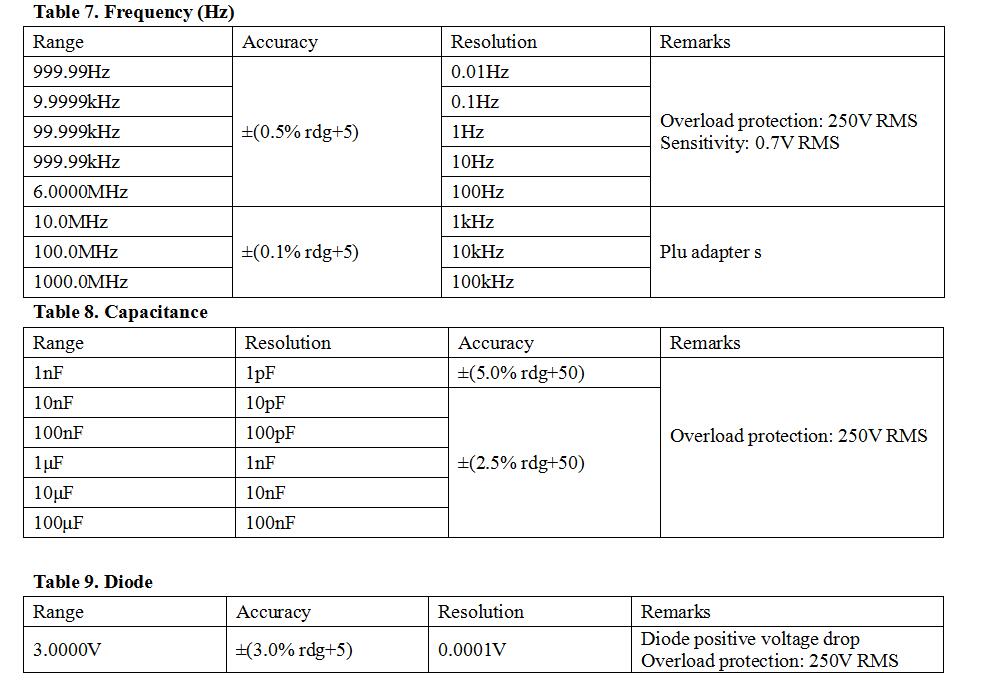

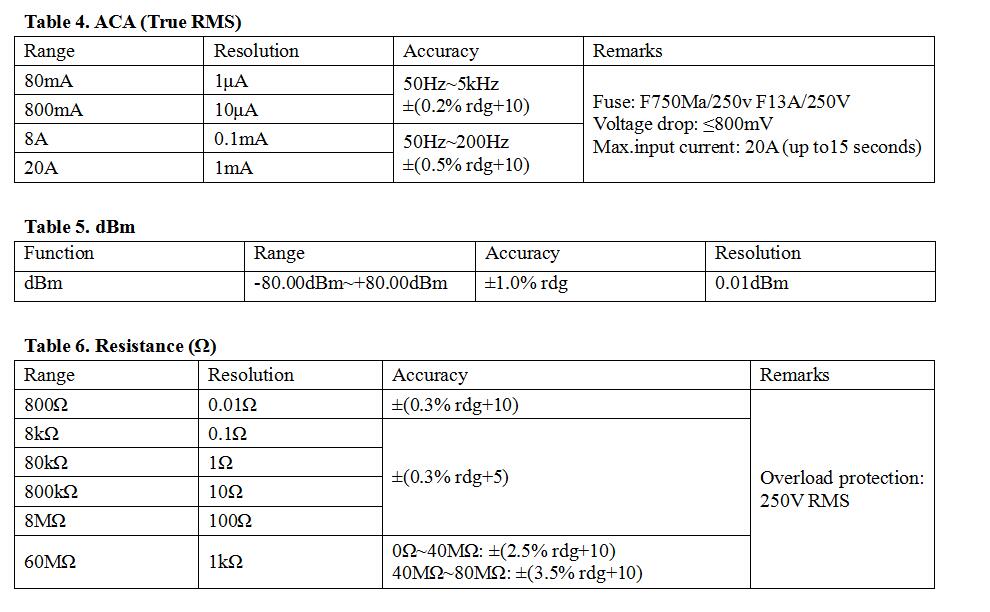

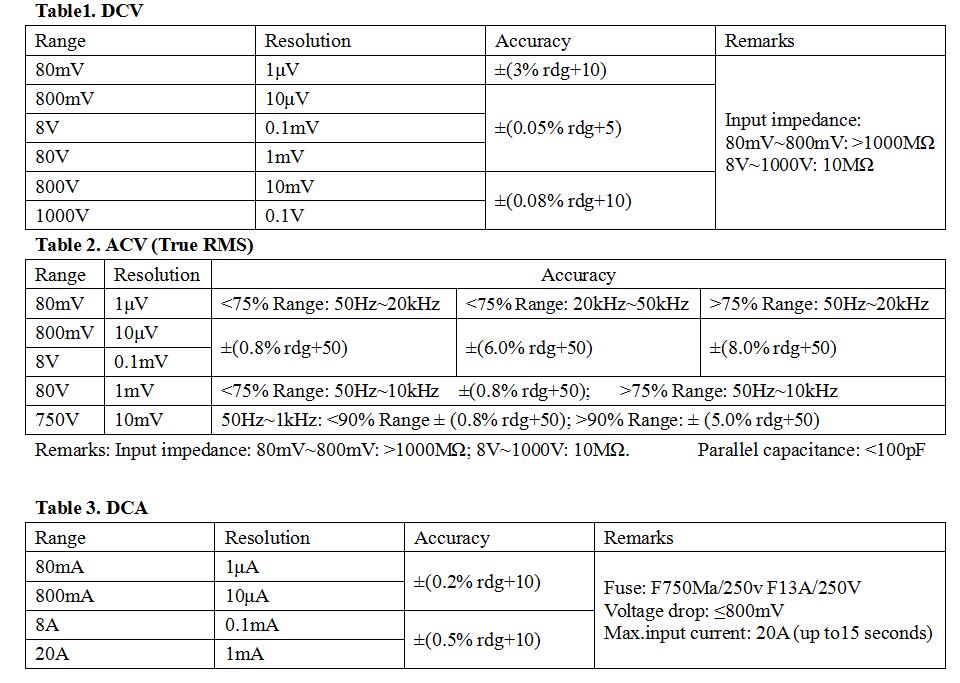

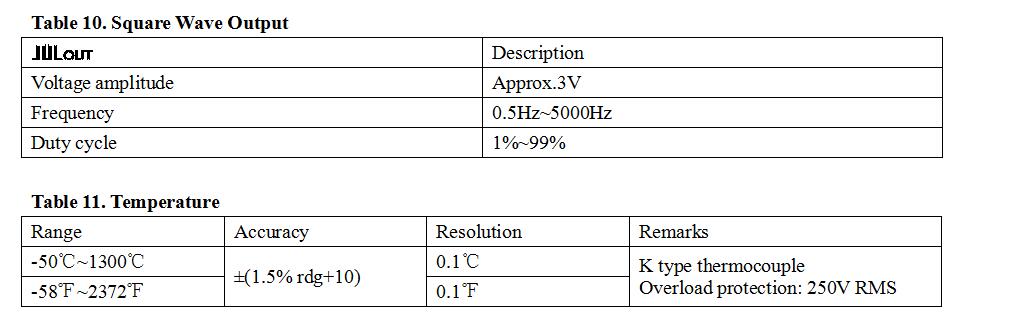

Specifications
- Max.voltage between terminal and ground: 1000V RMS
- Continuity beeper: Approx.3kHz
- Display: dual display 80000, update 4 time/Sec.
- Bar graph: 23 segments, update 40 time/Sec.
- Electromagnetic compatibility:
  For all ranges and functions (except capacitance), in a RF field of 1V/m, total accuracy=specified accuracy+5% of range.
  In a RF field, the capacitance has no specified range or all ranges and functions, in a RF field above 1V/m, there is no specified range.
- Safety/Compliance: IEC 61010 CAT II 1000V, and CAT III 600V
- Input voltage: AC110V/220V selectable, 50/60Hz
- Operating environment: temperature 0-50 degree C,altitude below 2000m
- Storage environment: temperature -20~60 degree C, altitude below 5000m
- Relative humidity: ≤75%, at 0~40 degree C; ≤45%, at 40 -50 degree C
- Dimension: 260x220x82mm
- Weight: Approx.1.4KG

Package contents :
- 1 x VC8145 Digital Bench Top Multimeter
- 1 x Type K Thermocouple
- 1 x Data Cable
- 1 x Power Cord
- 1 x Instruction Manual
- Test Lead
