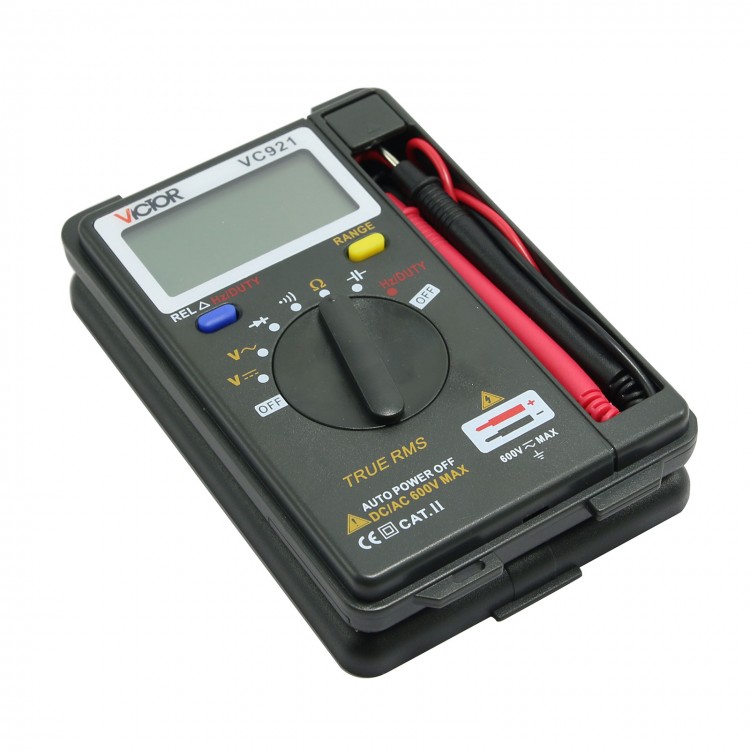

VICTOR Mini VC921 Multimeter Pocket Digital Multimeter
Battery not included!
Features:
The design of the unit symbol display, more convenient to use;
High anti-jamming;
The power off automatically after no-working 15 minutes and alarming before the power failure one minute ;
Full function protection, anti-high voltage circuit design;
The new battery door design, easy to replace the battery.
|
Basic Functions |
Measurement Range |
Basic accuracy |
|
|
DC Voltage |
400mV/4V/40V/400V/600V |
±(0.5%+4) |
|
|
AC Voltage |
400mV/4V/40V/400V/600V |
±(0.8%+6) |
|
|
Resistance |
400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ |
±(0.8%+4) |
|
|
Capacitance |
40nF/400nF/4uF/200uF |
±(3.5%+8) |
|
|
Frequency |
100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
±(0.5%+4) |
|
|
Special Functions |
VC921 |
||
|
Diode test |
√ |
||
|
Continuity buzzer |
√ |
||
|
Low voltage display |
√ |
||
|
Data Hold |
√ |
||
|
Frequency / Duty Cycle |
√ |
||
|
Unit symbol display |
√ |
||
|
Shock protection |
√ |
||
|
Input impedance |
10MΩ |
||
|
Sampling Frequency |
3Time/s |
||
|
AC frequency response |
(40-400)Hz |
||
|
Operation |
Auto range |
||
|
Maximum Display |
3999 |
||
|
Power supply |
3V (1.5V×2) |
||
|
Colors |
Body - dark gray |
|
Body weight |
108g |
|
Dimensions |
117×80×19mm |
|
Standard accessories |
Table pen, battery, manual, certificate |
|
Standard inner packing |
Box |
|
Packaging size |
396×312×433mm |
