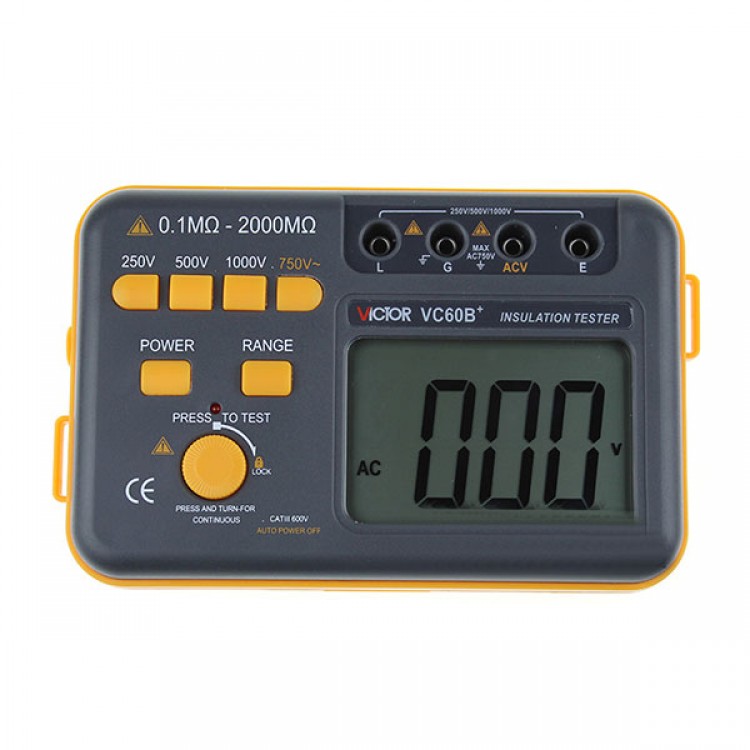

Victory VC60B+ Digital Insulation Tester Meter Megger Megohmmeter
Features:
- Easy and correct readout
- Wide measurement range
- High stability and reliability
- LCD display for low power consumption and clear readout
- Light weight and compact construction for easy operation
- Auto power off and asleep mode
Specifications:
- Over range indication: MSD "1" display
- Power supply: 6x AA battery (included)
- Power Consumption: unload consumption is less than 300 mW.
- Operating Temperature: 0 ~ 40 °C
- Operating Humidity: 30% ~ 85% RH
- Dimension: 175mm (L) x 110mm (W) x 70mm (D)
Test Voltage
|
250 V ± 10%
|
500 V ± 10%
|
1000 V ± 10%
|
Range
|
0.1 MΩ - 20 MΩ
|
0.1 Ω - 50 MΩ
|
0.1 MΩ - 100 MΩ
|
20 MΩ - 500 MΩ
|
50 MΩ - 1000 MΩ
|
100 MΩ - 2000 MΩ
|
|
Accuracy
|
± (4% of reading + 2d)
|
||
Short current
|
1.7 mA
|
1.7 mA
|
1.4 mA
|
Median Resistance
|
2 MΩ
|
2 MΩ
|
5 MΩ
|
Jack Position
|
L, E2
|
L, E2
|
L, E1
|
