Video Converter Box VGA to HDMI 4Kx2K Scaler Ultra HD HDV-9330

Video Converter Box VGA to HDMI 4Kx2K Scaler Ultra HD HDV-9330

Product Description:The VGA to HDMI 4Kx2K Scaler Converter is a universal converter for analog VGA input to HDMI 4Kx2K@60Hz output.The analog to digital conversion in this module employs 10 bits maximal 297MSPS sampling,black/white level expansion,color transition improvement,dynamic range expansion,blue stretch,auto-detect and auto-convert the VGA signal to HDMI output.Making video come alive, delivering the sharpest,most realistic HD visuals available.

Features:
1.No need to install drivers,portable,flexible,plug and play.
2.Provide advanced signal processing with great precision,colors,resolutions,and details.
3.Support multi-VESA Standard VGA formats input.
4.Support HDMI 4Kx2K@60Hz, 4Kx2K@30Hz,1080p@60Hz or 720p@60Hz output.

Specification:
- Input ports: 1xVGA,1xEarphone,1 x Min- USB
- Output ports: 1xHDMI
- VGA input resolution:640 x 480P@60Hz,800 x 600@60Hz,1024 x 768P@60Hz,1280 x 720P@60Hz,1280 x 768P@60Hz,1280 x 1024P@60Hz;1360 x 768P@60Hz,1920 x 1080P@60Hz.
- HDMI output resolution:4Kx2K@60Hz,4Kx2K@30Hz,1080P@60Hz,720P@60Hz
- Operating Temperature:0°C-40°C/32°F-104°F
- Storage Temperature:-20°C-60°C/-4°F-140°F
- Elative Humidity:20-90% RH (Non-condensing)
- Power Consumption (Max):3.5W
- ESD Protection:Human Body Model:± 8kV (air-gap discharge);± 4kV (contact discharge)
- Dimensions(mm): 93(D)x84(W)x28(H)
- Weight(g):160g

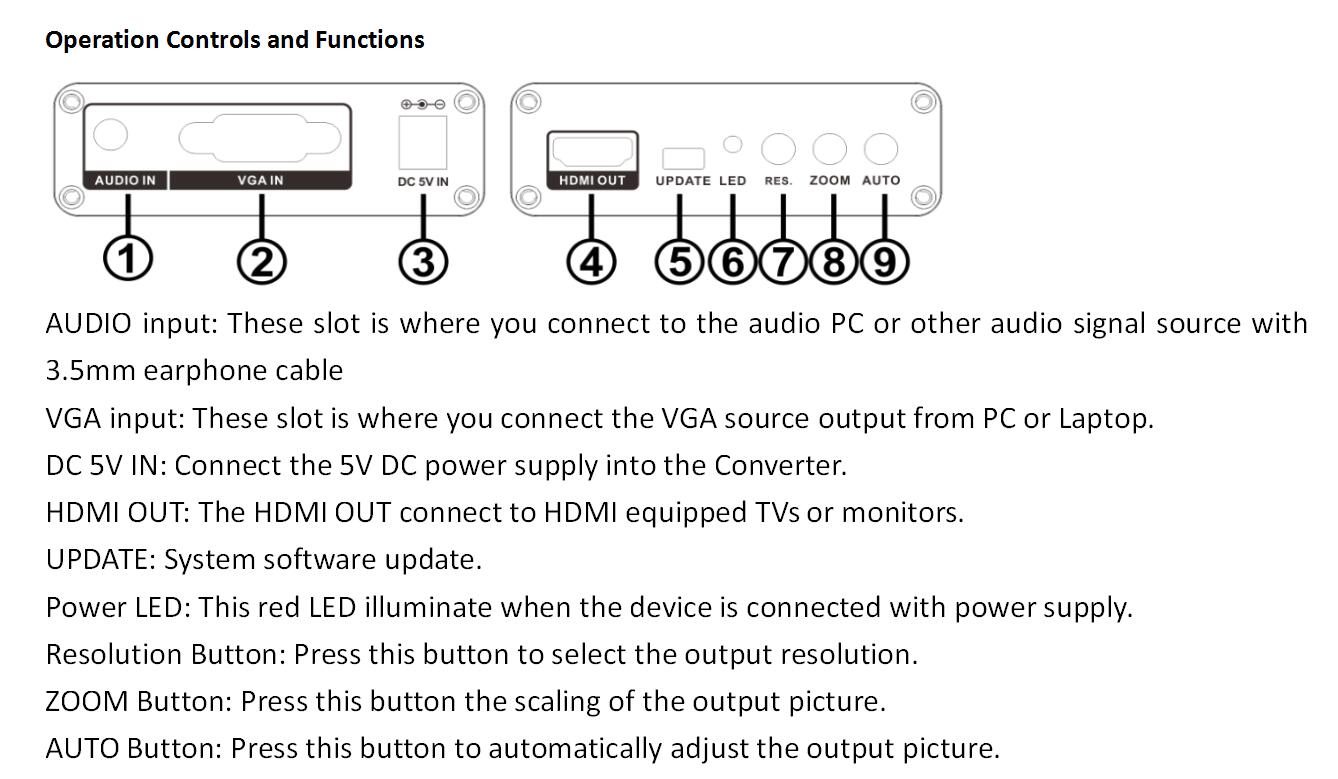

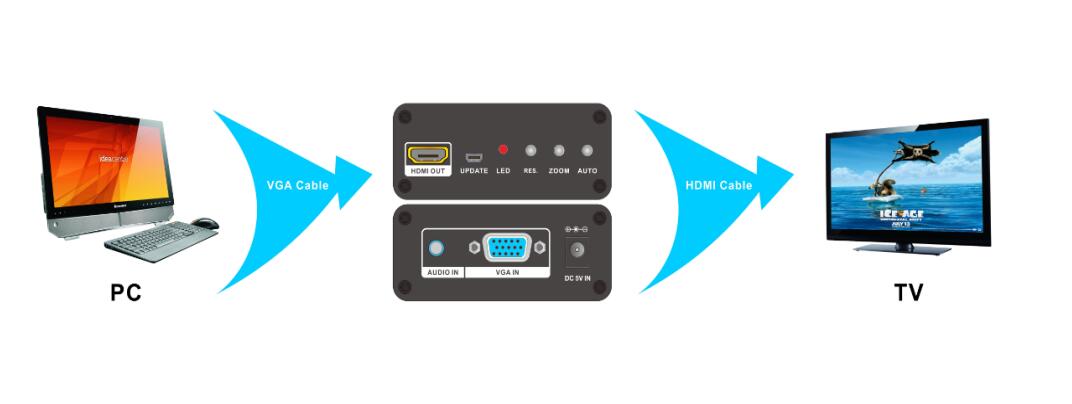

Connection and Installation:
1.Connect a source such as a PC to the Converter VGA input.
2.Connect the audio signal via the 3.5mm earphone cable.
3.Connect a display such as a monitor,TV or Projector to the HDMI output on the Converter.
4.Power on the device and display.

Package List:
- 1 x VGA to HDMI 4Kx2K Scaler Converter
- 1 x 2.5V1A DC Power Supply Adaptor
- 1 x Operation Manual
