VisionPi Camera Gimbal Visual PTZ 2DOF Camera Unassembled with Main Board For Raspberry Pi 4B 2G

VisionPi Camera Gimbal Visual PTZ 2DOF Camera Unassembled with Main Board For Raspberry Pi 4B 2G

Attention:
- The core controller of VisionPi PTZ adopts board for Raspberry Pi 4B.
- Free mobile phone APP and PC software to control robot movement.
- Provide detailed course materials and source code for Python, with tutorials.

Note: Assembling is needed.

Description:

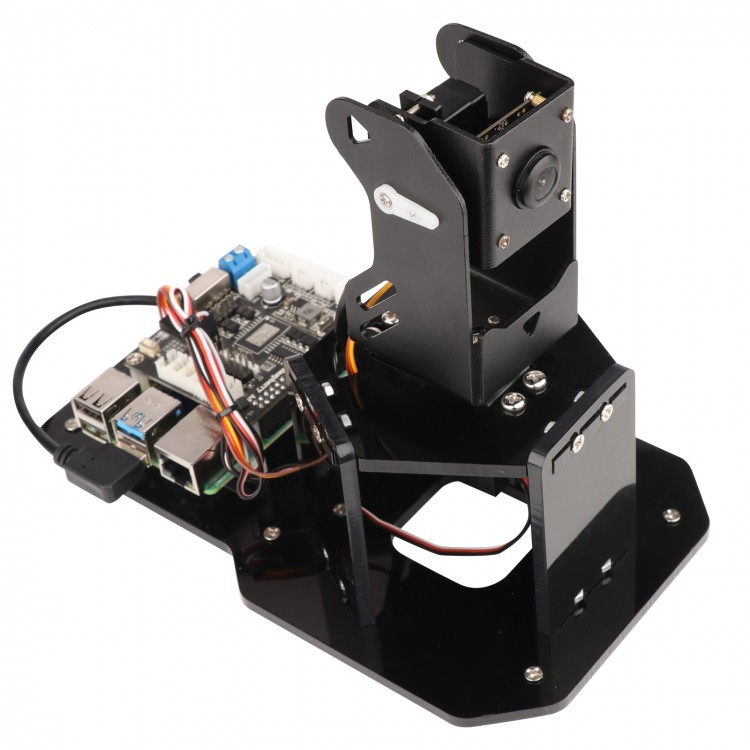

VisionPi is based on that for Raspberry Pi 4B. It is equipped with a high-definition camera and has 2DOF. It can complete functions such as face tracking, color tracking, and image recognition through that for OpenCV. For ease of use, we provide APP for Android and iOS mobile phones, which can quickly implement all gameplay.

VisionPi provides detailed tutorial materials, open source for Python. Take you to learn machine vision, so you can quickly build a machine vision programming environment and play with AI.

What can you learn?
- For OpenCV
- Programming for Python
- Machine vision
- Build a machine vision programming environment

Features:
- Detailed Course Materials Open Source: Equipped with carefully researched and developed live-action video courses and rich learning materials, the content is from the simpler to the deeper, and you can learn easily. Support offline downloading and learning of a full set of course materials. Support online learning on the official website, no need to download.
- A variety of smart gameplay makes learning programming more interesting. It can be used for color tracking, face detection, pan-tilt control, face tracking, motion detection, QR code recognition, and finger recognition.
- Mobile phone APP control: Provide mobile APP for Android and iOS, you can use the APP to experience all gameplay such as color tracking, face recognition, etc. The APP also supports small functions such as photo storage.
- Color tracking: VisionPi PTZ can intelligently track the colors that have been set in APP, and can flexibly track the same colors in the visual environment, with rapid response and flexible actions. Pitch 130°, look around 180°
- Face detection real-time mailbox alarm: VisionPi PTZ can monitor the surrounding environment in real time. When a human face appears in the visual range, a photo will be taken and sent to the set mailbox to realize an alarm.
- PTZ control: The control function in APP can not only control the rotation of the PTZ up, down, left and right, but also the function of taking photos and storing.
- Face tracking: The gimbal can not only realize face detection, but also intelligently follow faces in the visual range
- Movement detection: The gimbal can detect all moving objects within the visual range, and display the detected status on the APP to improve monitoring efficiency and accuracy
- QR code recognition: PTZ will automatically decode the captured QR code and display the decoded content on the APP.
- Finger recognition: VisionPi PTZ can recognize the number of fingers appearing in the visual range through that for OpenCV, and display the recognition results on the APP.
- 2DOF PTZ has a wide viewing angle: The PTZ is equipped with two anti-blocking servos, which can rotate left and right, up and down, and has a wide viewing angle and a wider visual coverage. Manually adjust the camera focus. Pitch 130°, look around 180°
- Control system for Raspberry Pi.
- Two Control Ways: Support VNC remote desktop control and mobile phone APP control.
- Two kinds of network distribution methods: The pan/tilt is equipped with two anti-blocking servos, which can rotate left and right, up and down, and have a wide viewing angle and a wider visual coverage. ①Insert network cable directly ②Configure WiFi on your mobile phone, which needs to be configured on main board for Raspberry Pi.

Controller System For Raspberry Pi:
Board For Raspberry Pi 4B 2G:
- For Broadcom BCM2711
- 64-bit 15GHz quad-core (28nm process)
- For Broadcom VideoCoreVI at 500MHz
- Bluetooth 5.0
- USB 2.0*2/USB 3.0*2
- micro HDMI*2, support 4K 60Hz
- Type C (5V 3A)
- 802.11AC wireless 2.4GHz/5GHz dual-band WiFi
- True Gigabit Ethernet (network port can reach)
- Powered via additional HAT Ethernet Poe

Expansion Board For Raspberry Pi:
- Built 8-channel PWM servo interface with over-current protection to effectively protect servo
- Built-in single-bus serial port circuit, which can directly control serial port servo
- Two programmable LEDs, clearly showing the working status of system
- Two programmable buttons, more convenient configuration system
- Reserve IIC interface and UART interface, which can expand various sensors more conveniently

Specifications:
Body Parameters:

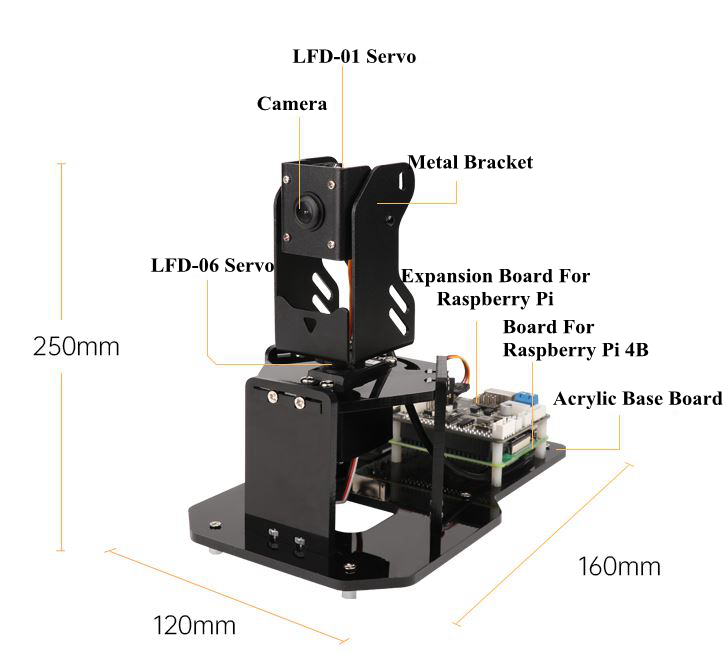

- Product size: 160*120*250mm (length x width x height)
- Body weight: about 0.6kg
- Body material: Metal and acrylic board, with higher strength
- Camera resolution: 480P
- Gimbal angle: 180° left and right, 130° up and down, maximum top angle 40° , maximum elevation angle 90°

Power Supply System:
- Adapter: 7.5V 3A power adapter

Control System:
- Hardware part: Control board for Raspberry Pi 4B and expansion board for Raspberry Pi
- Software: PC VNC software + mobile phone APP
- Servo parameters: LFD-01 anti-blocking servo, size: 32.5*12*29.85mm; locked-rotor torque: 1.8kg.cm 6V. LFD-06 anti-blocking servo, size: 40*20*40.5mm; blocking torque: 6kg.cm 6.6V

Other Parameters:
- Control method: computer control/mobile phone APP control

Package Included:
- 1 x Set of Gimbal Bracket
- 1 x Main Board For Raspberry Pi
- 1 x Expansion Board For Raspberry Pi
- 1 x High Resolution Camera
- 1 x Camera Connection Cable
- 1 x LFD-01 Servo
- 1 x LFD-06 Servo
- 1 x Set of 7.5V 3A Power Adapter
- 1 x Neutralizer
- 1 x Micro USB Data Cable
- 3 x Heat Sinks
- 1 x 16G TF Card
- 1 x Card Reader
- 3 x Balls (Red + Green + Blue)
- 1 x Screwdriver
- 1 x Bag of Accessories
