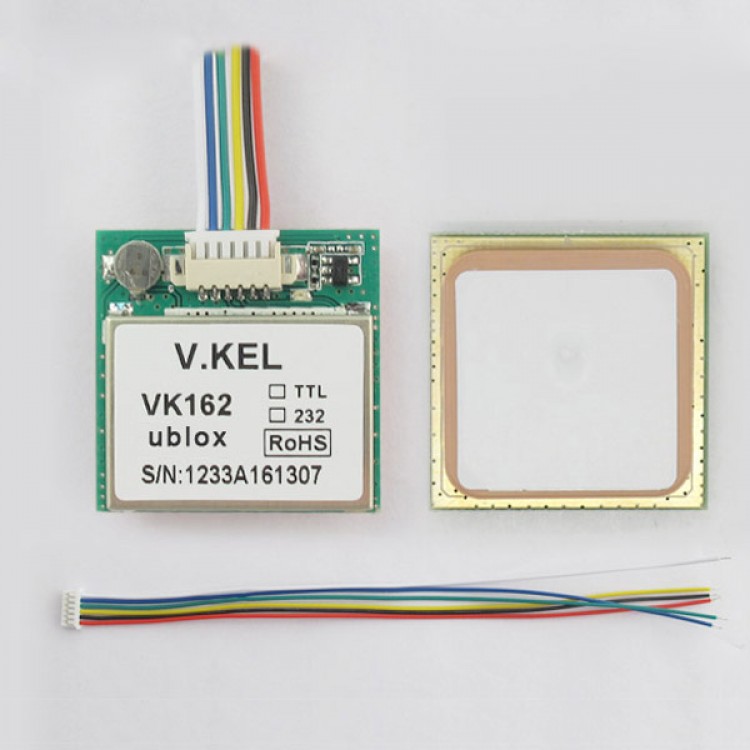

VK-162 GPS Module with SIRF3 Ceramic Antenna TTL/USB Signal

Availability: Out Of Stock

  • Price:$18.85
  • Price in reward points: 189 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.47 $18.10 $17.53 $16.78 Contact US
Quantity:
Buy it now Add cart

You might like

HLK-MP01 Wireless Router Module Net Export to WIFI AP Wireless Bridge RJ45 to WIFI

HLK-MP01 Wireless Router Module Net Export to WIFI AP Wireless Bridge RJ45 to WIFI

$18.68

(0)
Happymodel EP1 RX 2.4GHz RX ExpressLRS Nano Long Range Receiver Open Source High Refresh Rate For FPV

Happymodel EP1 RX 2.4GHz RX ExpressLRS Nano Long Range Receiver Open Source High Refresh Rate For FPV

$17.98

(0)
TTGO T-Beam ESP32 LoRa CH9102F Wifi Module Bluetooth Module GPS NEO-6M With 18650 Holder (915MHz)

TTGO T-Beam ESP32 LoRa CH9102F Wifi Module Bluetooth Module GPS NEO-6M With 18650 Holder (915MHz)

$47.06

(0)
Pixhawk PX4 Autopilot PIX 2.4.6(2.4.5) Flight Controller 32 bit ARM /w NEO-7M GPS for RC Multicopter(with External LED)

Pixhawk PX4 Autopilot PIX 2.4.6(2.4.5) Flight Controller 32 bit ARM /w NEO-7M GPS for RC Multicopter(with External LED)

$105.50

(0)
T-Beam V1.0 Upgraded ESP32 LoRa Board 433MHz Version WiFi Bluetooth Module GPS NEO-6M 18650 Holder

T-Beam V1.0 Upgraded ESP32 LoRa Board 433MHz Version WiFi Bluetooth Module GPS NEO-6M 18650 Holder

$37.99

(0)
NEO-M8N GPS Module + Ceramic Active Antenna Flight Control Positioning Module for GPS/Beidou/GLONASS

NEO-M8N GPS Module + Ceramic Active Antenna Flight Control Positioning Module for GPS/Beidou/GLONASS

$13.89

(0)
APM V2.8.0 Flight Controller No Compass with Ublox Neo-7M GPS & Power Module & 433Mhz 3DR Radio Telemetry for FPV Multicopter

APM V2.8.0 Flight Controller No Compass with Ublox Neo-7M GPS & Power Module & 433Mhz 3DR Radio Telemetry for FPV Multicopter

$76.06

(0)
T-Beam V1.0 Original ESP32 LoRa Board 923MHz Version WiFi Bluetooth Module GPS NEO-6M 18650 Holder

T-Beam V1.0 Original ESP32 LoRa Board 923MHz Version WiFi Bluetooth Module GPS NEO-6M 18650 Holder

$43.45

(0)

VK-162 GPS Module with SIRF3 Ceramic Antenna TTL/USB Signal
Description:
- VK-162 with light weight about 14g
- Built in SIRF III Chip, quick location and 20 statelite tracking function
- Built in back up battery and high gain Lna,dual LDO,GPS signal
- Optional Buadrate:4800,9600,19200,38400,5700,115200
- Optional:RMC,GSV,GSA,GGA,VTG,GL
- Defualt rate:9600 standard
- 6PIN :GND,RX,TX,VCC, (BOOT.P) for upgrading or other functions.

Specfication:
 - Type:VK-162
 - Main chip:SiRF Star Ⅲ
 - C/A  code,1.023MHz
 - Receiver frequency::L1 [1575.42MHz]
 - Tracking channel:20
 - support DGPS[WAAS, EGNOS and MSAS]

Locating performance:
- 2D:5m Average
- 2D:3.5m[average ],withDGPS
 - Driftling:0.02m/s
- accuracy:1us
- Coordinate system:WGS-84
- Max latitude:18000M
- Max spped:515m/s
 - Acceleration＜4g
- tracking sensitivity:-159dBm
- Catching sensitivity:-147dBm
- start time:38s average
- Warmstart time:35s average
- Hot start time:1S average
- Sice:28*28.0*8.6mm
- buad rate:9600bps
- Wide voltage:+3.5V~+5.5V
