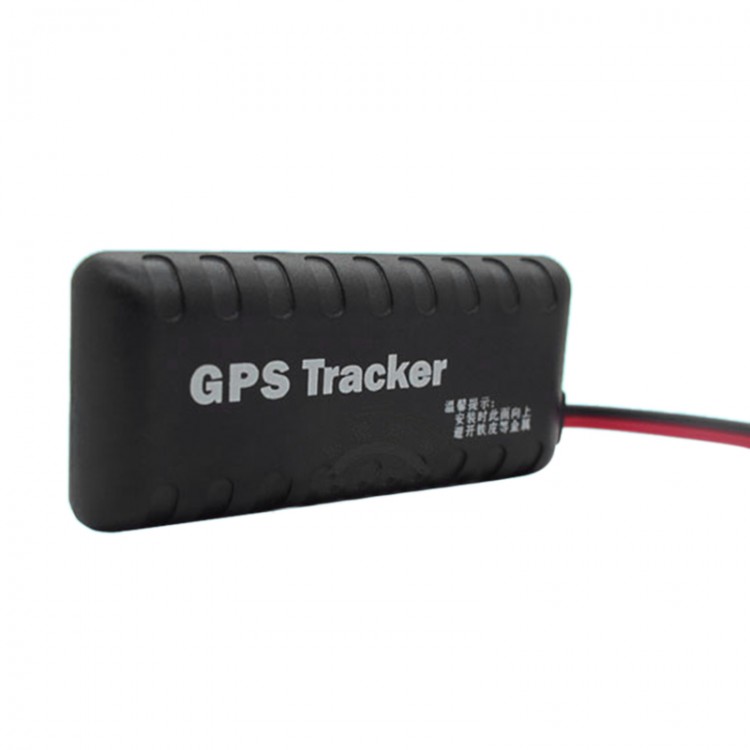

VK-T2 Ultra-small Volume Car GPS Tracker/GPS Positioner w/ Low Power Consumption
|
Status of Signal Indicator |
||
|
GSM Indicator (Blue) |
The power is working |
Always lighted: searching for GSM network |
|
Flash once in every 3 seconds: the network is normal |
||
|
The power is cutoff |
Flash twice, in every 3 seconds: the network is normal |
|
|
Flash twice, light for 3 seconds: searching for GSM network |
||
|
GPS Indicator (Green) |
Long lighted: searching for GPS signal |
|
|
Flash slowly: GPS is positioning |
||
|
Always Off: The VK-T2 is sleeping |
||
|
NO. |
Name |
Quantity |
|
1 |
Versatile VK-T2(With Battery) |
1 |
|
2 |
2 pin Wires |
1 |
|
3 |
Locker Relay(Optional) |
1 |
|
4 |
Ribbon |
2 |
|
5 |
User Manual |
1 |
|
6 |
Warranty Card |
1 |
|
7 |
Certification |
1 |
To achieve wireless telecommunication, VK-T2 needs a standard-size GSM card, namely SIM card. The SIM card must have GPRS and messaging features.
This SIM card needs to open call/SMS functions to achieve Call/SMS alarm. For more details, please consult the specific network operators.
Please regularly check the balance of SIM card to ensure the normal use of VK-T2. For more details, please consult the specific mobile network operators.
You can visit www.map10000.com to download the App.
Unpack the packing box, and take down the back plate.
Insert an available SIM card into the card slot and turn on the battery switch, and then install the back plate.
Connect the 2pin wires to the circuit of vehicle or controlled objects. About operating methods, please refer to VK-T2 Wiring Definition.
Observe the signal indicator and make sure the GSM and GPS are working normally (please refer to View of VK-T2), and then put the VK-T2 in a proper place and fix it.
Visit the web platform (www.map10000.com) or app to check the running state of VK-T2.
|
No. |
Items |
Value |
|
1 |
GSM frequency |
850MHz/900MHz/1800 MHz/1900 MHz |
|
2 |
GPS chip |
Compatible with u-blox/BDS |
|
3 |
GPRS |
Class 12,TCP/IP build in GSM MODULE |
|
4 |
Sensitivity of GPS |
-163dBm |
|
5 |
GPS Accuracy |
10m (open sky) |
|
6 |
Cell ID Accuracy |
50-2000m |
|
7 |
Speed Accuracy |
0.1m/s |
|
8 |
Warm Start-up |
2s (open sky) |
|
9 |
Cold Start-up |
≤35s (open sky) |
|
10 |
A-GPS Start-up |
≤25s (open sky) |
|
11 |
Fast Positioning |
Supports AGPS |
|
12 |
3D G-Sensor |
±8g(All Direction) |
|
13 |
Backup Battery |
40mAh/ 3.7V |
|
14 |
Storage Temperature |
-40~+85 degrees |
|
15 |
Operating Temperature |
-20~+70 degrees |
|
16 |
Humidity |
20%~80%RH |
|
17 |
Operating Voltage Range |
10V~100V DC |
|
18 |
Operating Current |
< 50mA |
|
19 |
Sleeping Current |
< 3.5mA |
|
20 |
Dimensions |
72*32*15mm |
|
21 |
Net Weight |
42g |
|
No. |
Device |
Items |
Value |
|
1 |
Wireless emitter |
Working Voltage |
4-7V DC |
|
Static Current |
<1mA |
||
|
Output Power |
+10dB |
||
|
Output Current |
<15mA |
||
|
Working Power |
433Mhz (±75k) |
||
|
Modulation Type |
OOK |
||
|
Baud |
2Kbps |
||
|
2 |
Wireless locker |
Working Voltage |
9-24V DC |
|
Static Current |
<5mA |
||
|
RX sensitivity |
≥-110dB |
||
|
Working Power |
433Mhz (±75k) |
||
|
Modulation Type |
OOK |
||
|
Baud |
2Kbps |
||
|
3 |
Wireless controller |
Working Voltage |
3.0 V DC |
|
Static Current |
<1uA |
||
|
Output Current |
<10mA |
||
|
Working Power |
433Mhz (±75k) |
||
|
Modulation Type |
OOK |
||
|
Baud |
2Kbps |
VK-T2 is a powerful, stable, and high-precision GPS positioner. It achieves real-time tracking, track playback, e-fence, data statistics etc. It also has a variety of alarm mode, including power cutoff alarm, low battery alarm, vibration alarm, displacement alarm, overspeed alarm, fence alarm etc.
VK-T2 is especially applicable to monitoring the running status of target. It can be applied to car rental, small fleet management, and other dispatching systems of vehicle.
Stable Performance
With four high speed PCB modular designation, makes the VK-T2 work stable.
Automatically updating the firmware in remotely, makes the system refresh the server lists and debug itself, and keeps the VK-T2 in the best state at any time.
Built-in 40mAh lithium-polymer battery of high/low temperature resistant.
Built-in Watchdog timer (WDT), the system can be quickly restored automatically when the system encounters an exception.
Accurate Positioning
Adopting the u-blox7 of the world's GPR leading solutions provider in Switzerland, the VK-T2 is of high sense and stable signals.
Built-in LNA. The SNR and resistant to interference of GPS signal will be widely improved after amplifying by LNA. The sensitivity and accuracy of positioning will also be increased.
Reliable Network
Four frequency standard (850/ 900/ 1800/ 1900MHz), global free.
Fully compatible with 2G / 3G / 4G GSM SIM card, whether it is 11bits or 13 bits.
The VK-T2 will buffer the data in the SIM card automatically to keep it online in case of data losing.
Automatically identifying and switching national servers ensures the data transmission continuously.
The web platform server uses CDN architecture, completely protected the access speed.
Intelligentize Working
When the vehicle or controlled object is static, the 3D G-Sensor built-in VK-T2 will collect the slightly vibration and smartly identify the running state, then the VK-T2 can auto-change the working mode to save the power.
When the vehicle or controlled object is running, the G-Sensor and algorithms built-in VK-T2 will auto-add the missed tracking point and auto-suppress the positioning errors
There is a buffer of large volume for the VK-T2 to buffer the missed tracking while the network is interrupted. After the network is normal, the missed tracking point will be auto-uploaded to the platform to complete the running tracking.
Low Power Consumption and Long Standby Time
Supports DC 10 ~ 100V wide supply voltage. Strong adaptability without external power supply is especially suitable for cars, motorcycles, electric vehicles.
Smartly identifying the running state of controlled object by the 3D G-Sensor built-in VK-T2, the VK-T2 can auto-change the working mode to save the power.
Multiple Security
Supports E-Fence function. You can designate a virtual fence to an arbitrary scale in web platform or in App. The VK-T2 will automatically send the alarm to the platform once it is in/out this fence.
Supports vibration alarm, displacement alarm, and low-power alarm etc.
The VK-T2 can send alarming SMS to the custodian or call the custodian to alarm, and the alarm information will also be uploaded to the platform at the same time.
The external power/oil relays and wireless oil-cutoff accessories are optional. You can cutoff the power/oil of your car.
User-friendly Operations
Supports Sending SMS and Call to inquiring the current position. The VK-T2 will send the SMS with contents of current positioning back to the Custodian’s number after he/she sent the checking SMS to VK-T2 or after he/she called the VK-T2 and hung up in 3 rings.
Supports remotely real-time listening. You can listen to the voice around the VK-T2. The streaming media forwarding technology makes the delay as low as 1.5 seconds.
You can view the latest positioning information and replay the tracking in specified time period in Web platform. The platform will save at least 90 days’ positioning data.
You can view the latest positioning information in App.
