VK16U6 Ublox GPS Module with Antenna TTL Signal Output FZ0517

VK16U6 Ublox GPS Module with Antenna TTL Signal Output FZ0517

Product Highlights:

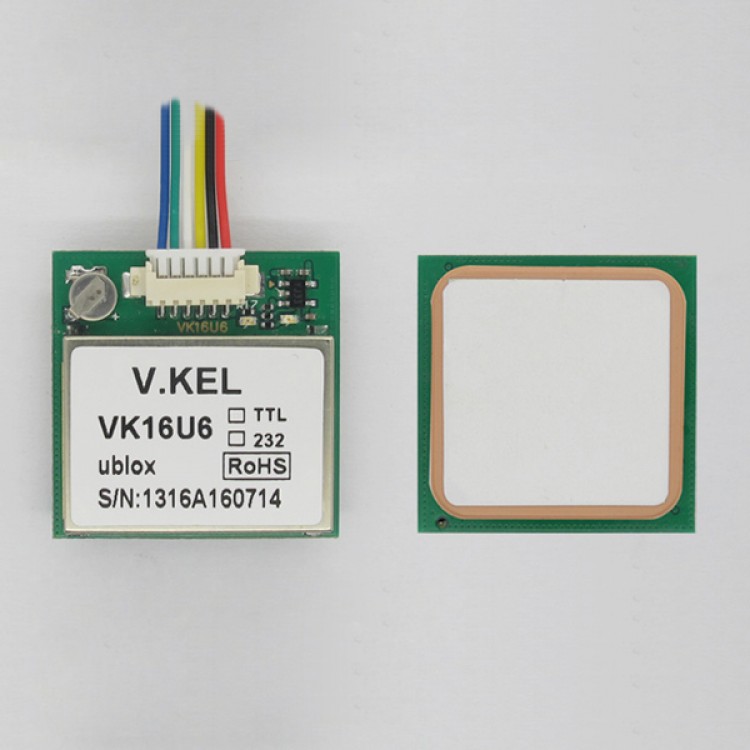

- Industry-standard 25 * 25 * 4MM high sensitivity GPS antenna
- UART / TTL, 232 level, USB2.0 optional interface
- KDS 0.5ppm high-precision TCXO
- Built-in RTC crystal and picofarads capacitance faster hot start
- Built-in EEPROM, free rich configuration parameters
- 5 Hz positioning update rate
- Support AssistNow Online and AssistNow Offline A-GPS services
- GPS, GALILEO, SBAS (WAAS, EGNOS, MSAS, GAGAN) hybrid engine



The user can freely set:
1.Data Rate: 9600 bps (default) [Optional: 1200,2400,4800,19200,38400,57600,115200,230400,460800,921600]
2.output statement: NMEA 0183 V3.0 (GGA, GSA, GSV, RMC, VTG, GLL) protocol data can be arbitrarily set match.
3.Data refresh rate: 1Hz-5Hz refresh rate.

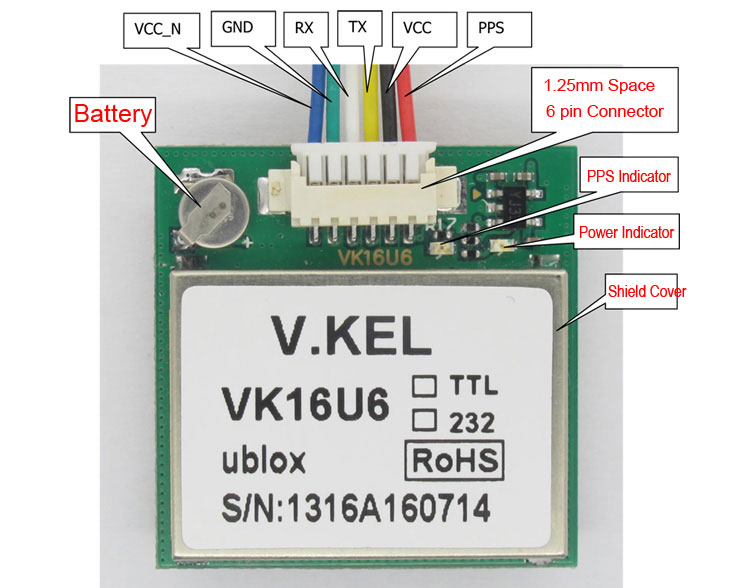

4.PPS indicator: Do not position before the light is on or off; positioning flashes.
5.AGPS: Support independent auxiliary positioning system.
6. Enable control: support external IO trigger the switching state of the control module.
7.satellite quality control: a rich set of satellite quality control and prevent elegant software settings.
8.scenarios: from the walking mode - Car mode - static mode - portable mode - airborne mode and 2D & 3D locate the user can freely set.

Description:
- Type: VK16U6
- The main chip: ublox,
- C / A code 1.023MHz code stream
- Receive bands: L1 [1575.42 MHz]
- Tracking channels: 50
- Support DGPS [WAAS, EGNOS and MSAS]
- Positioning performance
- 2D plane: 5m [average]
- 2D plane: 3.5m [average], DGPS auxiliary.
- Drift: <0.02m / s
- Timing accuracy: 1us
- Reference coordinate system: WGS-84
- Maximum Altitude: 18,000 m
- Maximum speed: 500 m / s
- Acceleration: <4g
- Electrical properties:
- Tracking Sensitivity:-162dBm
- Acquisition sensitivity:-146dBm
- Cold start time: 32s [average]
- Warm start: 32s [average]
- Hot start time: 1s [average]
- Recollection Time: 0.1s [average]
-Operating  temperature: -30 Degree to 80 Degree
- Package size: 28 * 28 * 8.4mm;
- Line length 2m
- Output: Output data baud rate 9600bps
- Protocol data output SiRF binary data or NMEA 0183 V3.0 (GGA, GSA, GSV, RMC, VTG)

Package Included:
- VK16U6 Ublox GPS Module
