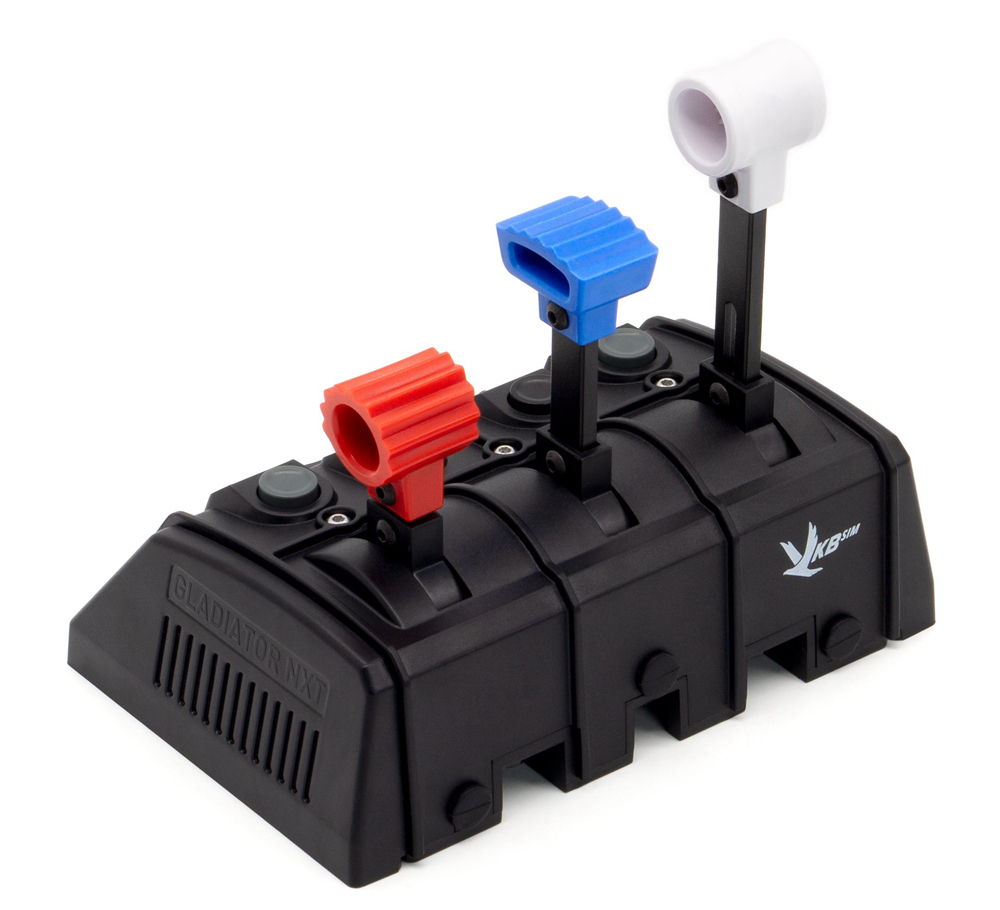

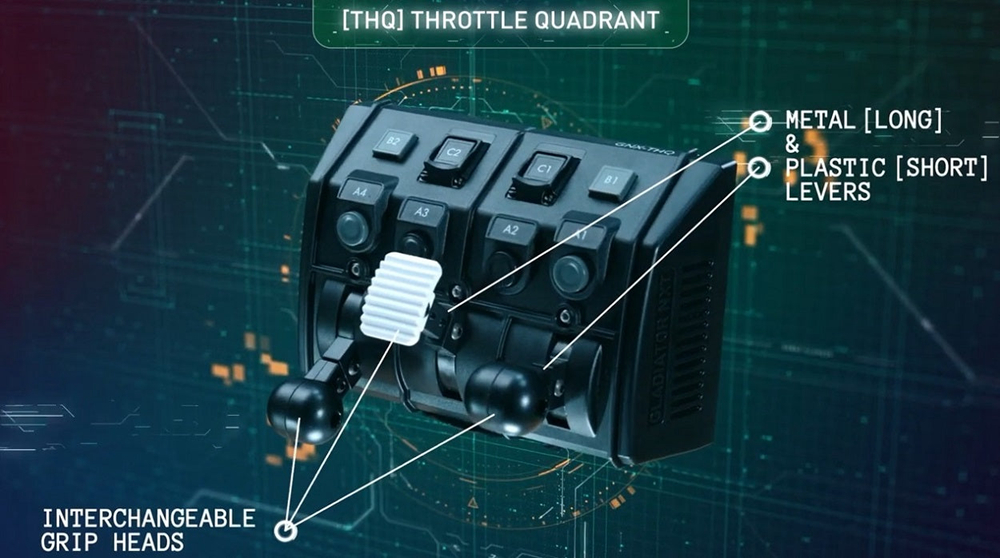

GNX THQ (Throttle Quadrant):
Description:
Tabletop module. Can be attached side-by-side to:
- Gladiator NXT joystick base (from either side)
- Gladiator NXT EVO Omni Throttle (from the opposite side of the OTA elbow)
- SEM modules (max number of SEM modules in system – 4x)
- THQ modules (max number of THQ modules in system – 4x)

Features:
- 3 Analog axes (w/ clutch dampers and adjustable length/height of axis levers)
- 8 Push buttons
- 5 Interchangeable axis lever heads (different colors/shape)
- Up to 4 GNX THQ modules can be connected, providing 12 analog axes
- Newly developed VKB Njoy 32NG firmware allows for 20 analog axes to be recognized in Windows as 3 joysticks (2 w/ 8 axes, plus 1 w/ 4 axes)

Connectivity:
- Included: GNX Module-to-Module Interface Cable.
* Used when connecting/attaching GNX modules directly to a Gladiator NXT/EVO joystick or GNX module
- Not included: GNX USB Controller (HID-Main).
* Required when connecting GNX Modules directly to the PC via USB cable
* Required when the total amount of analog axes per GNX device combo exceeds eight; must be then directly connected to the PC via USB cable instead

Warranty:
- 2 Years

Compatible with:
- Gladiator NXT
- UCM Stronghold
- GNX USB Controller (HID-Main)
- Recommended GNX MFH (Multi Functional Holder) in order to mount module

Instructions:
https://www.youtube.com/channel/UCAIB6Y3RLKEpanqiPv62fkA/videos

MFH Multifunctional Holder:
Description:
The GNX Multi-Functional Holder is designed to mount the GNX extension modules:
- Throttle Quadrant (THQ)
- Side Extension Module (GNX-SEM)
- Front Switchboard Module (FSM-GA)

Specifications:
- Attaches to either a single THQ or SEM module, or straddles two modules that have been connected together (does not attach to Gladiator NXT base)
- If not attached to any extension module, it can be used directly on the desk as a stand-alone holder
- If not used for vertical GNX modules, it provides sturdy support for smartphones, tablets, or keyboards

Compatible with:
- GNX THQ/V
- GNX FSM-GA
- GNX SEM/V

Instructions:
https://www.youtube.com/channel/UCAIB6Y3RLKEpanqiPv62fkA/videos

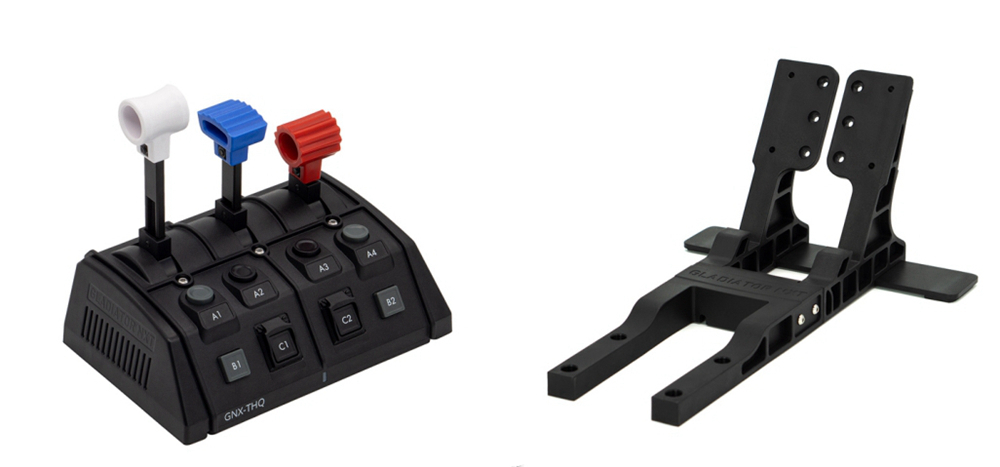

Package Included:
- 1 x Set of GNX-THQ
- 1 x MFH Multifunctional Holder

Note:
- It does not include a USB controller.

Tips:
When using the device, make sure that there are no devices with strong electromagnetic radiation nearby, such as mobile phones, Wi-Fi routers, radios and high-power appliances. Otherwise, it may interfere with the magnetoresistive sensor of the joystick, causing shaft failure, jitter, etc.

Packaging Details:
- G.W.: 7kg
