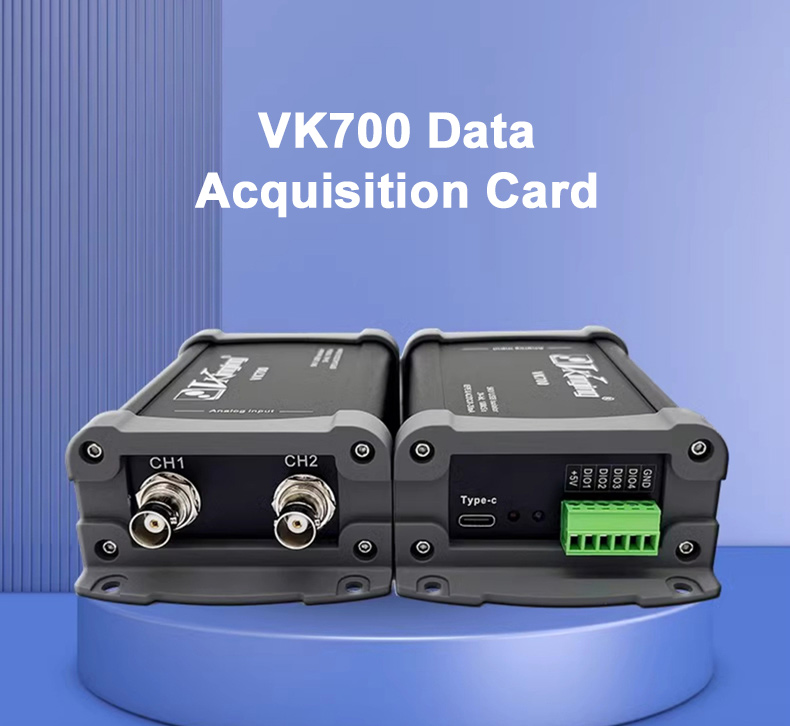

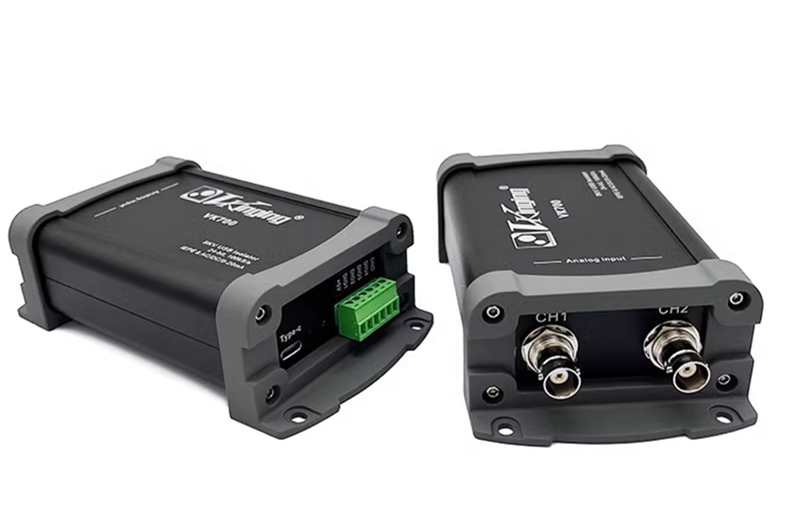

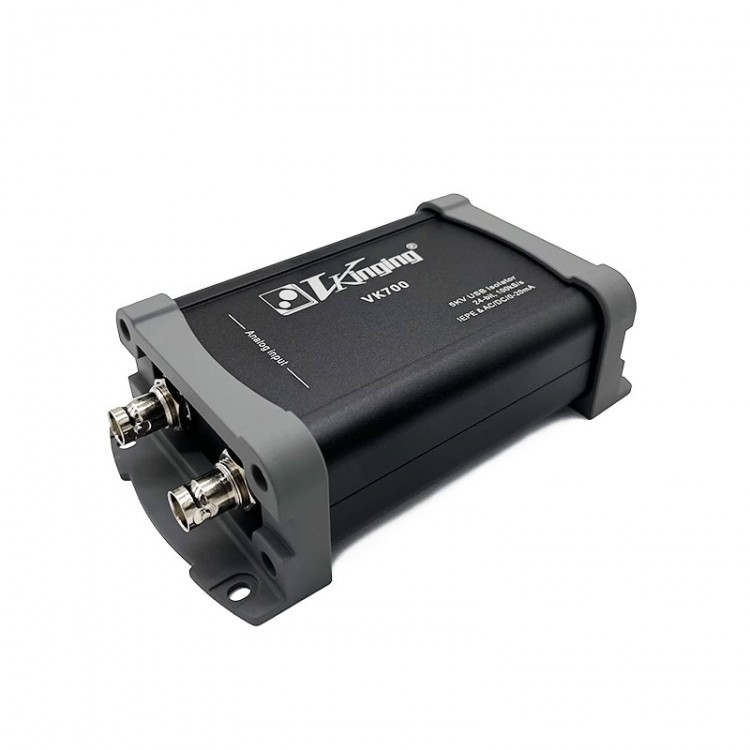

VKinging VK700 5KV USB Isolator 24bit Data Acquisition Card DAQ for 102.4K Sampling ADC/IEPE/0-20mA
Features:
* 24-bit resolution and 102.4KS/s per channel
* USB optoelectronic isolation: USB power supply isolation protection
* Three input modes are supported, including ADC, IEPE and 0-20mA
* Data from IEPE sensors can be acquired: 24V/4mA can be connected to IEPE/ICP sensors
* 24-bit ADC: Adopting multiple high-precision 24-bit ADC units
* 102.4Ksps sampling rate: With 102.4ksps sampling rate per channel, it has high speed, high resolution and high accuracy
* uV-level acquisition: 500 times precision pre-gain, ultra-low noise and high common mode rejection ratio
* 2CH synchronization: It supports 2-channel simultaneous acquisition, with wide measurement range and low temperature drift
* Current mode: 0-20mA to voltage 0-5V
* Single-ended to differential input: It has a true differential input module. The overall design is moisture-proof, shock-proof and anti-interference
* Strong technical support: VK700 isolated USB data acquisition card can work in common operating systems for WIN11/WIN10/WIN7/LINUX and the like. It provides a dynamic link library for common programming languages such as Labview, Python, VC, C#, C++Builder, Qt, VB, Delphi, Labwindows and Matlab. The programming function interface is simple and easy to use, making it easy to write applications. Labview, Python, VC, C#, C++Builder, Qt, VB, Delphi, Labwindows, Matlab and other routines are available. The data collected by its software is saved as an EXCLE file
* Widely used: It can be applied to big data cloud computing, signal trigger acquisition system, multi-card data acquisition, Internet of Things information system, high-resolution signal measurement, etc. It is suitable for marine transportation, aerospace, medical and health, clean energy, industrial automation and scientific research projects
* The VK700 isolated USB DAQ card uses industrial-grade devices. It has low temperature drift and strong anti-interference ability. It can be adapted to the application of strong industrial interference, and has the advantages of shockproof and anti-interference
Package Included:
* 1 x DAQ card
Packaging Details:
* Weight: 0.6kg
