VKINGING VK7015W Wifi Data Acquisition Card DAQ Card Supports 24Bit 16CH 32K Synchronous Acquisition
Description:

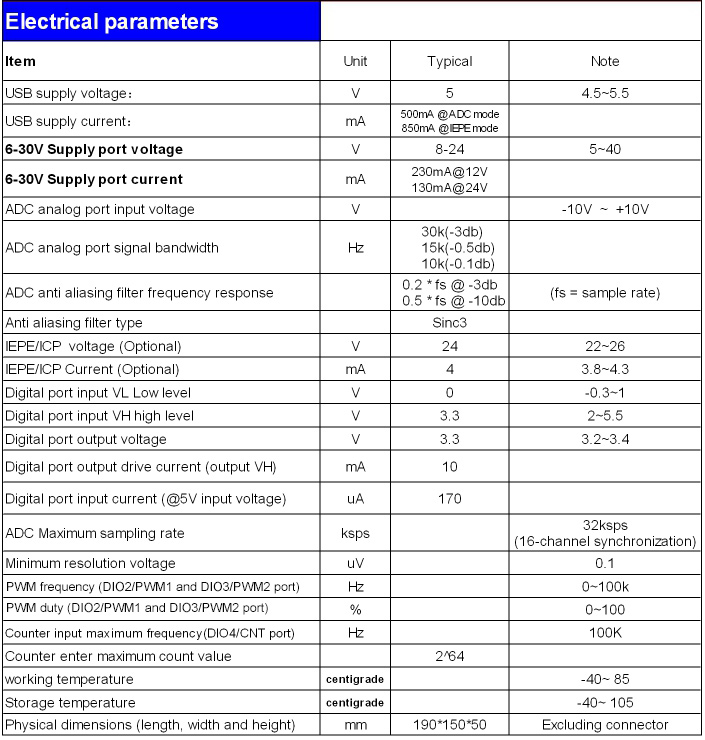

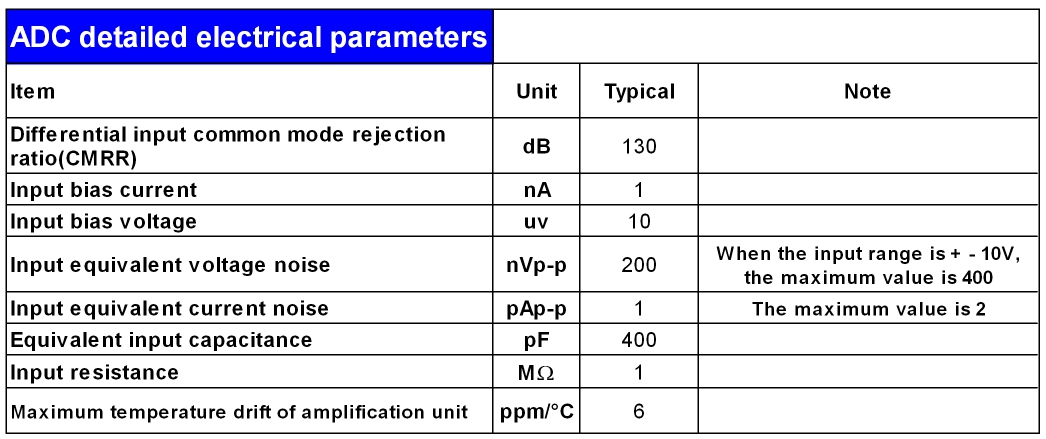

VK7015W is a WIFI high-speed data acquisition card with 16 channel inputs, 24 bit resolution, a single channel maximum sampling rate of 32ksps, a total of 512ksps for 16 channel synchronization, precision pre gain amplification and integrated IEPE/ICP hardware support. Using multiple high-precision 24-bit ADC units and preamplifier modules that have been developed in cooperation with our company for many years, the data acquisition card boasts high speed, high resolution, high accuracy, ultra-low noise, high rejection ratio, wide measurement range and low temperature drift. It is suitable for various occasions of precision high-speed acquisition.
Applications:
* Signal trigger acquisition system
* Internet of Things information acquisition system
* Networking measurement system
* High resolution signal measurement
IEPE Mode:
* This acquisition card can be optionally equipped with IEPE/ICP hardware functions.
* The collector card is internally equipped with a 24V power supply unit, a constant current drive, and a receiving unit, and each channel can be individually switched to the commonly used "analog input mode" or "IEPE mode" through hardware jumper settings.
* In IEPE mode, the output is 24V 4mA (compatible with 2mA).
* 16 channels can be independently configured.
Software:
The data acquisition card can work in common operating systems such as WIN11/Win10/WIN7, LINUX, etc., and provide dynamic link libraries called by common programming languages such as Python, VB, VC, C#, C++Builder, VB, Delphi, Labview/Labwindows and Matlab. It is simple and easy to use its programming function interface, making it easy to write applications. Routines for Python, VB, VC, C#, C++Builder, VB, Delphi, Labview/Labwindows and Matlab can be provided.
Package Included:
* 1 x Acquisition card
* 1 x 1M/3.3FT gold-plated oxygen free copper data cable
Note:
* Please contact us for data packages including user manual after purchasing. Thank you!
* SD card is not included.
