VMR48 5.8G Video Mobile Receiver 48CH VTX Receiver FPV RC Receiver for Android Phones

VMR48 5.8G Video Mobile Receiver 48CH VTX Receiver FPV RC Receiver for Android Phones

Description:
VMR48 is a 5.8G AV wireless image to USB transmission module. Input standard CVBS (NTSC and PAL) image signal, and VMR48 receives the AV signal from a 5.8G video transmitter and sends it to the mobile client via USB for display (for Android).

Characteristics:
- Low image delay, strong anti-interference, and good device compatibility
- Platform client software for Android can send and receive data and other functions on mobile devices
- VMR48 can be widely compatible with various smart devices. It can be used in the field of remote control cameras, forwarding TV signals to mobile phones and tablets, and aerial photography

Product Features:
1. Low latency (≤60ms); customized for FPV racer and aerial photography
2. Image frame rate: 25~30 fps
3. AV image transmission resolution: 640x480
4. Small size: 60 x 40 x 15mm/2.4 x 1.6 x 0.6"
5. 5.8G integrated 48ch frequency video receiver with race-band
6. CNC aluminum alloy shell for better cooling effect and anti-interference ability
7. Integrated OLED display can display voltage of external power supply, transmission signal strength and image transmission frequency point at the same time
8. With DVR function, video can be recorded while sending back images
9. Support multi device to view the real-time video via 2.4G wifi hotspot

Specifications:
- Working voltage: 6V-12V
- Working current: ≤ 480mA
- Boot time: 10 second±2 second
- Communication protocol: UART/GPIO
- Boot time: ≤30S ±2S
- Signal input format: CVBS and AV video signal
- Image Resolution: VGA 640x480; QVGA 320x240
- Image frame rate: 30fps (NTSC); 25fps at PAL
- Channel : 48CH
- Receiving Sensitivity : -90dBm
- Working Temperature: -10℃ to 65℃
- Size: 60 x 40 x 15mm/2.4 x 1.6 x 0.6"

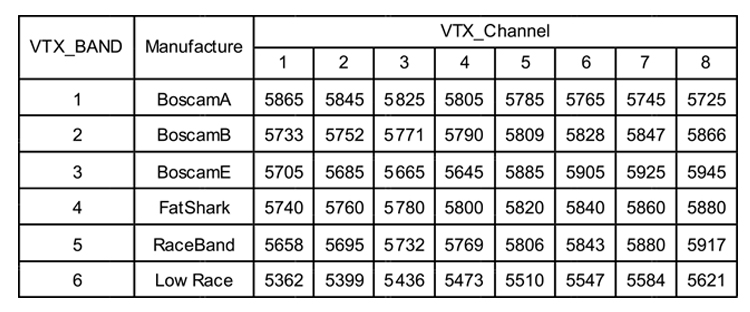

Support VTX Frequency:


Note:
- Battery is not included. 3S lithium battery 11.1V is recommended (and you can use a 12V power bank to power the VMR48 receiver, and at the same time a phone for Android can be charged).
- Phones and tablets for Apple is not supported.

Applications:
1. Use an smartphone for Android as a VR screen to receive wireless AV images.
2. A smartphone for Android is used as a FPV display fixed on the remote control.

Download English Manual Here:
http://www.happymodel.cn/download/VMR48_Manual_EN.pdf

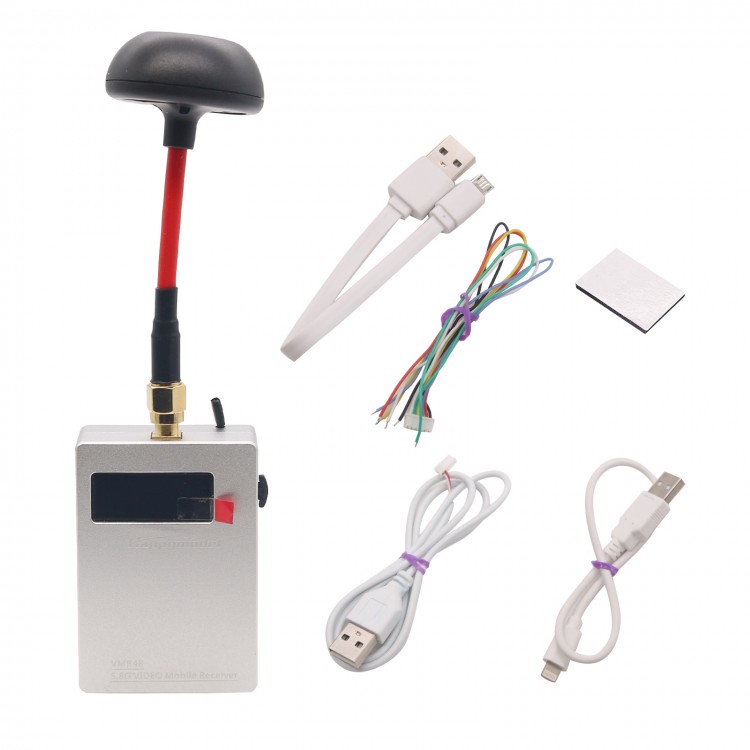

Package Included:
- 1 x USB Cable
- 1 x VTX Receiver
- 1 x Antenna
- 1 x Adhesive Tape
