VMS-3000-TR Soil Temperature Humidity Sensor Temperature And Humidity Transmitter RS485 Output

VMS-3000-TR Soil Temperature Humidity Sensor Temperature And Humidity Transmitter RS485 Output

Features:
- High-precision soil detection sensor detects humidity and temperature.
- Imported chip enables accurate measurement. Imported high-quality chips are used inside the sensor. Low power consumption, high sensitivity, stable signal.
- IP68 waterproof and dustproof: The whole body is waterproof and dustproof to ensure the long-term operation of the components.
- Support wireless remote viewing.
- Has helped 50000+ agricultural users to monitor. Perfect solution of smart agriculture.
- Adopting the new generation of international TDR measurement method, the accuracy can reach within 3%. Electromagnetic non-contact measurement method, the product will not drift with time, greatly enhance product stability and extend service life.
- Scope of application: greenhouses, scientific experiments, flowers and vegetables, water-saving irrigation
- Epoxy resin vacuum filling: High-density epoxy resin is used for high-temperature vacuum filling between the probe and the body, which can prevent moisture from entering the inside of the body and has a better sealing performance.
- Made of 316 stainless steel, the probe is rust-proof, electrolytic, and salt-alkali-resistant, ensuring the long-term operation of the probe. Therefore, it is suitable for all kinds of soil.
- This sensor can be used with cloud platform for VEMSEE.

Product Parameters:

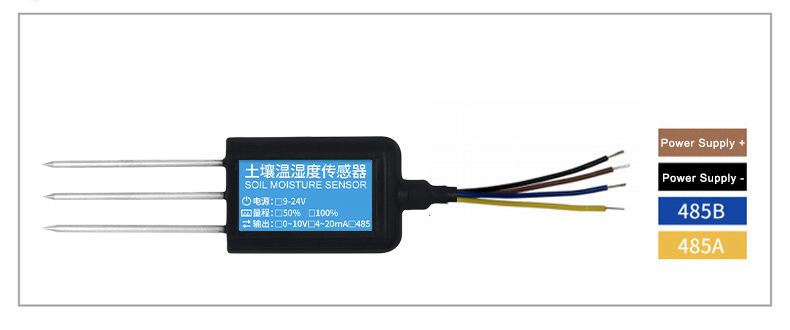

- Power supply voltage: RS485: 4.5-30v
- Soil moisture range: RS485: range: 0-100%, resolution 0.1%; within 0-50%, resolution 2%, within 50-100%, resolution 3%
- Protection level: IP68 can be used for a long time when immersed in water
- Probe material: anti-corrosion special electrode
- Sealing material: black flame-retardant epoxy resin

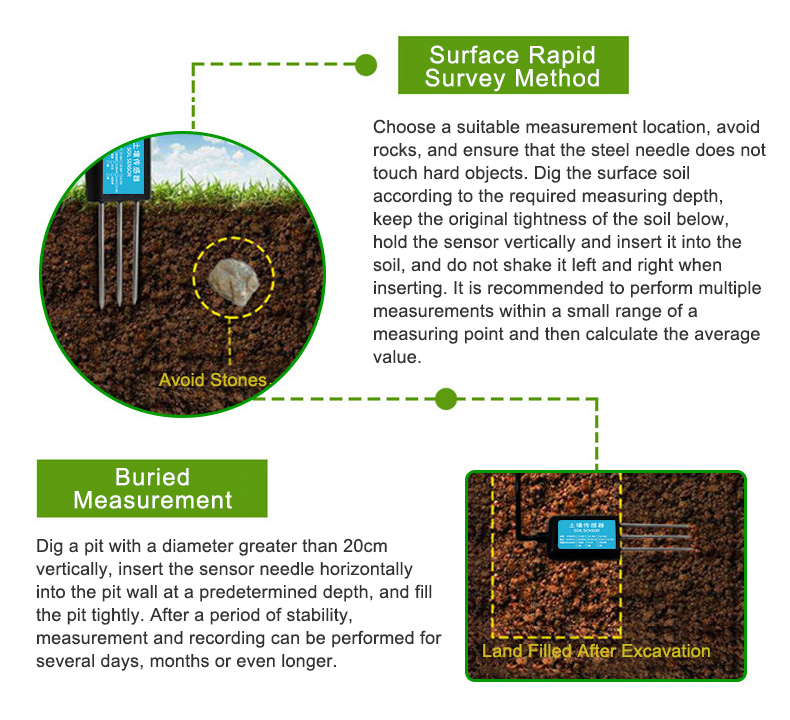

- Installation method: all buried or probe inserted into the measured medium
- Default cable length: 2 meters

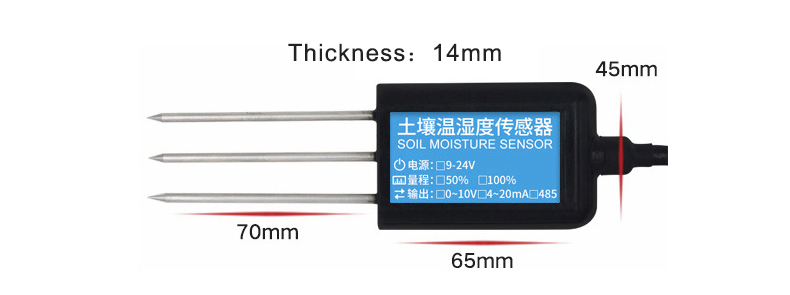

- Dimensions: 135 x 45 x 14mm (LxWxThickness)

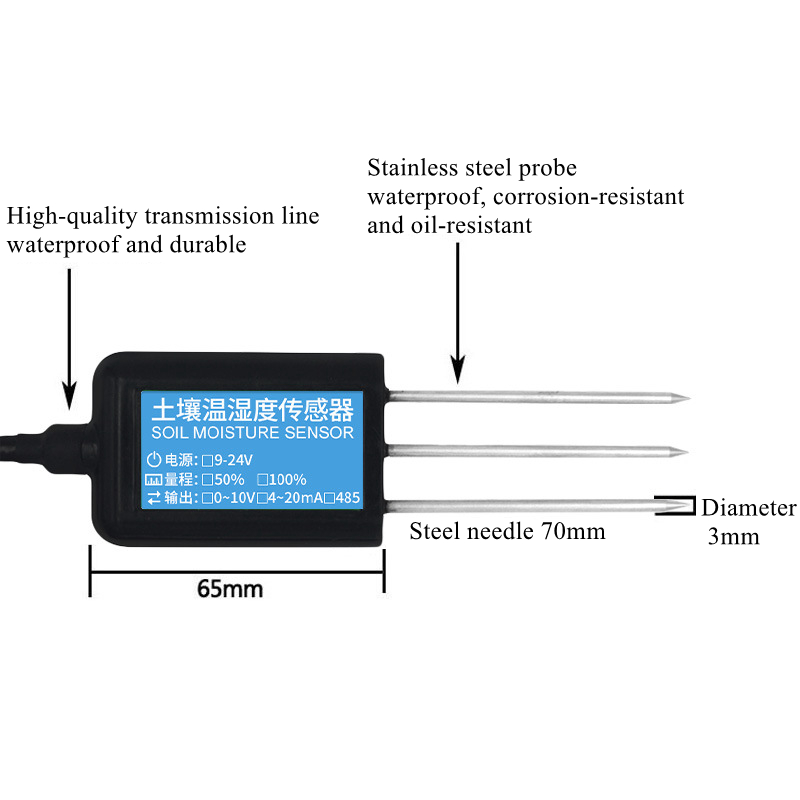

- Electrode length: 70mm
- Measuring principle: soil moisture TDR method
- Measurement method: In-situ soil insertion or immersion in culture medium/water
- Applicable scenarios: greenhouses, scientific experiments, flowers and vegetables, water-saving irrigation, grassland pastures, soil rapid testing, plant cultivation, sewage treatment, precision agriculture, etc.

Package Included:
- 1 x Temperature Humidity Sensor

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
