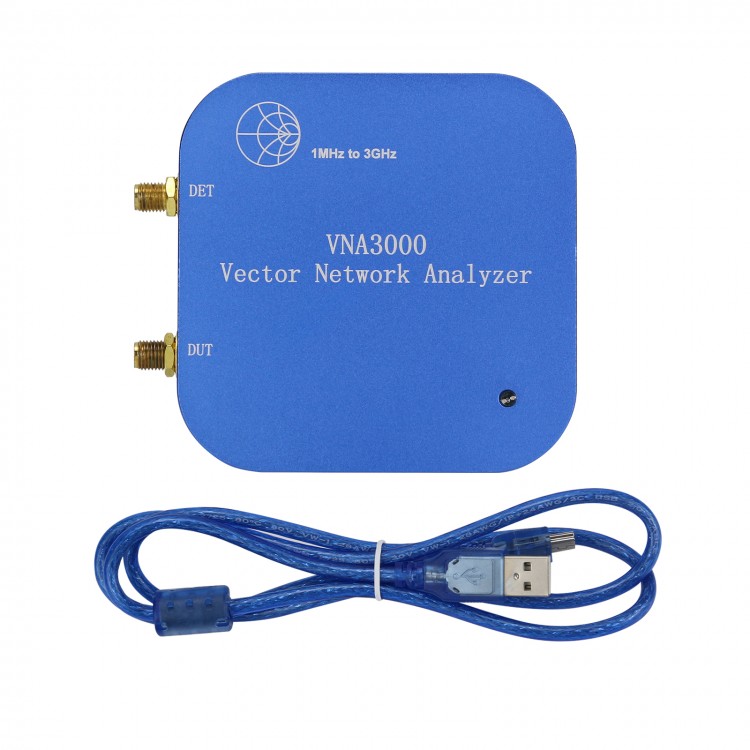

VNA3000 1MHz to 3GHz Vector Network Analyzer Antenna Analyzer for Bluetooth Wifi 2.4G Antenna Test
What is VNA3000?
VNA3000 is a portable USB dual-port vector network analyzer. With the professional VNA-PC software, micro-lab, the device is able to measure the frequency range from 1MHz to 3000MHz.What is more important is that the device support dual ports which are both able to measure the S value of S11/S21.
VNA3000 is an improved version of miniVNA 3G. It is especially suitable for RF circuit matching and adjustment of Bluetooth, wifi, 2.4G, GPS, Beidou, IoT devices of various frequency bands, and security products of various frequency bands.
Software: micro-lab
The software, micro-lab,has internal calibrations functions for open/short/load/thru/isolation.What you need is only to prepare your own calibration kit accordingly and additionally.It supports the OS for both WINDOWS and LINUX. It is specially designed for easy understanding and operations. Another important feature is the data output could be the types of TOUCHSTONE/PDF/PNG/CSV.
Hardware:
The hardware of VNA3000 is technically designed for industrial standards. The case is specially designed and made of aluminum with prise dimensions using CNC tooling machine. With this case, the capability of anti-interference has been improved to a top level. Thanks for the hardware of VNA3000, the consistency and repeatability are in the top level in contrast to competitors' products. The another favorite advantage of hardware of VNA3000 is a real PORTABLE device.
Technical Specifications:
- Measure frequency range: 1MHz~3000MHz
- Tuning step: 3Hz
- Ports: two port
- Track noise: <0.1dB
- Dynamic range: 60~70dB
- Resistance range: 1~1000ohm
- Amplitude accuracy: Amplitude uncertainty < 0.1dB
- Calibration: SOLT (Open/Short/Load/Thru)
- DATA output format: Touchstone/PDF/PNG/CSV
- DATA input format: Touchstone
- OS (for software): for Windows and LINUX
- RF Port connector type: SMA
- Power supply: USB
- Size: 8 x 8 x 1.7cm/3.1 x 3.1 x 0.7"
- Weight: 97g/0.2lb
Download Software and User Manual:
http://www.mtinst.com/wiki/index.php/VNA3000
Package Included:
- 1 x Vector Network Analyzer
- 1 x USB Cable
- 1 x Tool Box
Note:
- Calibration kit and SMA cable are not included.
