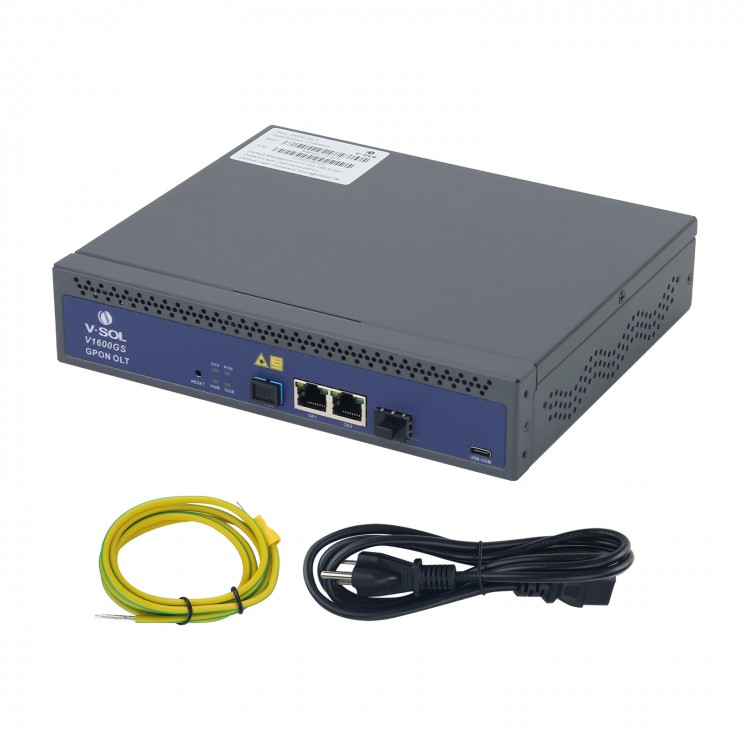

VSOL V1600GS 1 Port GPON OLT Optical Line Terminal w/ 1 PON for 20KM FTTH SOHO Small Business Office

VSOL V1600GS 1 Port GPON OLT Optical Line Terminal w/ 1 PON for 20KM FTTH SOHO Small Business Office

Description:
V1600GS is a box-type GPON OLT with one PON port. The price of V1600GS is very attractive and the performance is very strong. The splitting ratio of its PON port is 1:128, and the farthest transmission distance is 20KM. Its uplink and downlink bandwidth is as high as: 1.25Gbps/2.5Gbps. V1600GS can be widely used in FTTH, SOHO, small business office and other application scenarios.

Features:
* High performance chipset
* Built-in PON optic module
* Mini metal shell
* Easy deployment
* 10GE (SFP+) uplink

Technical Specifications:
Shape:
* Chassis: 1U

Uplink:
* Quantity: 3
* RJ45 (GE): 2
* SFP (GE)/SFP+ (10GE): 1

GPON PON Port Specifications:
* Quantity: 1
* Fiber type: 9/125μm SM
* Connectors: SC/UPC, Class C+++
* GPON PON port rate: uplink 1.244Gbps, downlink 2.488Gbps
* Wavelength: TX 1490nm, RX 1310nm
* Maximum splitting ratio: 1:128
* Transmission distance: 20KM

Other Parameters:
* Management port: 1 x CONSOLE port
* Backplane bandwidth: 16Gbps
* Throughput: 23.808Mpps
* Management mode: Console/WEB/Telnet/CLI
* Lightning protection level: 4KV (power supply) and 1KV (interface)

Management Functions:
* Telnet, CLI and WEB
* Port status monitoring and configuration management
* Online ONT configuration and management
* User management
* Alarm management

Layer 2 Switching Features:
* 1K Mac address
* Support 4096 VLANs
* Support port VLAN
* Support VLAN tag/Un-tag, VLAN transparent transmission
* Support for port-based storm control
* Support port isolation
* Support port rate limiting
* Supports 802.1D and 802.1W
* Access control lists
* IEEE802.x flow control
* Port stability statistics and monitoring

GPON Features:
* Tcont DBA
* Gemport traffic
* Comply with ITU-T984.x standard
* The transmission distance can reach 20KM
* Support data encryption, multicast, port VLAN, separation, etc.
* Support ONT automatic discovery/link detection/software remote upgrade
* Support VLAN division and user separation to avoid broadcast storms
* Support power-off alarm function, making it convenient to detect link problems
* Support anti-broadcast storm function

Dimensions (L*W*H):
* 224mm*199mm*43.6mm

Weight:
* Net weight of single power supply: 1.07kg

Power Supply:
* DC 12V/2.5A
* AC 85~264V, 47/60Hz (optional)

Operating Temperature:
* 0℃~+55℃

Storage Temperature:
* -40℃ to 85℃

Relative Humidity:
* 10~85% (non-condensing)

Package Included:
* 1 x Set of V1600GS GPON OLT

Packaging Details:
* Weight: 2kg
