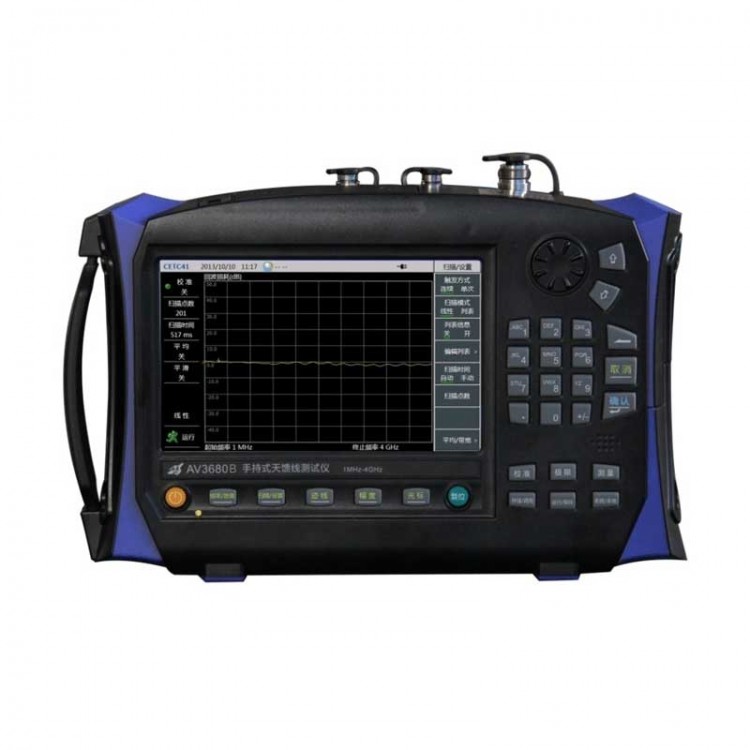

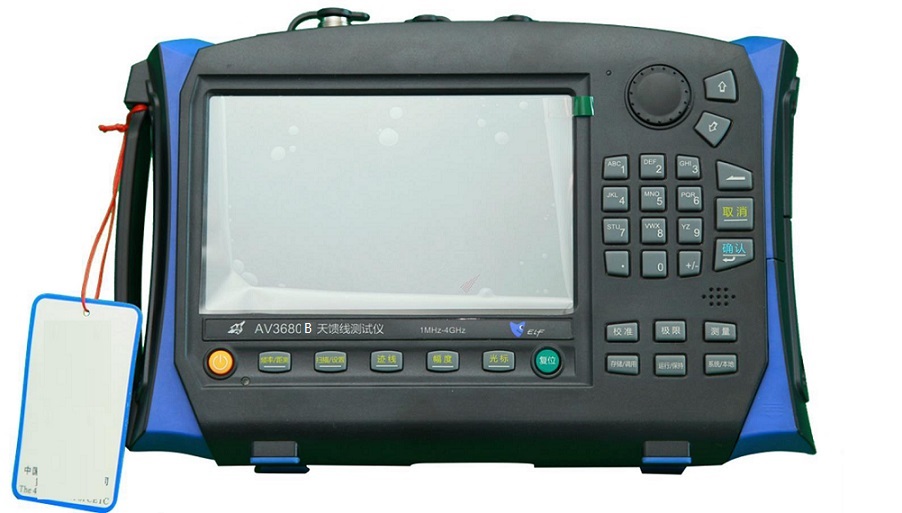

VSWR Meter AV3680B Site Master as Anritsu Antenna Analyzer1MHz～8GHz

VSWR Meter AV3680B Site Master as Anritsu Antenna Analyzer1MHz～8GHz

Product Description:
- Frequency Domain Reflectometer (FDR) is similar to Time Domain Reflectometer (TDR) in the name,and both are used for measurement of transmission line.TDR sends excitation signal of DC pulse which can be used to measure the On/Off and off position of a cable but is insensitive to RF problems that may result in fault and performance degradation of RF communication equipment.
- While FDR adopts sweep signal for measurement,by getting time domain specification through complex mathematical operation,it may detect sight performance degradation of RF in system so as to do timely maintenance,thereby saving high maintenance cost of damage due to delayed repair of RF cable.

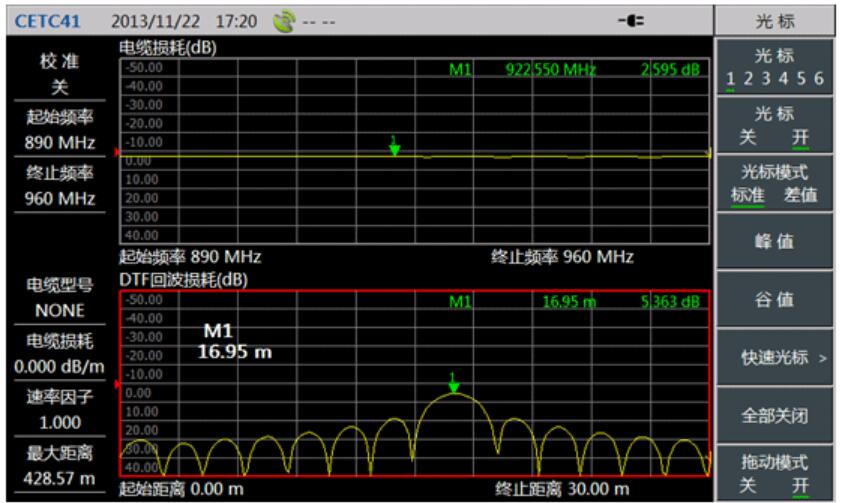

- For needs of daily maintenance of cable and antenna system,AV3680B Cable and Antenna Analyzer is designed to realize the measurement of SWR,return loss and cable loss, and can accurately locate the fault point for small problems to reduce failure with unique FDR technology and advanced function of fault location- SWR/fault location-return loss.
- It can help users make quick evaluation on the state of the transmission line and antenna system,improve the maintenance efficiency of the base station in operation and accelerate the installation and debugging process of the new base station during the installation,debugging and daily maintenance of the feeder line system.

Main Features:

- Automatic adjustment of screen brightness.AV3680B Cable and Antenna Analyzer can adjust the backlighting of the LCD automatically according to the environment.The users can also adjust the backlighting manually.

- High measuring speed.The top measuring speed as high as 1ms/point

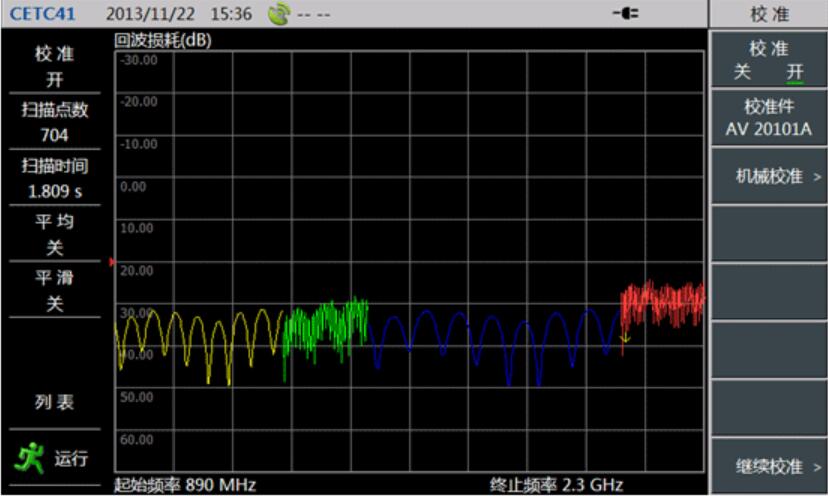

- Support list sweep.The users can sweep multiple frequency bands they are concerned about,every frequency band can be set with different parameters,such as sweep point,IF bandwidth, etc.

- GPS location function.AV3680B Cable and Antenna Analyzer has built-in GPS receiver,the users can get their current location information through the external antenna.

- Support touch screen operation.AV3680B Cable and Antenna Analyzer has a 7-inch LCD touch screen,all the common operations can be done through it.

- Test data storage and playback.AV3689B Cable and Antenna Analyzer can store the test data to the internal FLAH memory, external USB memory and SD card.

- PC data transmission interface.AV3680B Cable and Antenna Analyzer provides mini-USB interface which can be connected to PC through USB cable to realize the download of test data.It also provides the LAN interface to communicate with PC.

- Power measurement.AV3680B has the power measurement option which will realize accurate power measurement through external USB CW power sensor.

Specification:
- Mode:AV3680B
- Frequency range:1MHz～8GHz
- Initial frequency error:±2.5×10-6 (23℃)
- Frequency temperature stability:±1×10-6/10℃(than 23℃)
- Frequency resolution:1kHz
- Directivity:≥42dB(1MHz~6MHz);≥36dB(6MHz~8MHz);
- Source matching:≥31dB
- Reflected follower:±0.08dB
- Power consumption:<=18W(not charge the battery);<=54W(charge the battery)
- Scanning time:1ms/frequency point(10kHz IF bandwidth)
- Power adapter:AC power;110V(1±10％) or 220V（1±10％),50Hz（1±5％）
- Built-in battery:working time:5 hours(70% screen brightness)
- Working temperature:-10℃～+50℃
- Storage temperature:-40℃～+70℃
- Electromagnetic compatibility: complies with GJB3947A-2009 specified requirements
- Testing interface:N type
- 10MHz input/Output port:BNC
- GPS antenna interface:BNC
- Size:205x295x70mm(HxWxD)
- Weight:2.5kg

Package List:
- 1 x  VSWR Meter AV3680B
- 1 x  Power cable
- 1 x  Power adapter
- 1 x  USB cable
- 1 x  Car charger
- 1 x  Certificate
- 1 x  User manual
