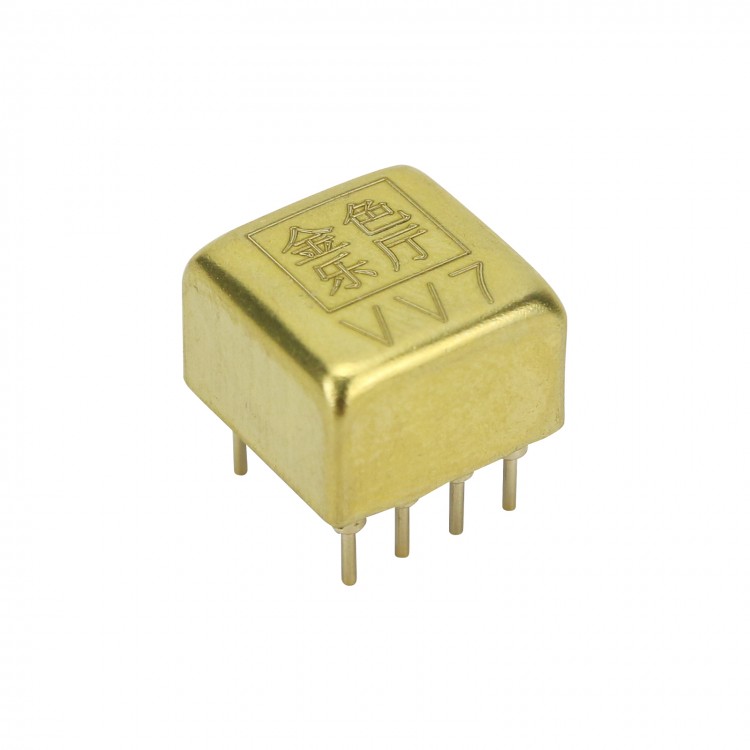

VV7 Operational Amplifier Single Op Amp to Upgrade MUSES03 AMP9927 OP05AT V5i-S SS3601SQ OPA627BP
Description:
VV7 single op amp is a newly developed flagship J-FET input type high-quality audiophile op amp. It can accurately restore the rich details, dynamic changes and transparent natural musicality of the sound scene, and well present the softness, flatness and listening resistance of the three-frequency connection, making the sound more balanced and durable.
In the actual evaluation, the VV7 sound quality is very transparent and clean, and the detail separation is excellent. The rare sweetness and pleasantness in its sound makes people feel very comfortable, the three-frequency performance is in place, the details are dynamically restored to reality, the sound scene is large but the tension is moderate, people are surrounded by music and can enjoy the emotions brought by music.
On the whole, the performance of VV7 can be summarized as 'clean, transparent, sweet, balanced, atmospheric, natural and durable'. The three-band separation and flexibility of two VV7 single op amps converted to dual op amps will be better than those of one VV8.
Specifications:
- Amplifier type: dedicated to hifi audio
- Number of amplifier channels: single op amp
- Rated voltage: ±3.5 to ±18V
- Conversion rate: 18V/μs
- Bandwidth: 8MHz
- Low Noise: 2.6nV/√Hz at 1kHz
- Low Distortion: 0.000038% at 1kHz
- Current - Input Bias: 25pA
- Voltage - Input Offset: 2.8mV
- Current - Output/Channel: 50mA
- Working temperature: -40℃ to 85℃
- Package: Dual in-line gold seal module (suitable for replaceable standard in-line DIP8 package)
Package Included:
- 1 x VV7 Op Amp
