VXDAS VSP200 Power Scan Vehicle Super Probe Electrical System Circuit Tester

VXDAS VSP200 Power Scan Vehicle Super Probe Electrical System Circuit Tester




Product Description:

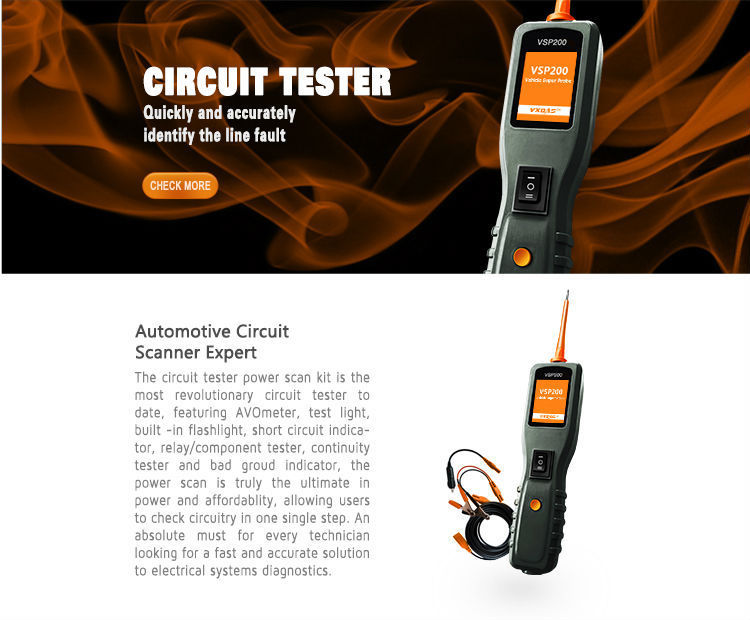

- The VXDAS VSP200 power scan kit is the most revolutionary circuit tester to date, featuring AVOmeter, test light, built -in flashlight, short circuit indicator, relay/component tester, continuity tester and bad groud indicator, the power scan is truly the ultimate in power and affordablity, allowing users to check circuitry in one single step.
- An absolute easy-to-use tool must for every technician looking for a fast and accurate solution to electrical systems diagnostics.
- VXDAS VSP200 Power Scan Tool VSP200 Electrical System Circuit Tester
- VXDAS VSP200 Power San Tool VSP200 Electrical System Diagnostics Circuit Tester is used as Power Probe for testing vehicle electrical circuit

Comparison between VSP200 and PS100:
- PS100 test without the diode but only the sound
- PS100 transforms sound waveform when testing the alternating current (AC) adapter, the sound varies as waveform changes, while VSP200 directly displays that.

Comparison between VSP200 and YD208:
- When testing the diode, YD208 can only display the negative while VSP200 shows the values.

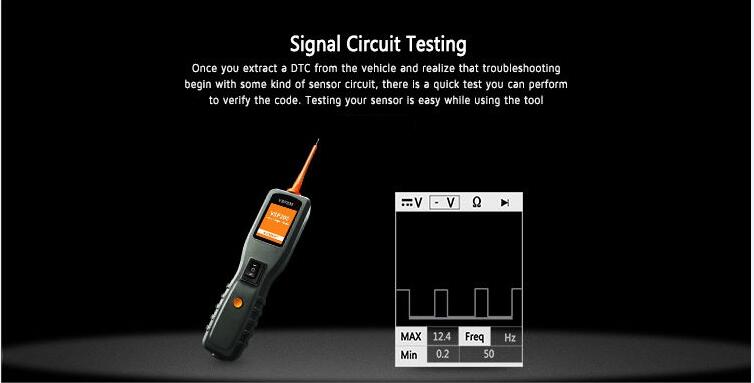

- When testing AC, YD208 only displays a square wave (an analog signal) while VSP200 can show the real waveform.

VXDAS VSP200 Circuit Tester Features:

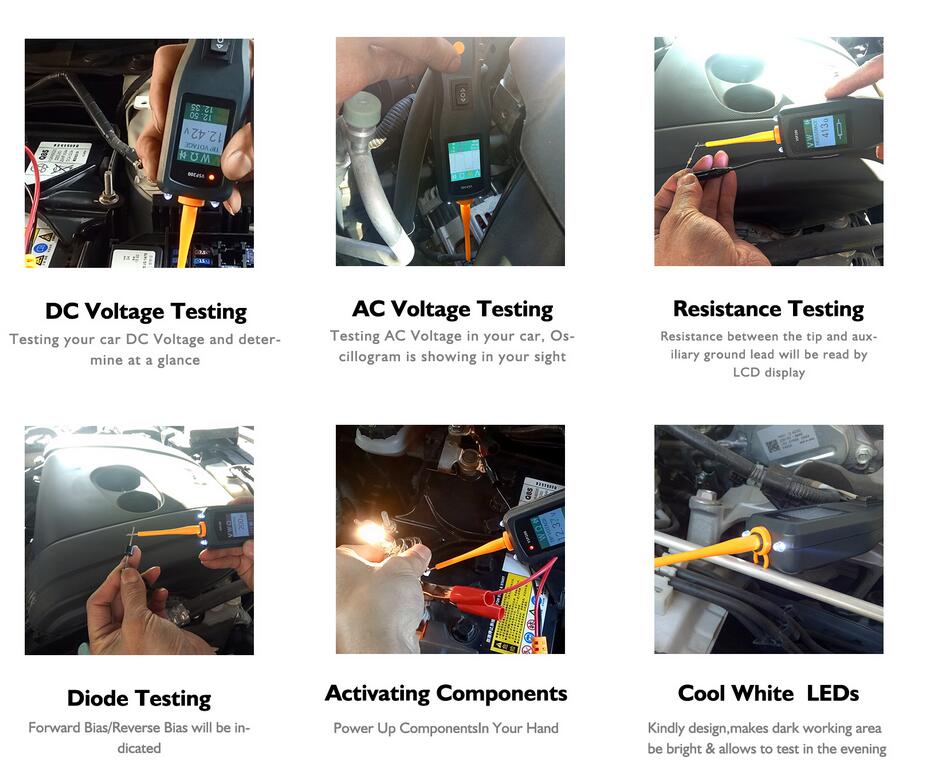

- Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation.
- Easy to read AV0 meter allows you to read voltage, current and resistance at the fingertip.
- With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
- Simultaneously uses the hot lead and the found lead to activate components right in your hand.
- Instantly identifies positive, negative and open circuits.
- Circuit breaker protected.
- Built-in flashlight enables you to work in the dark.
- Audio tone indicator allows for no-look menu scrolling once user are familiar with menu tone assignment.
- 20ft(extendable)cable provides excellent accessibility to test along the vehicle.
- Extremely easy to use and highly reliable.

VXDAS VSP200 Circuit Tester Bullet:
- 20 foot jumper lead
- Continuity tester
- Relay and component tester
- Works on 12-24v Sources
- Once you connect a power probe to the power source you'll have a multitude of testers right at your fingertips
- Bad ground indicator
- Short circuit tester

VXDAS VSP200 with Case and Accessories:
- The Ultimate in Circuit Testing
- The VXDAS VSP200 Circuit tester (Red) with the ability to supply Power or Ground with an indicator tone and bright-white LED headlamps.
- Features Digital Voltmeter, Min/Max, Audible Circuit Monitoring, 4mm Standard Banana Jack and Auxiliary Ground for component testing.
- Includes Case and 20 Foot Extension Lead and 12 Volt Power Port Adapter. Works with 12 - 24 VDC Systems.

VXDAS VSP200 Circuit Tester Specifications:
- Display: TFT color display (160*128dpi)
- Operating Temperature: 0 to 60 (32 to 140)
- External Power: 12.0 or 24.0 V power provided via vehicle battery

More information:Click here

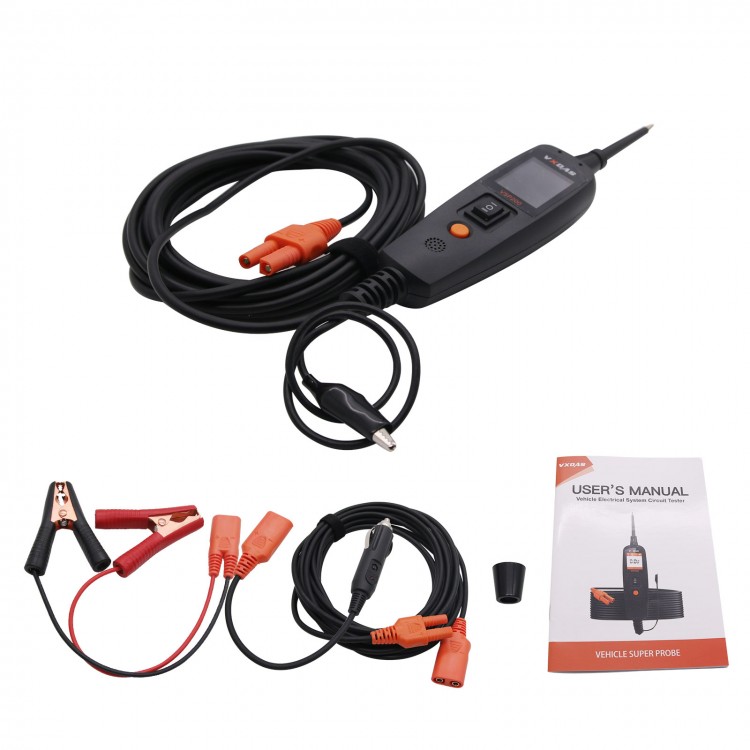

Package List:
- 1   x  VSP200 main unit
- 1   x  User manual
- 1   x  Cigarette lighter adapter
- 1   x  Battery hookup clips
- 1   x  Probe tip
- 1   x  20FT. extension cable
- 1   x  Rugged blow molded case
