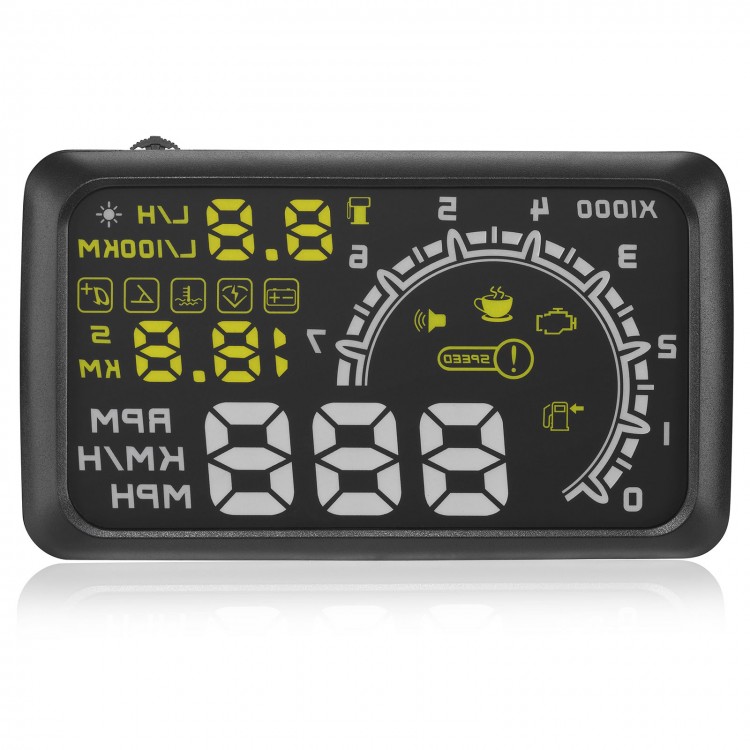

W02 5.5 inch Car HUD Head Up Display Projector Speeding Warning System OBDII Interface KM/h Car PC Driving Data

W02 5.5 inch Car HUD Head Up Display Projector Speeding Warning System OBDII Interface KM/h Car PC Driving Data

Description:
- The product is developed for safe driving of auto. When an auto is at high speed, especially at night, if the driver lowers his head to watch meters or audio display, he will not take effective measures in time when some emergencies appear suddenly. At that critical time, HUD reflects very exquisite care by projecting the important information of meters display on front windshield in auto moving, such as speed. Not only does it helps new driver of less experience to control the speed to avoid overspeed in some speed limit road section, but also it makes the driver read the data rapidly without transforming vision and keep the best watch state sobermindedly.
- HUD offers many functions that make you experience the speed as well as the pleasure of driving.
- Our product is designed by applying the latest and performance stable integrated circuits, besides all indicators are up to the standard. The product is unique appearance, fluent line, ultra-thin fuselage and eye-pleasing. It also adds a sense of beauty to your car.
- Please read the operating instruction detailedly before you use it so that you can take advantage of all functions as possible.

User manual: Click here

Main Futures:
- Plug and play. HUD can auto adapt to vehicle type which in line with OBDII or EUOBD(On-Board Diagnostic System).
- Comprehensive display. HUD can display many parameters at the same time as follows, vehicle speed, engine speed, water temperature (voltage, throttle valve position, ignition advance angle, time of 100 km acceleration),fuel consumption, mileage, low fuel tips, engine failure.
- Diversiform display mode. Driver can chose normal display mode, high- speed display mode and automatic display mode.
- Free switch. Km and mile can be switched freely to meet the need of each auto meter.
- Suitable size. The display area is 5.5 inches which is very clear for driver to read data.
- Automatic power on and off. Starting with the vehicle starting, stopping with the vehicle stopping to protect the vehicle’s battery. Moreover, we pre- serve the hand switch function to control the HUD.
- Flexible alarm mode. HUD can offer single-stage and four-stage overspeed alarm modes to choose to make driving safer.
- Engine speed alarm. It contributes to shift gear in time to save fuel also has significance to new driver.
- Flexible brightness adjustment. The brightness can be adjusted automatically or manually to reach the best state which is in harmony with the environment.

Main Technical Indicators
- Environment temperature: -400C—+800C
- Barometric press: 86—106 KPa
- Relative humidity: 10%—95%
- Environment voice: <=60 dB(A)
- Alarm of sound level:> =30dB(A)
- Work voltage: 9V~16Vdc(12Vdc/400mA)
- Size: 150*85*14 (mm)
- Weight : 278g

Note:
OBD2 Car HUD support OBD II Car:
- For Europe and North America,it only can be used for Vehicle/Car with OBD2 manufactured after 2003.For Asia, it only can be used for Cars with OBD2 manufactured after 2007.
- Do not Support OBD I and JOBD  (Japanese OBD) Car.

Package included:
- 1x Head up display
- 1x OBD II interface
- 1x Non-slip Mat
- 1x Reflection Film
- 1x User Manual
