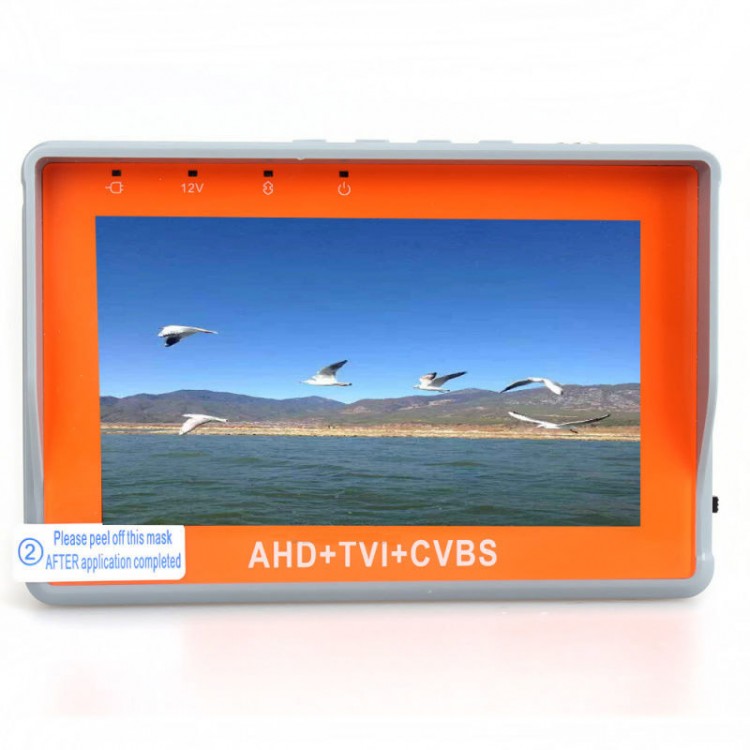

W43ATC Portable 1080P AHD+TVI+CVBS Analog CCTV Camera Tester DC12 Power Output

W43ATC Portable 1080P AHD+TVI+CVBS Analog CCTV Camera Tester DC12 Power Output

Description:
- This is the model IV6AT,Supports HD-AHD Camera+HD-TVI+CVBS camera 3-In-1 camera test
- Wristwear portable design,easy to take aprat
- Supports 720p,1080P AHD2.0 camera test
- Supports 720p,1080P TVI 2.0 camera test
- Supports CVBS Analogy camera test
- Supports UTP Cable test
- Supports 12v power output for camera test
- Supports Multi-language OSD:English/Chinese/Russian/Deutsch/France/Spanol/Portugal/

Specification;
Classic series. Highly equipped, the most cost effective choice.
(1) New generation 4.3inch LCD screen.
User can check the details of camera video during the process of installation.
(2) Equipped with 2600mAh Li-polymer battery, which has RoHS & CE certification.
Device can work 7 hours after a single charge.
12V 1A Output function can be helpful when no external power supply for the camera.
Video test Automatically identification with access AHD/TVI/CVBS Video signal
Automatic identification NTSC/PAL Format image signal
2600mAh li-polymer battery
High capacity li-polymer battery, charge time 4 hours, and work time 11 hours.
DC12 1A power output
Provide camera power temporary.
Network Cable test

Model:IV6AT
- Video System: NTSC/PAL Automatically recognize
- Display screen: 4.3inches
- Display screen Resolution: LCD 480*272P resolution
- Screen adjustment: Video display brightness, contrast saturation adjustable
- Video input: 1 channel BNC Video IN
- 12V power output 1A DC:Audio test
- Input audio signal, and played on the internal speaker
- External power supply:DC 5V（1A）
- Battery-powered: Built-in 3.7V li-polymer battery, Capacity 2600mAh
- Charge time: 4hours
- Battery working time 7 hours
- Power saving features:
- Low power consumption, automatic power off, Real-time display of battery level
