| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $288.02 | $282.14 | $273.33 | $261.57 | Contact US |
Walkera FPV iLook+ Camera with Boscam RX LCD5802 Monitor & Carbon Fiber Mount

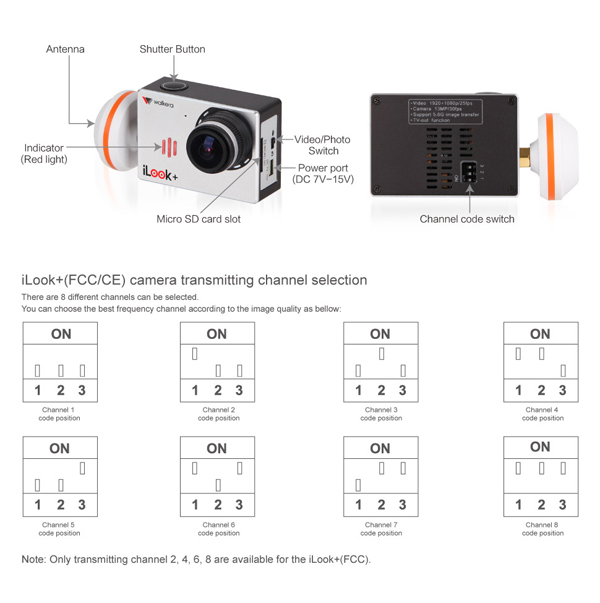

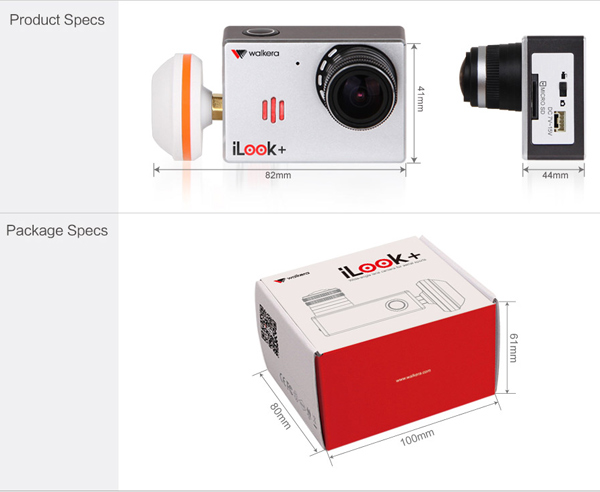

| Walkera FPV iLook + Camera |
Brand Name: Walkera
Item Name: iLook+ Camera
Video Resolution: HD 1920*1080P
Video Frame Rate: 30FPS
Video Format: MOV
Video Compressing Format: H.264
Image Pixel: 300
Resolution: 4032*3024 Pixel
Video Format: MJPG
Standby Power Loss: 1.33W
Working Power Loss: 1.9W
Supply Voltage: 3.7V-5V
Working Temperature: -10~+70℃
Lens Spec: 1/3’’
Lens Angle: 170°(MAX)
Weight: 125g
|
|
|
Low latency and long range FPV Support 5.8 Ghz wireless video link Support output Micro SD card Support G-2D and G-3D brushless gimbal Quick FPV assembly with built-in video transmitter Compatible with Fatshark and Walkera DEVO F7 |
||
| Boscam RX LCD5802 Monitor |
Built-in 5.8Ghz Dual diversity receiver automatically for best reception
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Built-in high performance Li-POLYMER Battery: 2450mAH/7.4V
Work status OSD display : RSSI indication ; Battery indicator;Channel indication
A key to automatic signal search
Support Chinese and English menu
Screen size: 7”
Screen type: TFT LCD Screen/long life, LED backlight
Resolution: 800*480
Brightness: 450cd/m2
View Angle: 140/120degree (Horizontal/Vertical)
Size: 180mm x 120mm x 50mm(Note:Sunshield height:28mm)
Working Voltage: DC 7~16V
Power Consumption: 650 mA @12V
Battery charging current : 850mA @12V ( max )
Working temperature: -10℃~+ 65 ℃
Connectors: SMA female(outer hole)
Antennas Connectors: SMA male (inner needle)
|
|
|
Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching.
Dual buffered AV outputs.
Can receive 2 different channels at the same time.
Not affect by 2.4GHz R/C Radios.
AV Receiver with Diversity inputs.
Small, light weight, durable.
4 Bands and total 32 Channels.
Built-in battery, easy to carry and outdoor use.
A key to automatic signal search,Simple operation.
Work status OSD display:Always be aware of the device working condition.
|
||
| FPV Monitor Carbon Fiber Holder |
Suitable for the transmitter with metal carry, and display mast have fixed nut.
Material: 2.5mm Thick Carbon fiber.
High-quality Aluminum Locknut.
Light weight, High strength, Firmly & foldable.
2.5mm Thick Firmly Carbon Fiber Foldable Bracket for FPV Display better Suit for Transmitter Flysky Futaba FF9,T8FG.
|
|
