Walkera QR X350 Pro FPV RC Quadcopter DEVO10 G-2D RX-LCD5802 iLook

Walkera QR X350 Pro FPV RC Quadcopter DEVO10 G-2D RX-LCD5802 iLook





Description:
- Brand Name: Walkera
- Item Name: QR X350 Pro
- Receiver: RX703
- Main Controller: DEVO-M
- Transmitter: DEVO 10 white edition
- Battery: 11.1V 5200mAh LIPO
- Gimbal support: G-2D
- Camera: FPV iLook camera

Walkera QR X350 Pro:
- Main rotor diameter: 556mm
- Main rotor blade length: 206mm
- Lenght: 289mm
- Width: 289mm
- Height: 200mm
- Brushless motor spec: WK-WS-28-008C
- Brushless ESC spec: WST-15A(G/R)
- Fight time: 25 minutes
- Control distance: up to 2 km / 1.24 miles
- Quick and easy assembly.
- Completely Ready to Fly.
- Gimbal ready for camera anti-vibration 2-axis stabilization (new Walkera G-2D).
- First Person View.
- FatShark glass compatible.
- WIFI option for smart phones.
- GPS and “One Key” Return to Home functions.
- GPS Auto Pilot functions.
- Failsafe auto RTH and Land.
- Low voltage protection.
- Easy to see with LEDs.
- Balance charger with world compatible wall adapter.

Devo 10 White Edition:
- Control distance: 2KM
- Encoder: 10-channel micro computer system.
- Frequency: 2.4GHz DSSS
- Output power: ≤10mW
- Current drain: 200mA(100mW)
- Transmitter power supply: NiMH 12V 1600mAh
- Output pulse: 1000-2000ms
- The DEVO-10 adopts 2.4GHz Direct Sequence  Spectrum(DSSS) technology and features automatic
- ID binding and ID assignment.It can also be customizedly set as fixed ID code.
- USB online update makes you always enjoy the lates programme.
- Adjustability of hi-frequency output power enjoys more personality and friendly environment.
- Wireless data transmission between two DEVO-10 Helps experience the training function.
- Up to 30-model data can be saved.
- DEVO-10 adjusting the gyro sensitivity makes hovering flight and fancy flight in an easy way.
- Shape design accords with human engineering and provides comfortable holding.
- Both the length and tension of the sticks can be adjustable.
- DEVO-10 can be freely switched among Mode1,2,3,4.
- DEVO-10 is suitable for helicopter and airplane,In the helicopter mode there are three flight modes ,each of which can be freely set and it's parameters can be personalizedly adjusted to meet the requirement for F3C or 3D aerobatic flight.

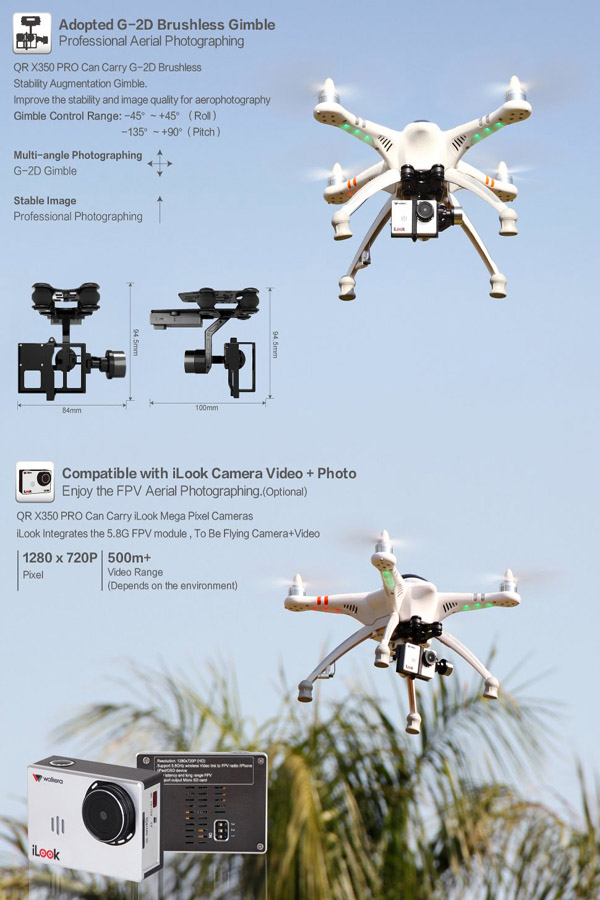

G-2D Brushless Gimble:
- Operating voltage: DC7.4-28V (recommended 12V,3S Lipo battery)
- Opetating current: 200mA-500mA(depends on the motor power and voltage supplied)
- Opetating temperature: -15℃-65℃
- Sensor technology: 3-axis MEMS gyro and accelerometer
- Max angular rate: 2000°/sec
- Max acceleration: 16g
- Frenquency: 2000Hz
- Motor driven frequency: 46 KHz(no noise smoothing drive)
- Control accuracy: 0.1°
- Control range: -45°-45°(roll)/-135°-90°(tilt)
- Applicable camera: Gopro Hero3
- Size: 100mm x 94.5mm x 84mm(LxWxH)
- Weight: 120g(Camera not included)
- Gopro Hero3 AV Line out
- Power voltage compensation available.
- Support motor drive side short circuit protection.
- Support initial roll and tilt customed.
- Support stick rate mode and position mode.
- Regular receiver accepted.

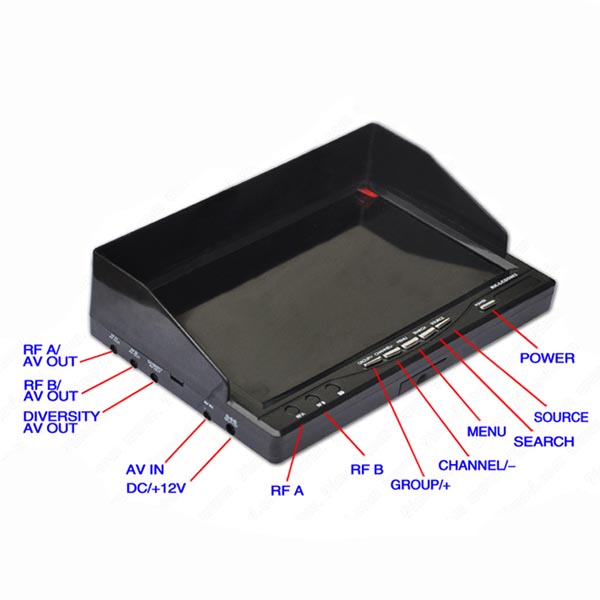

RX-LCD5802 5.8GHz LCD Diversity Receiver Monitor:
- Bulit-in 5.8Ghz Dual diversity receiver automatically for best reception.
- Built-in high performance Li-Polymer battery:2450mAH/7.4V.
- Work status OSD display: RSSI indication, battery indicator;channel indication
- A key to automatic signal search
- Support Chinese and English menu
- Size: 180mmx120mmx50mm (Note: Sunshield height 28mm)
- Working Voltage: DC 7~16V
- Power consumption: 650 mA@ 12V (Max)
- Working temperature: -10℃~ +65℃

FPV iLook camera:
- HD Resolution:720x1280P(HD)
- Low latency and long range FPV
- FatShark compatible (multi bands)
- Range with Fatshark goggle: TBA
- Range with DEVO F7: TBA
- Stable and high definition image transmission
- Support 5.8 Ghz wireless video link to 5.8G radio/iPhone/iPad/OSD device.
- Quick FPV assembly with built-in video transmitter.
- Support output Micro SD card.
- Support G-2D brushless gimbal.
- First Person View (FPV) flight and DVR recording.
- Battery Life: no internal battery, connects to external battery, example main flight battery.
- Collects Video and Photos.
- Frames Per Second: 30 fps
- Weight: 125g

Pls choose DHL or EMS (Package Weight > 2kg)

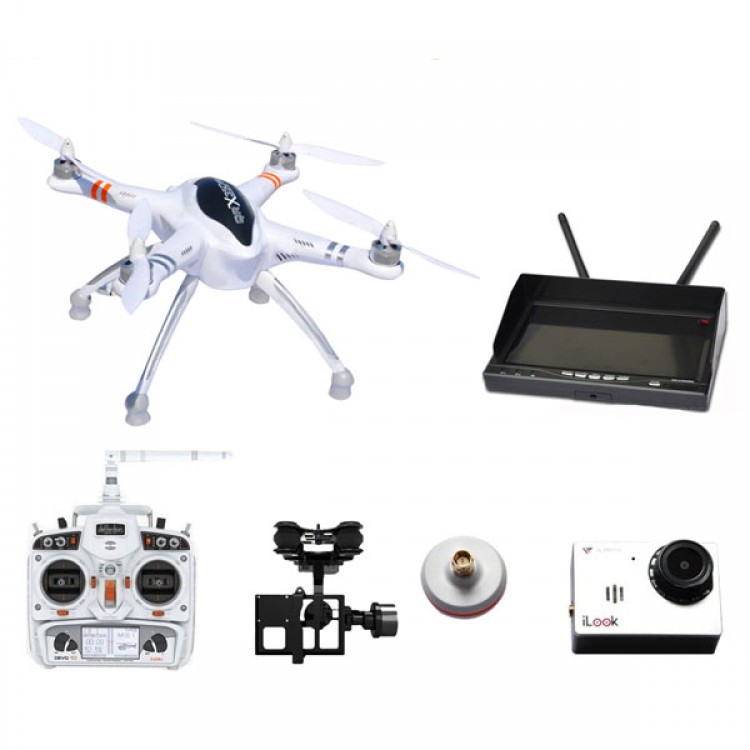

Package Included:
- 1 x Walkera QR X350 Pro RC Quadcopter
- 1 x Walkera Devo 10 transmitter
- 1 x RX703 Receiver
- 1 x RX-LCD5802
- 1 x G-2D camera gimbal
- 1 x FPV iLook camera
- 1 x FPV transmitter mount
- 1 x battery (Sweden Post)
- 1 x charger
