Walkera WK-DEVO-F7 DEVO F7 FPV Set 5.8G Real Time Image Transmittion Aerial w/ TX5803 & RX701 Receiver

Walkera WK-DEVO-F7 DEVO F7 FPV Set 5.8G Real Time Image Transmittion Aerial w/ TX5803 & RX701 Receiver



 DEVO F7 Features:

    The DEVO F7 adopts 2.4 GHz Direct Sequence Spread Spectrum (DSSS) technology and features automatic ID binding and ID assignment. It can also be customizedly set as fixed ID code
    5.8G real time image transmittion
    USB online update makes you always enjoy the latest firmware
    Adjustability of hi-frequency output power enjoys more personality and friendly environment
    Wireless data transmission between two DEVO F7 helps experience the training function
    Up to 15-model data can be saved
    DEVO F7 adjusting the gyro sensitivity makes hovering flight and fancy flight in an easy way
    Super large LCD display features direct and convenient setting
    Shape design accords with human engineering and provides comfortable holding
    Both the length and tension of the sticks can be adjustable
    DEVO F7 can be freely switched among Modes 1, 2,3 and 4
    DEVO F7 support Helicopter and Airplane. The Helicopter mode provides three flight modes, each of which can be freely set and its parameters can be personalizedly adjusted to meet the requirement for F3C or 3D aerobatic flight



DEVO F7 Specification:

    Encoder: 7-channel micro computer system
    Frequency: 2.4GHz DSSS
    Output power: 100mW
    Current drain: 500mA (100mWh)
    Transmitter power supply: 7.4V 800mAh
    Output pulse: 1000 - 2000Ms (1500 Neutral)
    Image receiving: 5.8G
    Channel selection: 8 channels

DV04 Specification:

    Pixel: 200 Mega pixel
    Definition: 420TVL
    Storage card: Micro SD
    Working voltage: 5V - 8V
    Resolution ratio: 1280*720
    Color: Color
    Working temperature: -40°C - +85°C
    System: PAL / NTSC
    White balance: Auto
    Weight: 14g
    Dimension: 44*36*10mm


TX5803 Specification:

    Power: 200mW
    Channel quantity: 4
    Channel: 2 / 4 / 6 / 8
    Image range: 300m
    Voltage: 7.4V or 11.1V Li-Po
    Helicopter class: 200 class or above


DEVO RX701 Features:

    Adopts 2.4GHz Direct Sequence Spread Spectrum (DSSS) that features fast reaction and strong anti-jamming protection
    Double reveiving circuits effectively assure the stability of receiving singal
    The Single Chip Micyoco as CPU provided super-strong analysing ability
    The receiver maintains the frequency and the ID memories when its changing a new battery pack with the transmitter powered on
    It can be customizedly set as fixed ID and automatic ID assignment

DEVO RX701 Specification: :

    Type: 2.4GHz 7 channels
    Sensitivity: -105dbm
    Frequency interval: 4M
    Receiver battery: 4.8-6V 1300mAh
    Weight: 11.6g
    Dimension: 43*28*16mm

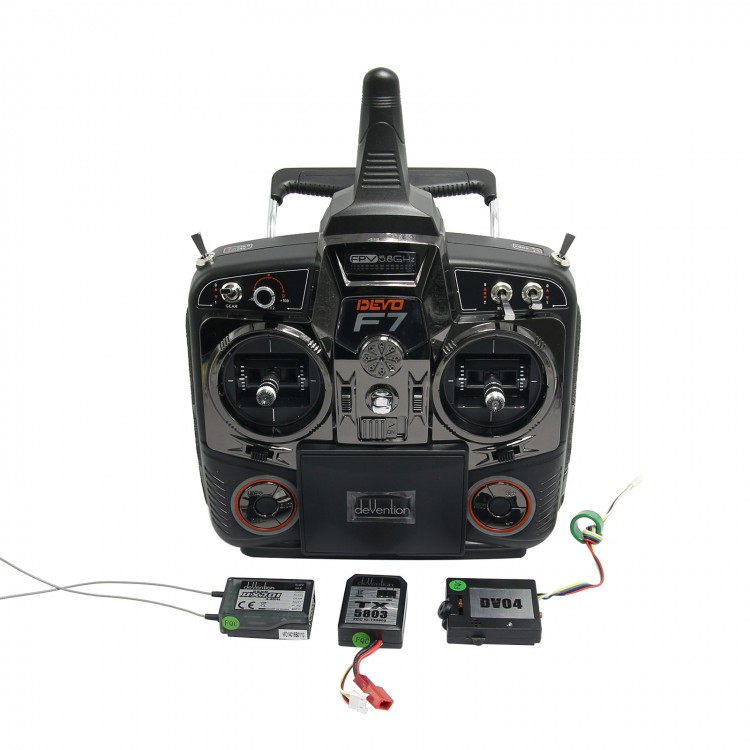

Items included :

    DEVO F7 transmitter
    No Battery Included
    DEVO RX701 receiver
    DV04 camera
    TX5803 emitter
    FP convertor cable
    Cables
    Instruction manual CD
