Walksnail Avatar VRX 1080P HD FPV Receiver + Nano Kit V3 with 9cm Coaxial Cable Support HDMI-compatible Output OSD Display

Walksnail Avatar VRX 1080P HD FPV Receiver + Nano Kit V3 with 9cm Coaxial Cable Support HDMI-compatible Output OSD Display

Features:
- Lightweight design, ultra-thin experience. Walksnail VRX only 83g and comes with 114x55x22mm size, which is easy to carry.
- Walksnail VRX adopts 4 antenna design, 2 directional antennas, the maximum transmission distance is 4km.
- 1080P/60FPS. Walksnail VRX adopts industry-leading H.265 encoding technology, which can provide a minimum delay of 22ms and a maximum resolution of 1080P. The HD picture quality takes you to experience the fun of flying a drone.
- HDMI-compatible output ensure you to enjoy uncompressed audio and video signals from the Walksnail HD system.
- Canvas Mode. Supports for betaflight full OSD display, supports betaflight, inav, kiss full OSD display, you can easily adjust the parameters you want by remote control.

Camera:
- Model: Avatar nano/Avatar camera
- Image sensor: 1/2.7'' inch
- Resolution: 1080P/60fps, 720P/120fps, 720P/60fps
- Ratio: 16/9, 4/3
- Lens: 2.1mm
- FOV: 170°
- Aperture: F2.0
- Shutter: rolling shutter
- Min.Illumination: 0.001Lux
- Weight: 3.5g/6g
- Dimensions: 14 x 14 x 17mm/19 x 19 x 22mm
- Coaxial cable: 90mm

VTX:
- Model: Avatar module
- Communication frequency: 5.725-5.850GHz
- Transmitter power (EIRP) FCC: <30dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
- I/O interface: JST1.0 x 6 (power in); JST1.0 x 4(USB)
- Mounting holes: 25.5 x 25.5mm
- Dimensions: 33 x 33 x 9.5mm
- Storage: 8G
- Recording: 1080P/720P
- Weight: 16g
- Operating temperature: -20 ~ 40℃
- Channels: 8
- Wide power input: 6V-25.2V
- Supported FC system: for Betaflight
- OSD: Canvas mode
- Latency average delay: 22ms
- Antenna: 2 (IPEX)

Goggles Antenna:
- Model: red bird
- Polarization: LHCP
- Bandwidth: 5.6GHz - 6.0GHz
- Average gain: 1.9dBi
- Radiation efficiency: ≥97%
- VSWR: ≤1.3
- Cross-Polar rejection: -15 to -30dB
- Connector: RP-SMA
- Dimension: H 24.8mm x R 15.3mm
- Weight: 4.2g

Avatar HD VRX:
- Model: Avatar HD VRX
- Communication frequency: 5.725 - 5.850GHz
- Transmitter Power (EIRP): FCC: <30dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
- I/O interface: HDMI-compatible, micro SD card slot, DC5.5x2.1mm
- HDMI-compatible output: 1080P/60fps, 720P/100fps, 720P/60fps
- Power input: 7-21V (2S-5S)
- SD Card Support: 256G
- System: Avatar HD system

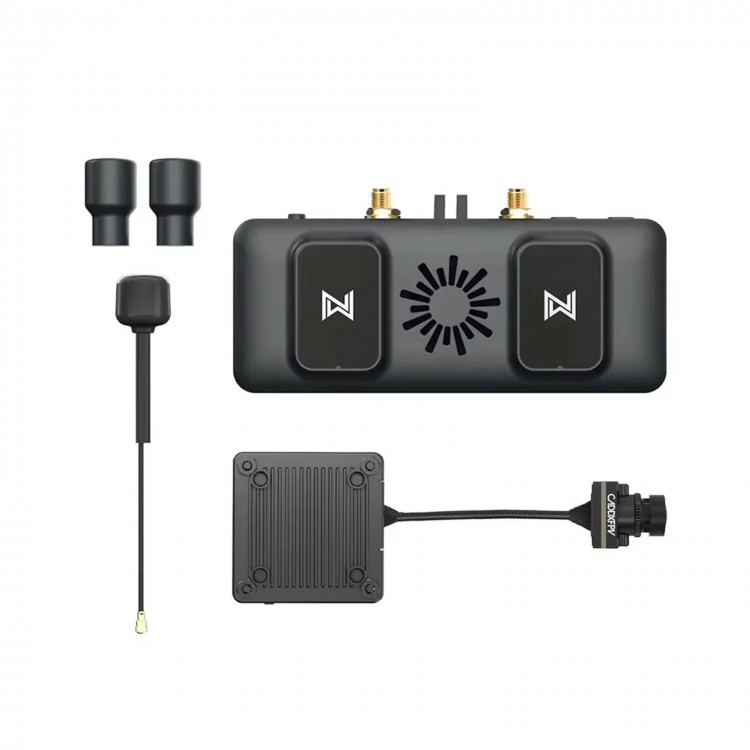

Package Included:
- 1 x Avatar VRX
- 1 x Nano Kit V3 (with 9cm Coaxial Cable)
