Wall Draw Robot Painting Robot For Arduino Maker Project Kit Polargraph Programming (Frame + Motor)

Wall Draw Robot Painting Robot For Arduino Maker Project Kit Polargraph Programming (Frame + Motor)

Introduction:
Drawing machine is a long-standing maker project, and the production of stepper motor mount and pen holder has always been a problem for programmers. Our shop has carefully designed a set of quite excellent plans.

28byj stepping motor is needed. It is small in volume, convenient in wiring and simple in program. It can be directly powered by that for Arduino without any problems such as driver, welding and power supply. Motor and main board should be integrated in a base, and winding frame on both sides can be pasted on the upper corner of any wall or drawing board. The main board can also be placed on the lower side of the screen without climbing.

How to draw complex graphics? Such as photos taken on mobile phones.
1. Not all photos can be drawn, only vector graphics can be drawn. Fortunately, some photos can be converted into vector graphics through software. (Support for Coreldraw, Inkscape and many other software to process) Or try a simple vector diagram first.

2. The vector diagram needs to be converted into a gcode file. (For Inkscape, Aspire, and many other software to make Gcode.) If you can't, you can also try some of the gcodes provided in our software package. Gcode is a text file that can be opened and edited with that for WordPad. Before use, you can browse the values in gcode. The units of these values are actual millimeters. If there are tens of thousands of values, it may be catastrophic to let the stepper motor rotate for a few hours before stopping. There are many specific gcode rules and usage methods online, so you can learn by yourself.

3. The Gcode file is saved in the memory card, for Arduino reads the file from the card, and parses the position coordinates into the action of the stepper motor, and draws the rope to drive the pen to draw. (The WallDraw.ino program in the program package can perform this step) (Note that the memory card is preferably in fat32 format. The ntfs format may not be able to read files, especially cards with a capacity of 4G or more. Note that the file name of the gcode file should be in the same program The definition is the same, usually "1.nc", if different, please change to the same name)

Package Included:

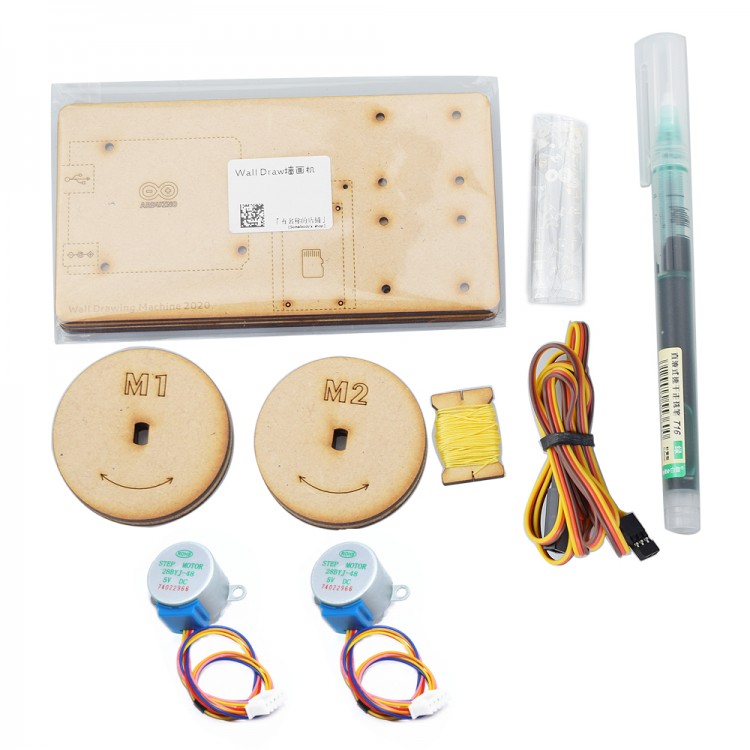

- 1 x Set of Frame + Motor

Note:
- This product has been updated, please refer to the latest version received. The product is unassembled.

For program and installation instructions, please download here: https://github.com/shihaipeng03/Walldraw
