Walnut Pi 1B Single Development Board Dual Band WiFi + Bluetooth5.0 H616 4-Core High Performance Processor

Walnut Pi 1B Single Development Board Dual Band WiFi + Bluetooth5.0 H616 4-Core High Performance Processor

Description:
- Walnut Pi is a cost-effective and fully functional card computer (SBC), compatible with Raspberry Pi in size. It is a highly powerful development board for Linux that allows you to access the internet, play games, learn programming, and create your own electronic products.

Features:
- The Walnut Pi system has been ported with the MicroPython library, which is a simplified implementation for Python3 language. Users can easily control peripheral devices such as GPIO, sensors, and expansion modules using for Python programming. It is very suitable for personnel familiar with Python to conduct software development on Walnut Pi.
- The Walnut Pi system has been ported with WiringPi. For WiringPi is a software package written in C language (early used for Raspberry Pi) that can be used for GPIO pin control, serial communication, SPI communication, and I2C communication functions of Walnut Pi. It is very suitable for people familiar with C/C++to conduct software development on Walnut Pi.
- The Walnut Pi desktop system is pre-installed with rich software applications, ready to use upon startup. Including for C, for Python programming software, for Google Chrome, for LibreOffice, image viewer, VLC media player, screenshot software, etc.
- Walnut Pi 3.5-inch high-speed SPI screen, with a speed of up to 80MHz and a frame rate of up to 20fps. It can achieve desktop display, for QT and other applications.

Specification:
- CPU: H616 64bit 4-core high performance Cortex-A53 processor, 1.5GHz
- GPU: for Mali G31 MP2, supports for OpenGL ES 1.0/2.0/3.2, for OpenCL 2.0
- Internal memory: 1GB (512M DDR3 x 2)
- Storage: MicroSD support up to 512G, reserved SPI Flash (bare PCB)
- Wireless network: dual band WiFi (2.4G & 5G) + Bluetooth 5.0
- Wired network: 100Mbps Ethernet port
- Audio output: 3.5mm audio port
- Video output: MicroHDMI 2.0a, support 4K at 60fps
- Peripheral:
  USB 2.0 x 3
  IR receiving x 1
  Button x 1
  LED x 1

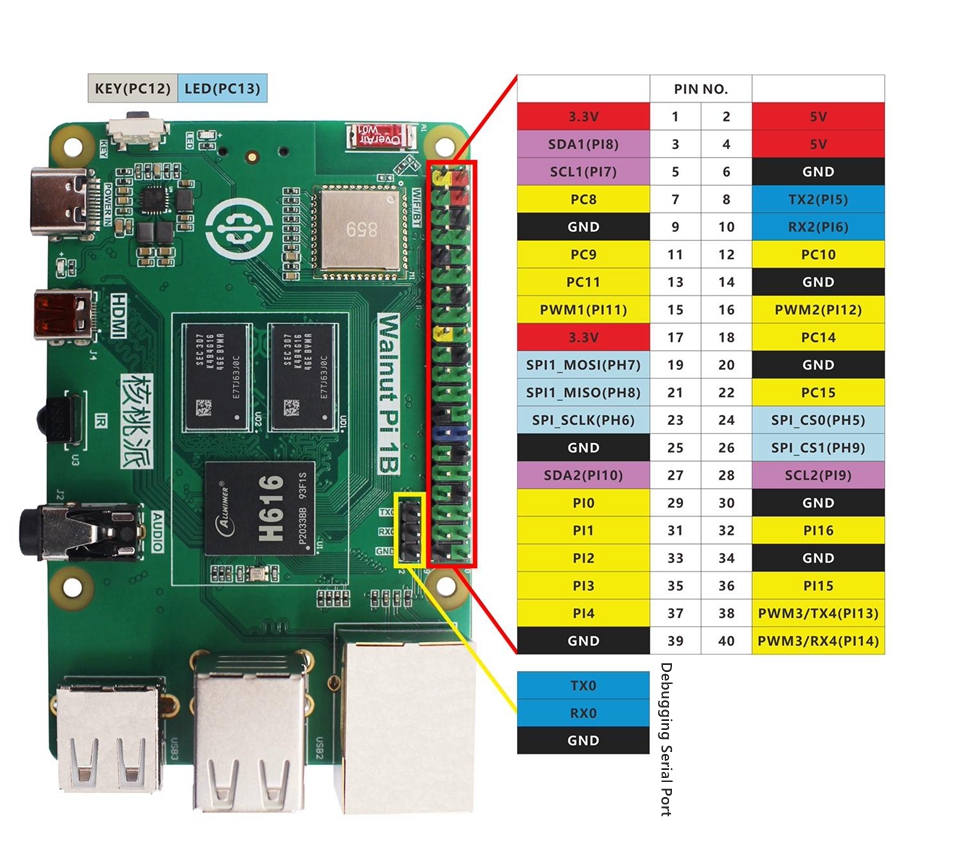

  40Pin GPIO (compatible with Raspberry Pi)
  3P Pin UART (serial port) debugging
- Power: Type-C interface 5V/3A input

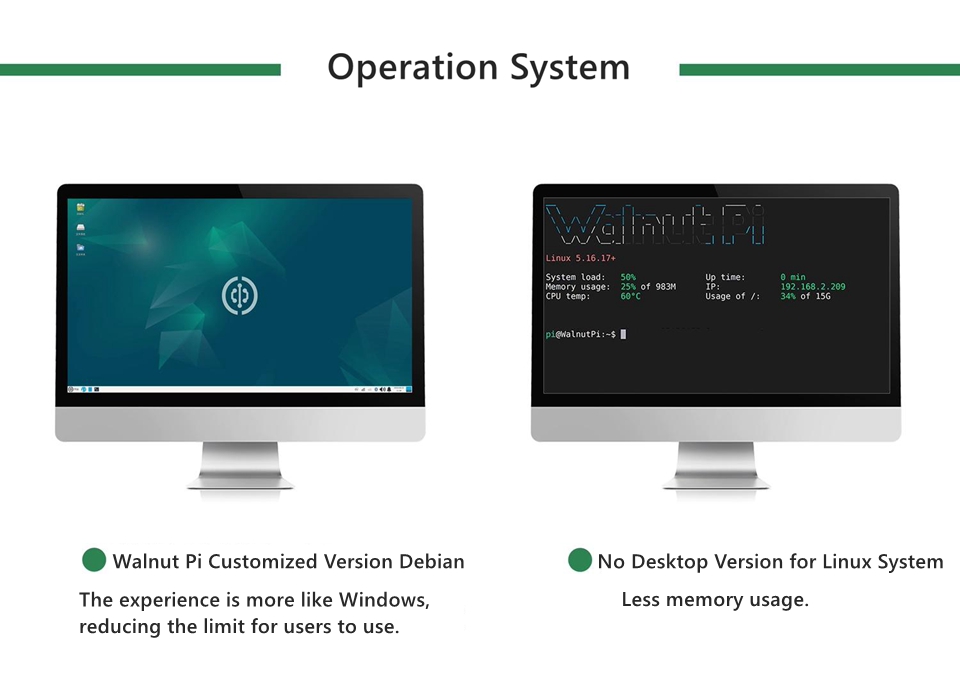

- Operation system: Walnut Pi customized version Debian (for Ubuntu, for Android adaptation in progress)

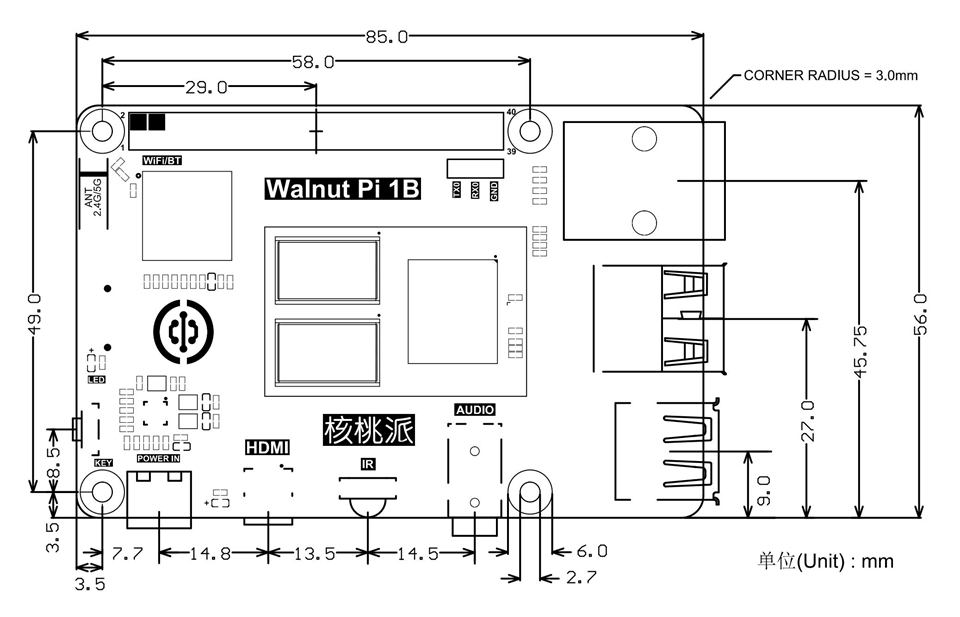

- PCB size: 85 x 56 x 21mm
- Weight: 38g (bare board)

Note:
- Running Walnut Pi requires a motherboard, power supply (not included), and SD card (not included).

Package Included:
- 1 x Walnut Pi 1B Development Board
