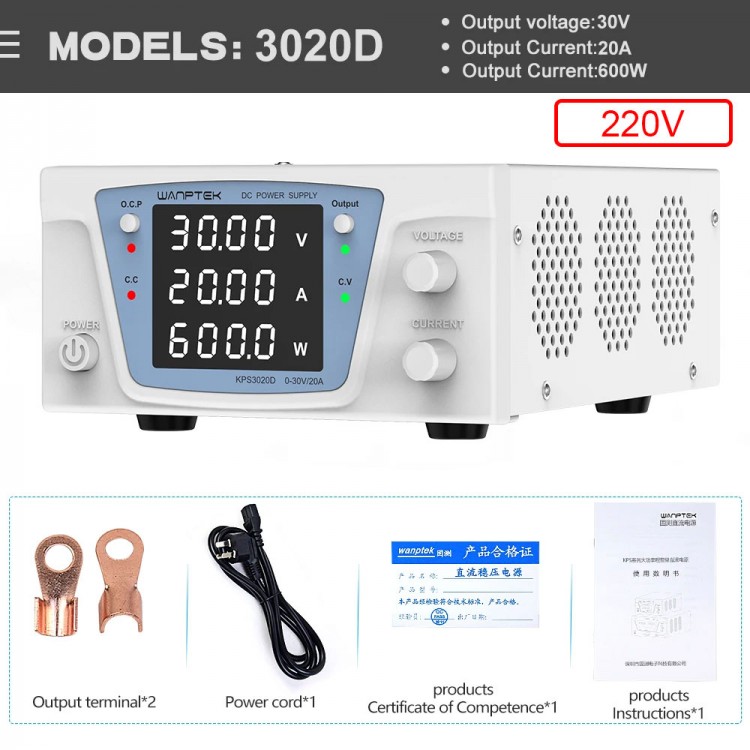

WANPTEK KPS3020D (30V 20A) 600W DC Power Supply Adjustable Power Supply (220V) for Aging Tests

WANPTEK KPS3020D (30V 20A) 600W DC Power Supply Adjustable Power Supply (220V) for Aging Tests

Features:
- High-power adjustable power supply
- Stable at full load, short-circuit protection alarm, automatic memory, enough power and low noise
- Multiple protection functions: OVP (over-voltage protection), OCP (over-current protection), OPP (overload protection), OTP (over-temperature protection) and short circuit protection
- OCP short circuit alarm: When the load equipment is short-circuited, the power supply will stop the output, and there will be a beep to prompt, which can effectively protect the load equipment. When the external short circuit is removed, the power supply will automatically resume output
- Sturdy and durable to use
- Constant current and constant voltage
- Intelligent fan for heat dissipation, low noise, and long lifespan
- Encoder adjustment: Press the encoder switched to shift to the left. Turn the knobs clockwise to increase the value. Rotate counterclockwise to reduce the value. Preset voltage and current, digital adjustment and no need for short circuit
- Works stably at full load
- Low ripple and low noise: With small voltage fluctuation and stable output, it can effectively reduce noise interference in work and make it easy for you to work
- Current and voltage can be preset and adjusted
- High precision 4-digit display: The digital display is accurate, and the four-digit display makes it easy for you to use. Four-digit LEDs digitally display voltage and current
- Automatic memory: Turn it on again, and you can use the settings when the power supply was turned off (or powered off) previously
- The top with a handle for easy carrying
- Application: Widely used in R&D tests, production lines, school experiments, computer maintenance, product aging tests, etc.

Specifications:
- Model NO.: KPS3020D
- Product size: 210mm x 160mm x 80mm/8.3" x 6.3" x 3.1"
- Net weight: 2kg/4.4lb
- Output voltage: 0-30V
- Output current: 0-20A
- Output power: 600W
- Auxiliary functions: output switch and OCP short-circuit protection switch
- Operating temperature: 0°C~40°C, relative humidity: <80%RH
- Storage temperature: -10°C to 70°C, relative humidity: <70%RH
- Constant voltage status:
  * Voltage stability: ≤0.5%+3mV
  * Load stability: ≤0.5%+3mV
  * Ripple noise: ≤0.5% V P-P
- Constant current state:
  * Current stability: ≤0.5%+3mA
  * Load stability: ≤0.5%+3mA
  * Ripple noise: ≤0.5% A P-P
- Protection modes: over-voltage protection, over-current protection, over-temperature protection and short-circuit protection
- Display: Four-digit digital tube shows voltage and current
- Display accuracy: 0.5% + 5-digit
- Display resolution: Voltage: 00.01V and current: 00.01A (>100V: 0.1V; >100A: 0.1A)

Package Included:
- 1 x Power supply
- 1 x Power cable
- 1 x Instructions
- 2 x Output terminals
- 1 x Product quality certificate

Packaging Details:
- G.W.: 2.5kg
- Packaging size: 300mm x 210mm x 135mm
