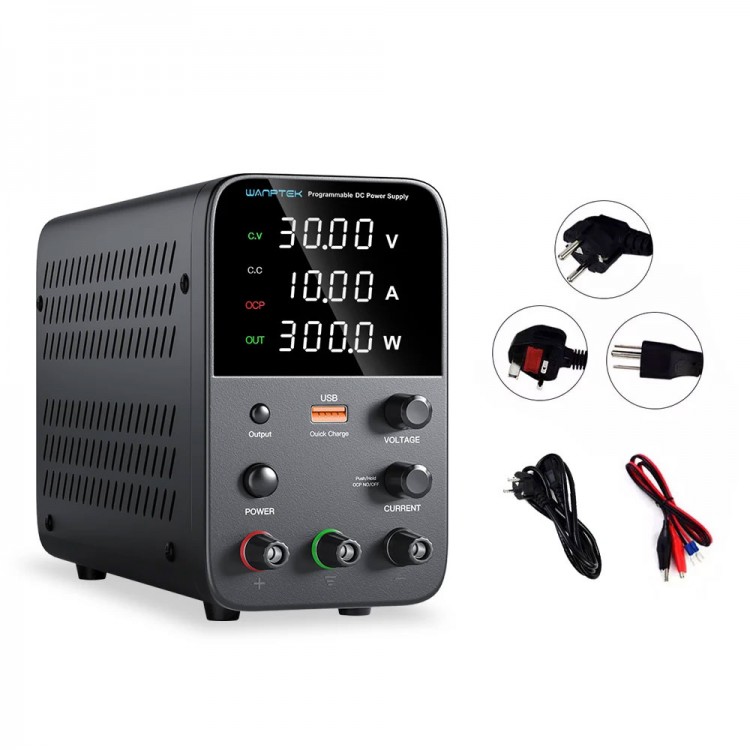

WANPTEK WPS3010H (30V 10A) Programmable DC Power Supply Regulated Power Supply for Laptop Repair

Availability: In stock, usually dispatched in 1 business day

  • Price:$94.33
  • Price in reward points: 943 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $92.44 $90.56 $87.73 $83.95 Contact US
Quantity:

WANPTEK WPS3010H (30V 10A) Programmable DC Power Supply Regulated Power Supply for Laptop Repair

Description:

WPS3010H is a high-precision programmable DC power supply with three windows and four digits display, which can simultaneously display voltage, current and power. It is widely used in mobile phone repair, computer repair, battery charging, school teaching and production line use. Encoders allows for continuous adjustment of output voltage and current between 0 and nominal values, and preset values can be displayed for easy use and adjustment. This device has USB fast charging function and supports multiple fast charging protocols. With perfect OVP and OCP short-circuit protection circuits, this product also provides upper computer communication function (optional), making it convenient for users to connect the power supply to PC using USB connection cables. It can also achieve USB to RS232/RS485 interface through different conversion cables, which can control the use of power through software interface and achieve remote operation. The stability and ripple coefficient of the power supply are very good. It has a small size, beautiful design, convenient operation, and can work for a long time at full load, which is deeply loved by users.

Features:
- Program control
- Small size, light weight and sufficient power
- Automatic switching of constant voltage and current
- Three sets of four-digit LED displays for voltage, current and power, with high accuracy
- Encoders can set the voltage and current, and the set values can be displayed in advance
- OCP protection and short circuit stops output
- The USB fast charging function supports multiple fast charging protocols
- Optional USB communication interface, controlling power through PC for remote operation
- Temperature controlled fan for heat dissipation, with low noise and long lifespan

Application Areas:

1. Production line testing
2. Repair mobile phones, computers, and appliances
3. Product aging and electroplating
4. Battery charging
5. Laboratory, scientific research, and teaching
6. All other occasions that require a DC stabilized power supply

Product Parameters:
Overall parameters:
- Model: WPS3010H
- Output power: 300W
- Output voltage: 0~30V
- Output current: 0~10A
- Auxiliary functions: USB fast charge, output on and off, USB host computer communication (Optional)
- Protection mode: OVP (over-voltage protection), OCP (over-current protection), over-temperature protection, and short circuit alarm stops output

Working environment:
- Input voltage: AC 230V/115V±10%; 50Hz/60Hz
- Working temperature: 0℃~40℃; relative humidity: <80%RH
- Storage temperature: -10℃ to 70℃; relative humidity: <70%RH

Constant voltage CV:
- Voltage stability: 0.5%±3mV
- Load stability: 0.5%±3mV
- Ripple voltage: ≤0.5% Vp-p
- 0 to rated voltage continuously adjustable

Constant current CC:
- Current stability: 0.5%±3mA
- Load stability: 0.5%±3mA
- Ripple current: ≤0.5% Vp-p
- Recovery time: ≤500μS
- Temperature coefficient: ≤100ppm/℃
- 0 to rated current continuously adjustable

Display:
- 0.4" four-digit digital tube with white light, and three groups of display
- Display accuracy: 0.5%±digits
- Display resolution: 0.01V for voltage and 0.001A for current

Package Included:
- 1 x Power supply
- 1 x Power cable
- 1 x Output cable
- 1 x Instructions

Packaging Details:

- G.W.: 1.55kg

Note:
- Battery is not included in the package.
