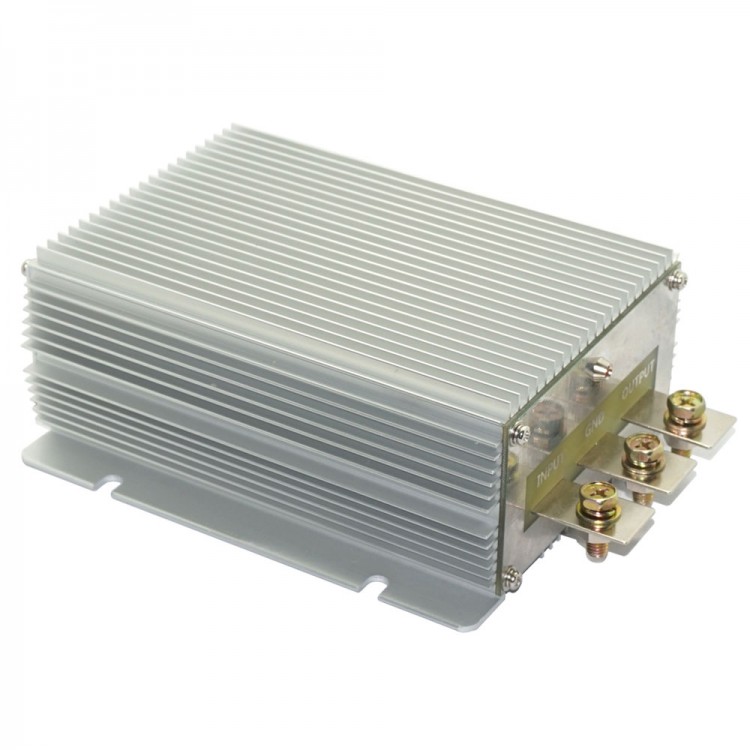

IP68 Waterproof 24V to 12V 720W Buck Power Converter 60A DC/DC Step-down Voltage Regulator Module
Specification:
- Die-Cast Aluminum Housing with epoxy sealed containers
- Anti-shock protection
- Light weight and ultra-compact size
- More than 90% power conversion efficiency
- Built-in over/under-voltage input, overload, over-heat and short circuit fully protection
- Auto-recovery when converter is back to normal operating
- Stable and reliable performance
- Easy and simple installation
Specifications:
- Input voltage: 24V DC
- Input voltage range: 18~ 36V DC
- Output voltage:12V DC
- Converter effeciency:up to 96%
- Output current: 60A (max), 720W
- Operating temperature: -30°C ~ +80°C
- Construction: Die-cast aluminum casing, Epoxy sealed potting
- Waterproof degree: IP68
- Product size:150x127x63mm
- Mounting hole distance:88mm
Package included:
- 1 x Waterproof 24V to 12V 720W Buck Power Converter 60A DC/DC Step-down Voltage Regulator Module
