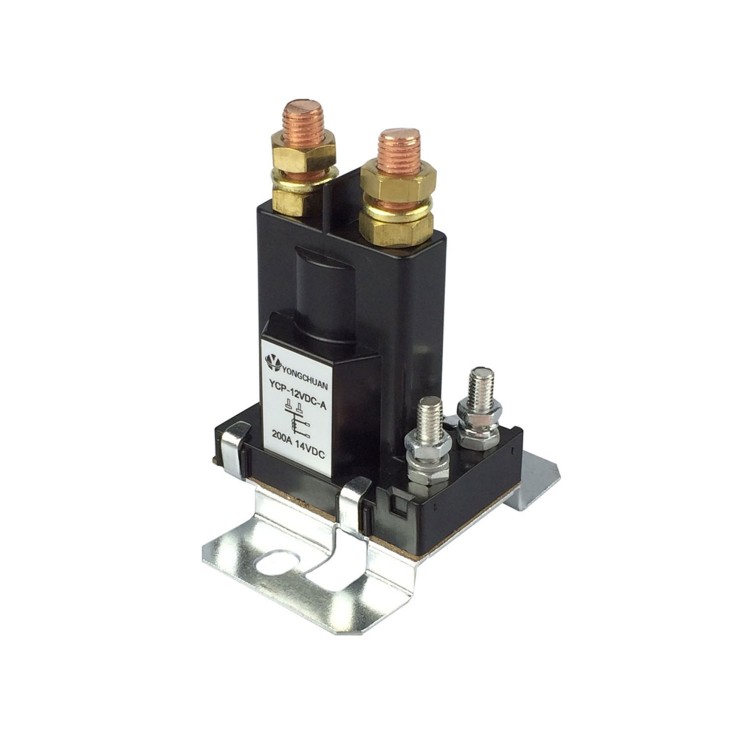

Features:
- Waterproof
- Big contactor load:200A
- Contactor: a group of bridge normally open, double breakpoints
Contactor parameters:
- Contactor form: 1A (SPNO)
- Contactor material: Silver Alloy
- Contactor load:
Load Property | Continues current | Surge Current (A) | Electric lifespan | Contactor material |
Conventional resistive load | 200A 14VDC | 400 | 50000 | Silver Alloy |
| Motor Load | 100A 48VDC | 400 | 250000 | Silver Alloy |
Coil parameters
- Coil Voltage : Rated 12V (max 13.2) /Rated 24V (max 26.4), Rated 48V (max 52.8)
- Coil Resistance (ohm): 35 @12V/95@24V/370@48V
- Coil power: 4W a@ 12V/6W @ 24V and 48V
Specification:
- Dielectric strength:500V
- weight:170.5g
- size: 7.5*5.4*8.26mm
