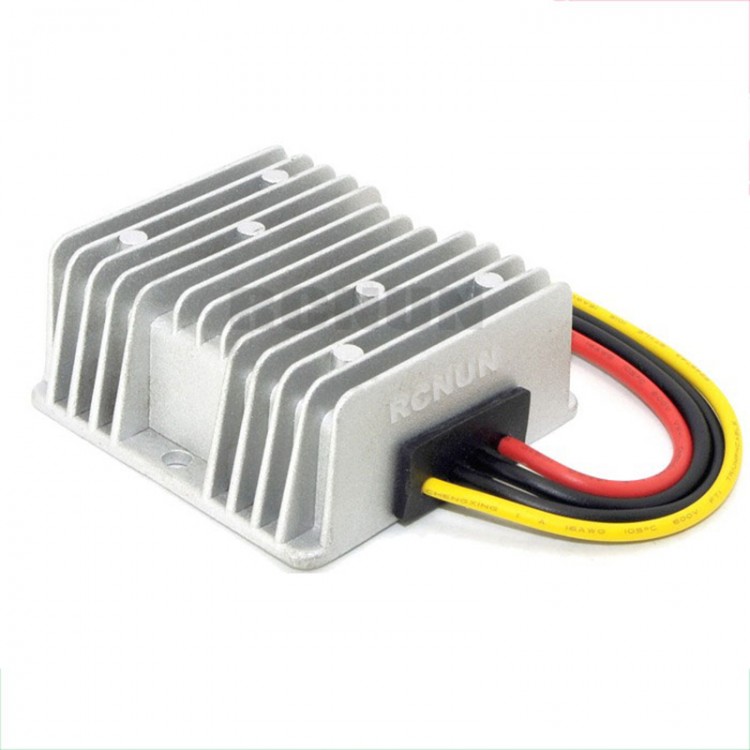

Waterproof Car Voltage Stabilizer DC-DC Voltage Converter Buck Boost Module 9-20V to 12V 12A 144W
Features:
- Non-Isolated DC to DC voltage stabilizer module
- 100% full stable output current
- 100% Imported electronic parts for high conversion efficiency up to 90 to 92%
- Organic silica gel potting for IP68 protection grade, making it waterproof, dustproof and shockproof
- Die-cast aluminum housing for greater heat dissipation performance; Its compact size for easy installation
- Multiple Protections: Short-Circuit protection, over-voltage, over-temperature, and short-circuit protections
- Durable: In light of CE, RoHS standards, it is designed for up to 100, 000 hours of life span
Note: Reverse connection is forbidden or the module will be damaged.
Parameters:
- Model Number: RC9-20S1212
- Input Voltage: DC 9-20V
- Output Voltage: DC 12V±1%
- Output Current: 12A
- Output Power: 144W
- No-Load Current: ≤25mA
- Ripple: ＜150mV
- Efficiency: 90 to 92%
- Module Type: DC-DC Non-Isolated Power Module
- Protective Level: IP68
- Operating Temperature: -35℃ to 80℃
- Installation Wire: 16.5 cm (L)
- Size: 74 x 74 x 32mm (L*W*H)
- Installation Hole: 5.3mm (Diameter)
- Hole Spacing: 65mm
- N.W.: 300g
Wiring:
Input Terminals:
- Red for Power Supply +
- Black for Power Supply –
Output Terminals:
- Yellow for +
- Black for -
Package Included:
- 1 x DC-DC Voltage Converter Module
