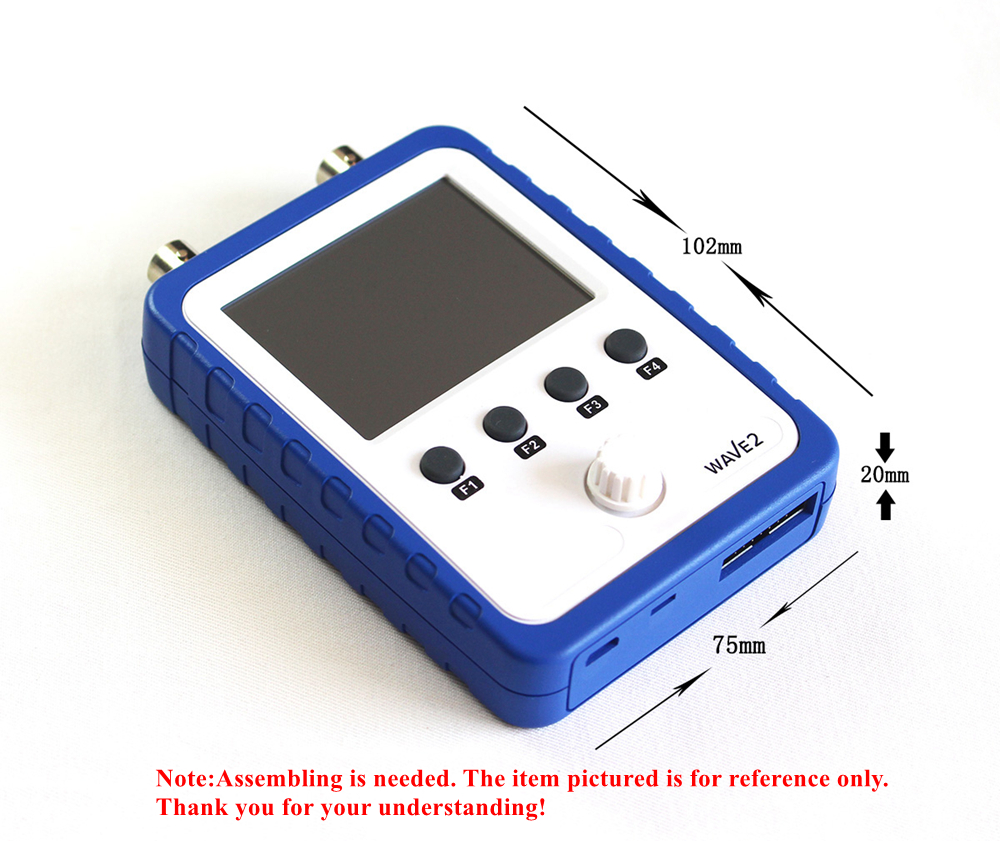

WAVE2 DIY Kit Digital Oscilloscope 2-Channel 0-200KHz Signal Generator Unassembled 2.4" Touch Screen

WAVE2 DIY Kit Digital Oscilloscope 2-Channel 0-200KHz Signal Generator Unassembled 2.4" Touch Screen

Features:
- X-Y channel display: WAVE2 is a dual-channel oscilloscope that can display the relationship between two signals departments, such as X-Y graphics, for Lissajous graphics, etc.
- Built-in signal generator: In addition to being a dual-channel oscilloscope, WAVE2 also has a built-in 0-20KHz (sine wave) DDS dual-channel function signal generator
- Controlled via serial port: The oscilloscope and signal generator can be controlled through serial commands, which is easy to integrate with user system for automatic measurement
- Data transmission: The measurement data of WAVE2 can be output from the serial port in CSV format, which is convenient for uploading to PC for processing
- Color touch screen: WAVE2 uses a 2.4-inch TFT color touch screen, which is more conducive to carrying and working out
- CE certification: WAVE2 has passed the CE certification and the product is reliable

Specifications:
Oscilloscope:
- Analog bandwidth: 0-200KHz
- Number of channels: 2 channels
- Vertical sensitivity: 5mV/Div-20V/Div
- Sensitivity error: <5%
- The highest real-time sampling rate: 1Msps (each channel)
- ADC accuracy: 12Bit
- Record length: 1024 points
- Input impedance: 1MΩ
- Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
- Coupling mode: DC/AC
- Horizontal time base range: 10us/Div-500s/Div
- Trigger mode: automatic, regular and single
- Can be triggered by rising or falling edge
- Trigger source: CH1, CH2, external. External trigger voltage range: 0-15V
- The waveform display can be frozen at any time (HOLD function)
- Comes with 3.3V square wave test signal
- Display parameters: frequency, period, duty cycle, maximum, minimum, average, peak-to-peak value and effective value of voltage
- Save/recall the waveform, the waveform does not disappear when turned off
- Save/Up to 4 sets of collected waveform data
- Serial output of collected data
- Serial port format: LVTTL, 115200bps, 8N1

Signal Generator:
- Number of channels: 2 channels
- Output signal types: sine wave, square wave, sawtooth wave, step wave
- Frequency range: 0-20KHz (sine wave)
- Amplitude range: 0-3V (peak)
- Duty cycle: 0-100%
- Phase: -360 to 360 degrees
- Offset: 0V or +3.3V

Application:
- E-learning training and competitions
- Electronic enthusiasts can also use it to practice and enjoy the fun of DIY
- Production testing: The kit can be used as a module to be applied to the testing equipment of certain production lines for data testing
- Audio equipment and circuits, electronic toys and remote control models, overhaul of automotive electronic circuits
- On-site maintenance of ordinary electronic equipment (inverter air conditioner or industrial inverter power supply, AC/DC switching power supply or inverter, etc.)
- Applications that need to observe slow signal changes (relay and switch contact jitter, temperature sensor characteristic measurement)
- And the like

Package Included:

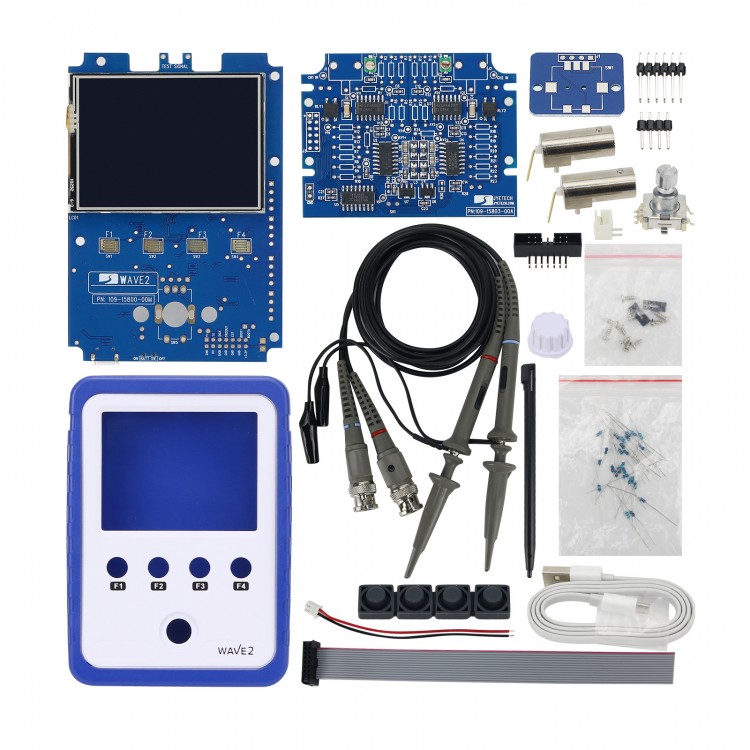

- 1 x Set of Digital Oscilloscope Signal Source

Note:
- Assembling is needed. Circuit welding is required.
- It can be powered by USB or battery (3.7-5V, 300mA).
